High-Pressure Water Jet Pump Jet-60A 0.5hp 220v 50hz For Booster Water

China High-Pressure Water Jet Pump Jet-60A 0.5hp 220v 50hz For Booster Water supplier
High-Pressure Water Jet Pump Jet-60A 0.5hp 220v 50hz For Booster Water supplier High-Pressure Water Jet Pump Jet-60A 0.5hp 220v 50hz For Booster Water supplier

Large Image :  High-Pressure Water Jet Pump Jet-60A 0.5hp 220v 50hz For Booster Water

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: CE/SGS/ISO
Model Number: JET-60A-2

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons , overall size:480x210x220mm/pc, N.W.: 12kgs
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Output: 0.5HP / 0.37KW Flow Max: 42 L/Min
Head Max: 40M Suction Max: 9M
Inlet/Outlet: 1"x1" Speed: 2850RPM
Product Name: Jet Pump Application: Pumping

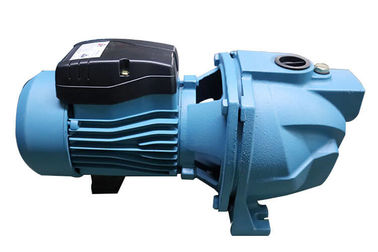

High-Pressure Water Jet Pump Jet-60A 0.5hp 220v 50hz For Booster Water




Description:



The JET-60A-2 is single stage, self-priming “jet” pumps with cast-iron bodies. Sizes 0.37kW have impellers in thermoplastic and motor supports in aluminum.



Single phase motors incorporate an overload protection device. They are designed for pumping clean water.



They should not be allowed to run dry. Maximum recommended suction lift, when primed, is 8 meters



The pumps offer a wide pressure range for industrial boosting purposes, while their low operating noise, low power consumption also make them popular for a variety of domestic and horticultural applications.



Technical data:



Model Output A R.P.M. Q.Max H.Max S.Head Pipe Dia LxWxH N.W.
HP / KW 1~220V (l/min) (m) (M) (mm) (Kg)
JET-60A 0.5 / 0.37 1.6 2850 42 40 9 1"x1" 480x210x220 11.9
JET-80A 0.75 / 0.55 3.6 2850 46 45 9 1"x1" 480x210x220 15.9
JET-100A 1 / 0.75 4.8 2850 52 50 9 1"x1" 480x210x220 16.9




Applications:



1. Water supply in family life

2. Water supply from well

3. Tap water pressure boosting

4. Garden irrigation

5. Vegetable shed water supply

6. Industrial and mining enterprises

7. Aquaculture industry

8. other occasions



Advantages:


100% high-quality copper,100% output
Cold -rolled silicon steel sheet by a high-speed punching machine
Good quality bearing, the surface more smooth, the dimension more precise
Thermal protector
One year warranty





Features:



1.JETL Series pump is constituted with a clean water pump, non-return valve, and air-water separation room, which located

on the upside of the pump body.

2. During operating, it is no need to use a foot valve, the only thing that you should do is just leave some water in the pump

body.

3. After a few minutes' running, the water will be sucked out relying on the pump body itself.





Structural characteristics:



Main Specification Standard Optional
Transmission medium Clean Water
Pump body Cast Iron
Impeller Brass Noryl PPO
Motor housing Aluminum
Stator&Rotor 1.Cold -rolled silicon steel sheet by the high-speed punching machine. 2. 100% high-quality copper wire
Front cover Cast Iron
Bearing Chinese Best Quality Bearing NSK, SKF or on request
Mechanical seal Graphene/Ceramic Silicon Carbon
Shaft Carbon Steel Stainless Steel
Insulation Class B Class F
Protection IP44 IP54
Voltage 220-240V Single Phase On Request
Frequency 50HZ 60HZ
Thermal protection No Yes
Automatic Pressure Control System No Yes
Cooling Type External Ventilation
Max. Suction lift 9M
Max. Fluid Temperature +60℃
Max. Environment Temperature +40℃
Installation Horizontal
Connect Type Thread
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC

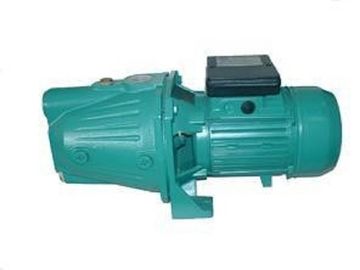

High-Pressure Water Jet Pump Jet-60A 0.5hp 220v 50hz For Booster Water



Guarantee:





Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.



Our service:



1. Directly factory sale

2.Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.
