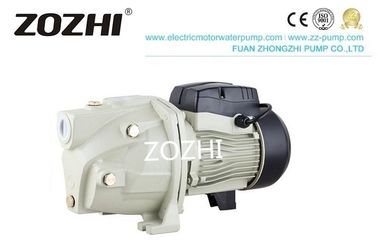

Low Noise Self Priming Transfer Pump JET/JETS/JSW Series 0.5-1Hp High Suction Stroke

China Low Noise Self Priming Transfer Pump JET/JETS/JSW Series 0.5-1Hp High Suction Stroke supplier
Low Noise Self Priming Transfer Pump JET/JETS/JSW Series 0.5-1Hp High Suction Stroke supplier

Large Image :  Low Noise Self Priming Transfer Pump JET/JETS/JSW Series 0.5-1Hp High Suction Stroke

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: CE/SGS/ISO
Model Number: JET/JETS/JSW series

Payment & Shipping Terms:

Minimum Order Quantity: IPC
Price: negotiated
Packaging Details: Packed in cartons or pallets
Delivery Time: 25 working days after received your payment
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Item Name: Self Priming Pump Head Max: 40 M
Flow Max: 65L/min Pipe Siza: 1"x1"
RPM: 2850 Power: 0.5-1HP

Self-Priming Pump JET/JETS/JSW series 0.5-1Hp New Design with low noise



Self-Priming Pump Description



The self-priming water pump is a fluid power pump. The fluid power pump has no mechanical transmission and mechanical working components. It uses another working fluid energy as a power source to deliver low-energy liquids, which is safe for pumping flammable and explosive materials. A jet vacuum pump is a device that uses a high-speed jet through a nozzle to evacuate gas in a container to obtain a vacuum, also known as a jet vacuum pump. In chemical production, the purpose of generating a vacuum is often used.



The new design self-priming pump is a high-efficiency jet pump that has good suction even with air bubbles. The pump consists of a single impeller, a centrifugal pump and a nozzle with a nozzle. It is easy to install and use, compact, portable, high efficiency, high suction stroke, etc. It is widely used in ordinary wells and steel pipe water intake in high water level areas and pressurized water supply in high-rise buildings. It is equipped with an automatic self-priming pump to achieve automatic water supply or The effect of supercharging. Suitable for water supply in-home facilities, small-scale agricultural watering and where self-priming is required.



Self-Priming Pump Application



The JET series is composed of a centrifugal pump and a jet pump (injector). The centrifugal pump is generally installed on the ground. The jet pump is installed under the well. The working principle is that the normal pressurized liquid passes through the nozzle to cause low- pressure so that the liquid in the well is sucked into the centrifugal pump. The wellhead is discharged through a centrifugal pump. Because the JET series can pump water from wells 10 meters to 50 meters deep (and any other self-priming pump and clean water pump will not exceed 10 meters) and will not be overloaded,The electric water pump suitable for clean water and non-corrosive liquids, it is widely used in wells in low water areas, factories,domestic water, small irrigation systems, pressurization, flushing, and water transfer.

self-priming pump





Self-Priming Pump Data

Model Power Current Capacitor H.Max Q.Max Pipe Size
(HP) (W) (A) (UF) (m) (L/min) (m)
JET60-L 0.5 370 2.9 12 30/40 65/45 1”x1”
JET80-L 0.75 550 3.5 15 34/45 65/50 1”x1”
JET100-L 1 750 4.5 20 42/52 65/50 1”x1”
JETS-60 0.5 370 2.9 12 30/40 65/45 1”x1”
JETS-80 0.75 550 3.5 15 34/45 65/50 1”x1”
JETS-100 1 750 4.5 20 42/52 65/50 1”x1”
JET60-P 0.5 370 2.9 12 30/40 65/45 1”x1”
JET80-P 0.75 550 3.5 15 34/45 65/50 1”x1”
JET100-P 1 750 4.5 20 42/52 65/50 1”x1”
JSW60 0.5 370 2.9 12 30/40 65/45 1”x1”
JSW80 0.75 550 3.5 15 34/45 65/50 1”x1”
JSW100 1 750 4.5 20 42/52 65/50 1”x1”



Self-Priming Pump Construction

Pump

Pump Body: Cast iron/Brass/Stainless steel
Impeller: Brass/P.P.O

Mechanical Seal: Carbon

Diffuser Nozzle:P.P.O

Jetpipe:P.P.O
DIEEUSSOR:P.P.O/Cast Iron

Motor
Single Phase
Heavy-Duty Continuous Work
Motor Housing: Aluminum
Shaft: Carbon Steel / Stainless Steel
Insulation: Class B / Class F
Protection: IP44 / IP54
Cooling: External Ventilation

self-priming pump JET pump



Self-Priming Pump Precautions

A. Before use, check whether the bolts in the electric pump are loose or not. The cable and plug are intact. The insulation resistance of the motor should be greater than 2 megohms.

B. In order to prevent electric shock, it is necessary to install corresponding safety measures such as leakage circuit breaker or electric shock protection device and reliably ground

C. The voltage usage range is between 180V and 230V, otherwise, the service life of the motor will be shortened or burned out. If the electric pump is used far away from the power supply, the power transmission line should be properly thickened, otherwise, the voltage will drop and it will not work.



Low Noise Self Priming Transfer Pump JET/JETS/JSW Series 0.5-1Hp High Suction Stroke



HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
PRESSURE SWITH PRESSURE SWITCH Low Noise Self Priming Transfer Pump JET/JETS/JSW Series 0.5-1Hp High Suction Stroke
water pump water pump mechnical seal

guarantee:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.





Our service:

1). We are very glad that customer gives us some suggestion for price and products.

2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.

3). Offer our customers the lowest prices. Streamline the buying and paying processes.

4). Deliver goods to our customers all over the world with speed and precision.

5). Ensure the excellent quality of our products.

6). 12 months FREE warranty.

7). Accept OEM



FAQ

1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.

2). Q: Are you a factory or a trading company?
A: we make water pump, motor, alternator, and diesel generator since 2006.

3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEM are welcome!

4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.

5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.

6). Q: How about the warranty?
A: 1 year from shipped on board date.
