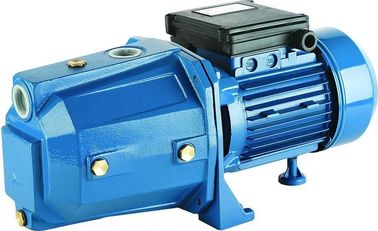

Electric Hydro Jet Pump 1hp Self Priming Jet Pump / Water Suction Pump

China Electric Hydro Jet Pump 1hp Self Priming Jet Pump / Water Suction Pump supplier
Electric Hydro Jet Pump 1hp Self Priming Jet Pump / Water Suction Pump supplier Electric Hydro Jet Pump 1hp Self Priming Jet Pump / Water Suction Pump supplier Electric Hydro Jet Pump 1hp Self Priming Jet Pump / Water Suction Pump supplier

Large Image :  Electric Hydro Jet Pump 1hp Self Priming Jet Pump / Water Suction Pump

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: CE/SGS/ISO
Model Number: JET-100L

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons , overall size:480x210x220mm/pc, N.W.: 17kgs
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Product Name: Jet Pump Application: Pumping
Output: 1HP / 0.75KW Flow Max: 52 L/Min
Head Max: 50M Suction Max: 9M
Inlet/Outlet: 1"x1" Speed: 2850RPM


Electric Hydro Jet Pump 1hp Self Priming Jet Pump / Water Suction Pump

Description:

Zhongzhi JET-L series self-priming pumps are highly efficient jet pumps with excellent suction even when there are air bubbles. The pump consists of a single impeller, centrifugal pump and a jet pipe with a nozzle. It can work for a long time and product little noise. It is protable and has much use.





Pump



Pump Body: Cast iron/Brass/Stainless steel
Impeller: Brass/P.P.O

Mechanical Seal:Carbon/Ceramic/Stainless steel

Diffuser Nozzle:P.P.O

Jetpipe:P.P.O
DIEEUSSOR :P.P.O/Cast Iron




Motor
Single Phase
Heavy Duty Continuous Work
Motor Housing: Aluminum
Shaft: Carbon Steel / Stainless Steel
Insulation: Class B / Class F
Protection: IP44 / IP54
Cooling: External Ventilation
Construction and safty standards in compliance with IEC

220V/50HZ.60HZ 110V/50HZ.60HZ 220v.110v/50hz.60hz are avaliable on request.



Technical data:

Model Output A R.P.M. Q.Max H.Max S.Head Pipe Dia LxWxH N.W.
HP / KW 1~220V (l/min) (m) (M) (mm) (Kg)
JET-100L 1 / 0.75 4.8 2850 52 50 9 1"x1" 480x210x220 17


                                                                          Other voltages and frequencies available on request
Applications:
 These series pumps are particularly suitable for water supplying in domestic installations, small-scale agriculture watering and where a self-priming operation is demanded.It can be used at any places where water pressure needs to be boost.


Advantages:

1. We offer one year warrantly.
2. the copper is 100% high-quality copper.
3. Cold -rolled silicon steel sheet by a high-speed punching machine
4. The bearing is good-quality,the surface is smooth and the dimension is precise.
5. The thermal protector is considerate.

Working conditions:

  1. Suction head up to 9m
  2. Liquid temperature up to +60℃
  3. Ambient temperature up to +40℃
  4. Max. Working pressure: 10bar
  5. Voltage fluctuation should not exceed 10% of the rated value.

Structural characteristics:


Electric Hydro Jet Pump 1hp Self Priming Jet Pump / Water Suction Pump



Main Specification Standard Optional
Transmission medium Clean Water
Pump body Cast Iron
Impeller Brass Noryl PPO
Motor housing Aluminum
Stator&Rotor 1.Cold -rolled silicon steel sheet by the high-speed punching machine. 2. 100% high-quality copper wire
Front cover Cast Iron
Bearing Chinese Best Quality Bearing NSK, SKF or on request
Mechanical seal Graphene/Ceramic Silicon Carbon
Shaft Carbon Steel Stainless Steel
Insulation Class B Class F
Protection IP44 IP54
Voltage 220-240V Single Phase On Request
Frequency 50HZ 60HZ
Thermal protection No Yes
Automatic Pressure Control System No Yes
Cooling Type External Ventilation
Max. Suction lift 9M
Max. Fluid Temperature +60℃
Max. Environment Temperature +40℃
Installation Horizontal
Connect Type Thread
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC





Guarantee:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.


Our service:
1). We are very glad that customer gives us some suggestion for price and products.
2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers all over the world with speed and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM

FAQ:
1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.
2) .Q: Are you a factory or a trading company?
A: we make water pump, motor, alternator and diesel generators since 2006.
3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEM are welcome!
4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.
5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.
6). Q: How about the warranty?

1 year.
