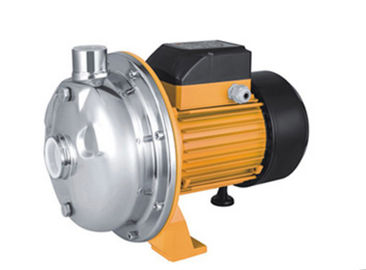

Centrifugal Vortex Hydraulic Pump Electric Motor Three Phase 1.5HP

Place of Origin China
Brand Name ZOZHI
Certification CE/SGS/ISO
Model Number SCM-34ST
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 30000pcs/month
Product Details
Product Name Self Priming Pump Application Agriculture
Output 1.5HP / 1.1KW Flow Max 190 L/Min
Head Max 34M Suction Max 9M
Inlet/Outlet 1"x1" Speed 2850RPM
High Light

Vortex Hydraulic Pump Electric Motor

,

Centrifugal Hydraulic Pump Electric Motor

,

1.5HP Three Phase Submersible Pump

Leave a Message
Product Description



1.5HP Centrifugal Vortex Stainless Steel Water Pump Three Phase



Self Priming Pump APPLICATIONS

1.
Clean water without abrasive particles
2. Sucking water from a deep well
3. For water supply from deep wells or reseRvoirs
4.
Apply to hot water boiler as feed pump, circulation pump
5. Installed in enclosed places, or at least protected

    against inclement weather

6. Pressure boosting tap water



Self Priming Pump TECHNICAL DATA

Model Output A R.P.M. Q.Max H.Max S.Head Pipe Dia LxWxH N.W.
HP / KW 1~220V (l/min) (m) (M) (mm) (Kg)
SCM-18ST 0.5 / 0.37 2.5 2850 110 18 9 1.25"x1" 390x220x270 12
SCM-20ST 0.75 / 0.55 3.8 2850 130 20 9 1.25"x1" 390x220x270 12.5
SCM-26ST 1 / 0.75 5.2 2850 145 26 9 1.25"x1" 390x220x270 13.5
SCM-34ST 1.5 / 1.1 7 2850 190 34 9 1.25"x1" 400x260x330 24

Other voltages and frequencies available on request



Centrifugal Vortex Hydraulic Pump Electric Motor Three Phase 1.5HP 0

Self Priming Pump STRUCTURAL CHARACTERISTICS



Main Specification Standard Optional
Transmission medium Clean Water
Pump body Stainless Steel
Impeller Brass Noryl P.P.O.
Motor housing Aluminum
Stator&Rotor 1. Cold-rolled silicon steel sheet by high-speed punching machine. 2. 100% high-quality copper wire
Front cover Cast Iron
Bearing Chinese Best Quality Bearing NSK, S.K.F., or on request
Mechanical seal Graphene/Ceramic Silicon Carbon
Shaft Carbon Steel Stainless Steel
Insulation Class B Class F
Protection IP44 IP54
Voltage 220-240V Single Phase On Request
Frequency 50HZ 60HZ
Thermal protection No Yes
Automatic Pressure Control System No Yes
Cooling Type External Ventilation
Max. Suction lift 9M
Max. Fluid Temperature +60℃
Max. Environment Temperature +40℃
Installation Horizontal
Connect Type Thread
CONSTRUCTION AND SAFETY STANDARDS in compliance with I.E.C.









Self Priming Pump ADVANTAGE

100% high-quality copper,100% output
Cold-rolled silicon steel sheet by a high-speed punching machine
Good quality bearing, the surface more smooth, the dimension more precise
Thermal protector
One year warranty


Self Priming Pump GUARANTEE

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.





Self Priming Pump OUR SERVICE

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact We provide one-stop services for all
4. All goods produced by our services, from designing and printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.


Self Priming Pump F.A.Q.


1. Q: What's the M.O.Q.?
A: Trial sample order is ok.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do O.E.M. for you.

4. Q: How can I get the pump?
A: Usually we suggest express for samples, if the volume reaches 1m³, the Seaway will be better.

5. Q: What's the warranty period?
A: 1 year.
