Welding Impeller CPM Stainless Steel Submersible Pump / SS Centrifugal Pump

  • Welding Impeller CPM Stainless Steel Submersible Pump / SS Centrifugal Pump
Place of Origin China
Brand Name ZOZHI
Certification CE/SGS/ISO
Model Number SCM-18ST
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 7000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Self Priming Pump Application Agriculture
Output 0.5HP / 0.37KW Flow Max 110 L/Min
Head Max 18M Suction Max 9M
Inlet/Outlet 1"x1" Speed 2850RPM
Highlight

ss centrifugal pump

,

stainless steel submersible pump
Leave a Message
Product Description

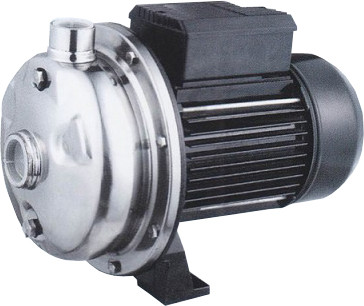

Welding Impeller C.P.M. Stainless Steel Submersible Pump / S.S. Centrifugal Pump


 Self Priming Pump APPLICATIONS
1. Water Pump domestic application such as pool suction.

2. Agricultural irrigation

3. Garden and farm irrigation

4. Lowering the underground water level

5. Various industrial applications

6. An automatic water supply system


Self Priming Pump STRUCTURAL CHARACTERISTICS



Main Specification Standard Optional
Transmission medium Clean Water
Pump body Stainless Steel
Impeller Brass Noryl P.P.O.
Motor housing Aluminum
Stator&Rotor 1.Cold-rolled silicon steel sheet by high-speed punching machine. 2. 100% high-quality copper wire
Front cover Cast Iron
Bearing Chinese Best Quality Bearing NSK, S.K.F., or on request
Mechanical seal Graphene/Ceramic Silicon Carbon
Shaft Carbon Steel Stainless Steel
Insulation Class B Class F
Protection IP44 IP54
Voltage 220-240V Single Phase On Request
Frequency 50HZ 60HZ
Thermal protection No Yes
Automatic Pressure Control System No Yes
Cooling Type External Ventil on
Max. Suction li t 9M
Max. Fluid Temperature  +60℃
Max. Environment Temperature +40℃
Installation Horizontal
Connect Type Thread
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC





TECHNICAL DATA



Model Output A R.P.M. Q.Max H.Max S.Head Pipe Dia LxWxH N.W.
HP / KW 1~220V (l/min) (m) (M) (mm) (Kg)
SCM-18ST 0.5 / 0.37 2.5 2850 110 18 9 1.25"x1" 390x220x270 12
SCM-20ST 0.75 / 0.55 3.8 2850 130 20 9 1.25"x1" 390x220x270 12.5
SCM-26ST 1 / 0.75 5.2 2850 145 26 9 1.25"x1" 390x220x270 13.5
SCM-34ST 1.5 / 1.1 7 2850 190 34 9 1.25"x1" 400x260x330 24

Other voltages and frequencies available on request

Welding Impeller CPM Stainless Steel Submersible Pump / SS Centrifugal Pump 0

Self Priming Pump ADVANTAGE

100% high-quality copper,100% output
Cold-rolled silicon steel sheet by a high-speed punching machine
Good quality bearing, the surface more smooth, the dimension more precise
Thermal protector
One year warranty


Self Priming Pump GUARANTEE

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.





Self Priming Pump OUR SERVICE

1. Directly fact ry sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to makeF.A.Q.e products customers. O.Q.o customers' target priWhat'sFAQ


1. Q: What's the M.O.Q.?
A: Trial sample order is ok.

2. Q: Are you a factory or trading company?
A: We are an m manufacturer.

3O.E.M.: Can you accept using our logo?
A: Yes, we can o O.E.M. for you.

4. Q: How can I get the pump?
A: Usually we suggest express for samples. If the volume reaches 1m³, the Seaway illWhat'stter.

5. Q: What's the warranty period?
A: 1 year.
