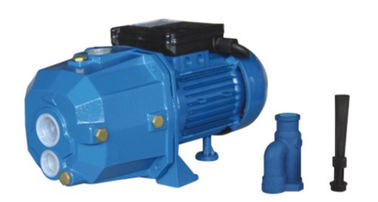

Cold Rolled Silicon Steel Sheet Deep Well Surface Water Pump For Boosting 0.75HP
|Place of Origin||CHINA|
|Minimum Order Quantity||1pc|
|Packaging Details||Packed in cartons , overall size:490x210x230mm/pc, N.W.: 16.5kgs|
|Delivery Time||25 working days after received your payment|
|Payment Terms||T/T, L/C|
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||Self Priming Pump||Application||Well Pumping|
|Power||0.75HP / 0.55KW||Flow Max||40 L/Min|
|Head Max||35m||Suction Max||15m|
self priming centrifugal water pump,
self priming water pump
Cold Rolled Silicon Steel Sheet Deep Well Surface Water Pump For Boosting 0.75HP.
Self Priming Pump APPLICATION
* Deep well pumps installed above ground with the jet body submerged guarantee function even when the static level of the good waterfalls is as far as 35 meters below the level of the installed pump. So they are extremely reliable, economical, and simple to use and find many usages in domestic applications and the automatic distribution of water from small and medium-sized surge tanks, water in gardens, etc.
* Perfect for eater transfer and long-running jobs, this unit provides constant delivery over hours of use.
|Transmission medium||Clean Water|
|Pump body||Cast Iron|
|Stator&Rotor||1. Cold-rolled silicon steel sheet by high-speed punching machine. 2. 100% high-quality copper wire|
|Front cover||Cast Iron|
|Bearing||Chinese Best Quality Bearing||NSK, SKF, or on request|
|Mechanical seal||Graphene/Ceramic||Silicon Carbon|
|Shaft||Carbon Steel||Stainless Steel|
|Insulation||Class B||Class F|
|Voltage||220-240V Single Phase||On Request|
|Automatic Pressure Control System||No||Yes|
|Cooling Type||External Ventilation|
|Max. Suction lift||9M|
|Max. Fluid Temperature||+60℃|
|Max. Environment Temperature||+40℃|
|CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC|
|HP / KW||(m)||(l/min)||(m)||(M)||(mm)||(Kg)|
|DP-550A||0.75 / 0.55||15||2850||40||35||15||1"x1"||490x210x230||16.5|
|DP-750A||1 / 0.75||20||2850||48||40||20||1"x1"||490x210x230||17|
|DP-505||1.5 / 1.1||25||2850||95||42||25||1"x1"||525x250x300||31|
Other voltages and frequencies available on request
Self Priming Pump INSTALLATION SIZE
Self Priming Pump ADVANTAGE
100% high-quality copper,100% output
Cold-rolled silicon steel sheet by a high-speed punching machine
Good quality bearing, the surface more smooth, the dimension more precise
One year warranty
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except for the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
1). We are happy that the customer gives us some suggestions for price and products.
2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers all over the world with speed and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM
1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.
2). Q: Are you a factory or a trading company?
A: we make water pumps, motors, alternators, and diesel generators since 2006.
3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEMs are welcome!
4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.
5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.
6). Q: How about the warranty?
A: 1 year from shipped on board date.
