Automatic Self Sucking Electric Water Transfer Pump For Air Condition GP-125A
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Self Priming Pump | Application | Pumping |
---|---|---|---|
Output | 0.16HP / 0.125KW | Flow Max | 35 L/Min |
Head Max | 35M | Suction Max | 9M |
Inlet/Outlet | 1"x1" | Insulation | Class B |
High Light | self priming transfer pump,self priming water pump |
Self Priming Pump
Automatic Self Sucking Electric Water Transfer Pump For Air Condition GP-125A
APPLICATIONS
A) A domestic application such as supply water from well, pool .etc
B) Long distant water supply
C) Apply to flood control, hydraulic projects
D) Widely used in small TCL
E) Adding pressured
F) Pump use in industry and city for drainage and irrigation
STRUCTURAL CHARACTERISTICS
Main Specification | Standard | Optional |
Transmission medium | Clean Water | |
Pump body | Cast Iron | |
Impeller | Brass | |
Motor housing | Aluminum | |
Stator&Rotor | 1. Cold-rolled silicon steel sheet by high-speed punching machine. 2. 100% high-quality copper wire | |
Front cover | Cast Iron | Brass plate embedded to avoid impeller jam |
Bearing | Chinese Best Quality Bearing | NSK, SKF, or on request |
Mechanical seal | Graphene/Ceramic | Silicon Carbon |
Shaft | Carbon Steel | Stainless Steel |
Insulation | Class B | Class F |
Protection | IP44 | IP54 |
Voltage | 220-240V Single Phase | On Request |
Frequency | 50HZ | 60HZ |
Thermal protection | No | Yes |
Automatic Pressure Control System | No | Yes |
Cooling Type | External Ventilation | |
Max. Suction lift | 9M | |
Max. Fluid Temperature | +60℃ | |
Max. Environment Temperature | +40℃ | |
Installation | Horizontal | |
Connect Type | Thread | |
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC |

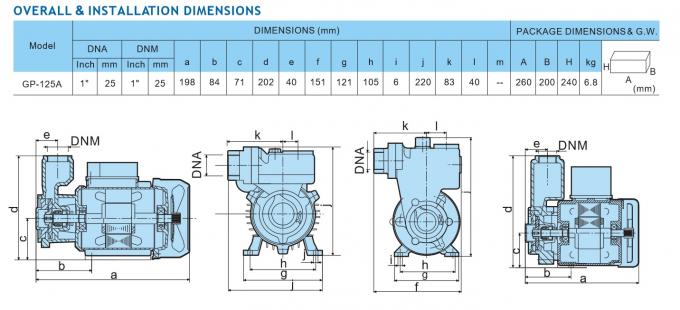

TECHNICAL DATA
Model | Output | A | R.P.M. | Q.Max | H.Max | S.Head | Pipe Dia | LxWxH | N.W. |
HP / KW | 1~220V | (l/min) | (m) | (M) | (mm) | (Kg) | |||
GP-125A | 0.16 / 0.125 | 1.3 | 2850 | 35 | 35 | 9 | 1"x1" | 260x200x240 | 6.8 |
GP-200 | 0.32 / 0.25 | 2 | 2850 | 40 | 35 | 9 | 1"x1" | 310x230x290 | 9 |
Other voltages and frequencies available on request
Self Priming Pump
ADVANTAGE
100% high-quality copper,100% output
Cold-rolled silicon steel sheet by a high-speed punching machine
Good quality bearing, the surface more smooth, the dimension more precise
Thermal protector
One year warranty
GUARANTEE
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except for the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
OUR SERVICE
1). We are delighted that the customer gives us some suggestions for price and products.
2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers all over the world with speed and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM
FAQ
1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.
2). Q: Are you a factory or a trading company?
A: we make water pumps, motors, alternators, and diesel generators since 2006.
3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEMs are welcome!
4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.
5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.
6). Q: How about the warranty?
A: 1 year from shipped on board date.
