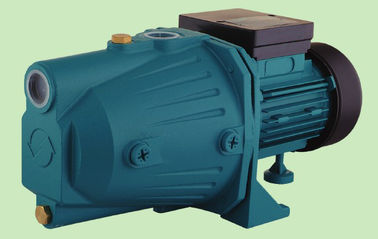

1HP Self - Sucking Self Priming Jet Pump Ce Certificate 220v 50hz Water Jet Pump

China 1HP Self - Sucking Self Priming Jet Pump Ce Certificate 220v 50hz Water Jet Pump supplier

Large Image :  1HP Self - Sucking Self Priming Jet Pump Ce Certificate 220v 50hz Water Jet Pump

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: CE/SGS/ISO
Model Number: JET-100A-1

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons , overall size:480x210x220mm/pc, N.W.: 16.9kgs
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Name: Jet Water Pump Application: Boosting
Output: 1HP / 0.75KW Flow Max: 52 L/Min
Head Max: 50M Suction Max: 9M
Motor Housing: Aluminum Warranty: One Year


1HP Self - Sucking Self Priming Jet Pump Ce Certificate 220v 50hz Water Jet Pump








MOTOR


1. Two –pole  motor (n=2850rpm)
2. Insulation Class B
3. Protection  IP54





MATERIALS



1. Pump body: Cast iron

2. Motor support: Cast iron
3. Motor housing: Aluminum
4. Impeller: Brass/Stainless steel/PPO
5. Shaft with rotor: Carbon steel or stainless steel
6. Mechanical seal: Ceramic/ Graphite







LIMITS OF USE



1. Manometric suction lift up to 9m
2. Liquid temperature up to +80°C
3. Environment temperature up to +40°C





INSTALLATION AND USE



These pumps are suitable for handling clean water without abrasive particles and liquids that are chemically non-aggressive to the pump components. Reliable, economical and simple to use, they are suitable for domestic use and in particular for distributing water in combination with small pressure sets, for irrigating gardens. The pumps must be installed in a covered area, protected against the inclement weather.










TECHNICAL DATA



Model Output A R.P.M. Q.Max H.Max S.Head Pipe Dia LxWxH N.W.
HP / KW 1~220V (l/min) (m) (M) (mm) (Kg)
JET-60A 0.5 / 0.37 1.6 2850 42 40 9 1"x1" 480x210x220 11.9
JET-80A 0.75 / 0.55 3.6 2850 46 45 9 1"x1" 480x210x220 15.9
JET-100A 1 / 0.75 4.8 2850 52 50 9 1"x1" 480x210x220 16.9


 1HP Self - Sucking Self Priming Jet Pump Ce Certificate 220v 50hz Water Jet Pump


ADVANTAGE

100% a high-quality copper,100% output
Cold -rolled silicon steel sheet by a high-speed punching machine
Good quality bearing, the surface more smooth, the dimension more precise
Thermal protector
One year warranty


GUARANTEE

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.



OUR SERVICE

1). We are very glad that customer gives us some suggestion for price and products.

2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.

3). Offer our customers the lowest prices. Streamline the buying and paying processes.

4). Deliver goods to our customers all over the world with speed and precision.

5). Ensure the excellent quality of our products.

6). 12 months FREE warranty.

7). Accept OEM


FAQ

1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.

2). Q: Are you a factory or a trading company?
A: we make water pump, motor, alternator, and diesel generator since 2006.

3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEM are welcome!

4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.

5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.

6). Q: How about the warranty?
A: 1 year from shipped on board date.
