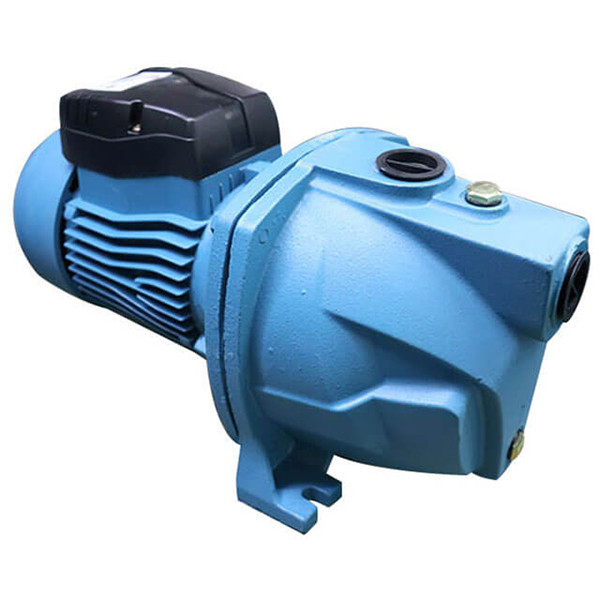

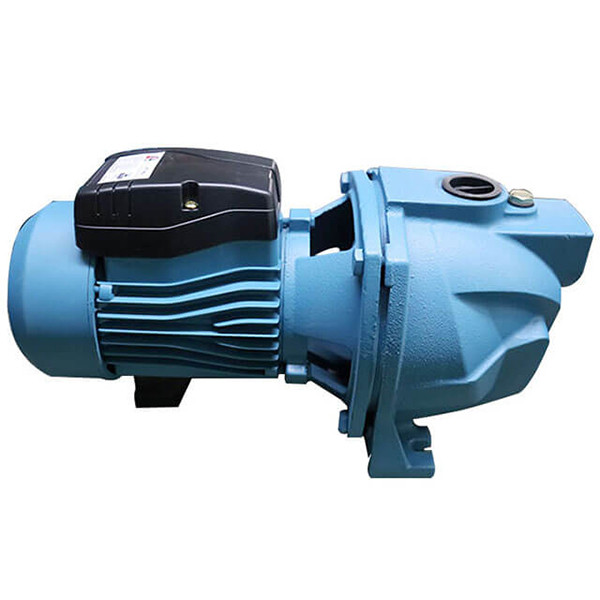

JET-100L IP54 1HP 0.75KW Self Priming Water Pump

JET-100L IP54 1HP 0.75KW Self Priming Water Pump
JET-100L IP54 1HP 0.75KW Self Priming Water Pump JET-100L IP54 1HP 0.75KW Self Priming Water Pump

Large Image :  JET-100L IP54 1HP 0.75KW Self Priming Water Pump

Product Details:

Place of Origin: FUAN CHINA
Brand Name: ZOZHI
Certification: CE,ISO
Model Number: JET100-L

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: 40.80
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 10000pcs/month
Detailed Product Description
Type: JET100-L Power: 0.75KW/1HP
Current: 4.5A Capacitor: 20uf
H。max: 42/52M Q,max: 65/50 L/min
Pipe Size: 1“x1"
High Light:

0.75KW Self Priming Water Pump

,

1HP Self Priming Water Pump

,

IP54 Self Priming Sewage Pump

Application

It can be used to transfer clean water liquids similar to water in physical and chemical properties. It is suitable for lifting water from the well, sprinkling irrigation in the garden, pressure boosting of running water, and supporting equipment, etc.



PUMP

. Stainless steel/brass/PPO impeller

. Max. Liquid temperature:+40

. Max Suction:+9m

. Cast iron pump body and support



MOTOR

. Motor with copper winding

. Shaft: Stainless steel welded shaft/45# steel

be electroplated

. Insulation class:B or F

. Protection class:IP*4

. Max.Ambient temperature:40

. Cooling:External ventilation





Operating conditions

Liquid temperature  -10℃~+100℃
Ambient temperature up to 40℃
Total suction lift up to 9m

Max.working pressure 10 bar
Continuous duty S1



Construct

Single Phase
Heavy-Duty Continuous Work
Motor: Closed, externally ventilated
Shaft: Carbon steel alsl 1045
(Stainless steel Alsl 420 if required)
Insulation Class b/Class F
Protection: P44/P54
Pump Body: Cast iron
Impeller: Brass/Techno-polymer
(P.P.O)Stainless Steel
Mechanical Seal: SIC/Ceramic/Graphite





Self-Priming Pump Data

Model Power Current Capacitor H.Max Q.Max Pipe Size
(HP) (W) (A) (UF) (m) (L/min) (m)
JET60-L 0.5 370 2.9 12 30/40 65/45 1”x1”
JET80-L 0.75 550 3.5 15 34/45 65/50 1”x1”
JET100-L 1 750 4.5 20 42/52 65/50 1”x1”
JETS-60 0.5 370 2.9 12 30/40 65/45 1”x1”
JETS-80 0.75 550 3.5 15 34/45 65/50 1”x1”
JETS-100 1 750 4.5 20 42/52 65/50 1”x1”
JET60-P 0.5 370 2.9 12 30/40 65/45 1”x1”
JET80-P 0.75 550 3.5 15 34/45 65/50 1”x1”
JET100-P 1 750 4.5 20 42/52 65/50 1”x1”
JSW60 0.5 370 2.9 12 30/40 65/45 1”x1”
JSW80 0.75 550 3.5 15 34/45 65/50 1”x1”
JSW100 1 750 4.5 20 42/52 65/50





Application Area



jet-priming water pump



Production Show



JET-100L IP54 1HP 0.75KW Self Priming Water Pump 1

JET-100L IP54 1HP 0.75KW Self Priming Water Pump 2

JET-100L IP54 1HP 0.75KW Self Priming Water Pump 3

JET-100L IP54 1HP 0.75KW Self Priming Water Pump 4

Packing & Shipping

JET-100L IP54 1HP 0.75KW Self Priming Water Pump 5

JET-100L IP54 1HP 0.75KW Self Priming Water Pump 6

Contact Details
Fuan Zhongzhi Pump Co., Ltd.

Contact Person: Livona Guo

Tel: +8613959366089
