|Output:||0.5HP / 0.37KW||Flow Max:||42 L/Min|
|Head Max:||40M||Suction Max:||9M|
|Product Name:||Jet Pump||Application:||Pumping|
self priming centrifugal water pump,
self priming transfer pump

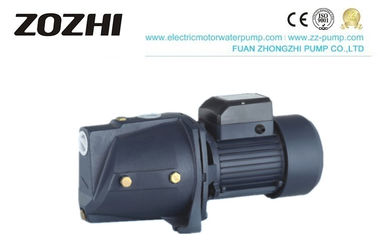

This series of self-priming pumps are divided into air-mixed self-priming pumps (DZB, ZGD) and JET jet high-pressure self-priming pumps. It has the characteristics of convenient installation and compact structure, compact and portable, high efficiency, high suction stroke, etc., and is widely used in low-pressure pumps. Water pumping in common water wells and steel pipes and pressurized water supply of high-rise buildings, and installation of self-priming pumps for automatic devices can achieve the effect of automatic water delivery or pressurization.
|HP / KW||1~220V||(l/min)||(m)||(M)||(mm)||(Kg)|
|JET-60A||0.5 / 0.37||1.6||2850||42||40||9||1"x1"||480x210x220||11.9|
|JET-80A||0.75 / 0.55||3.6||2850||46||45||9||1"x1"||480x210x220||15.9|
|JET-100A||1 / 0.75||4.8||2850||52||50||9||1"x1"||480x210x220||16.9
1. Water supply in family life
2. Water supply from well
3. Tap water pressure boosting
4. Garden irrigation
5. Vegetable shed water supply
6. Industrial and mining enterprises
7. Aquaculture industry
8. other occasions
100% high-quality copper,100% output
Cold-rolled silicon steel sheet by a high-speed punching machine
Good quality bearing, the surface more smooth, the dimension more precise
One year warranty
1.JETL Series pump is constituted with a clean water pump, non-return valve, and air-water separation room, which located
on the upside of the pump body.
2. During operating, it is no need to use a foot valve, the only thing that you should do is just leave some water in the pump
3. After a few minutes' running, the water will be sucked out relying on the pump body itself.
|Transmission medium||Clean Water|
|Pump body||Cast Iron|
|Stator&Rotor||1.Cold-rolled silicon steel sheet by the high-speed punching machine. 2. 100% high-quality copper wire|
|Front cover||Cast Iron|
|Bearing||Chinese Best Quality Bearing||NSK, SKF or on request|
|Mechanical seal||Graphene/Ceramic||Silicon Carbon|
|Shaft||Carbon Steel||Stainless Steel|
|Insulation||Class B||Class F|
|Voltage||220-240V Single Phase||On Request|
|Automatic Pressure Control System||No||Yes|
|Cooling Type||External Ventilation|
|Max. Suction lift||9M|
|Max. Fluid Temperature||+60℃|
|Max. Environment Temperature||+40℃|
|CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC|
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.
1. Directly factory sale
2.Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.
