JET80-L 550W Self Priming Water Pump Capacitor Electrophoresis Jet For Home

JET80-L 550W Self Priming Water Pump Capacitor Electrophoresis Jet For Home
JET80-L 550W Self Priming Water Pump Capacitor Electrophoresis Jet For Home

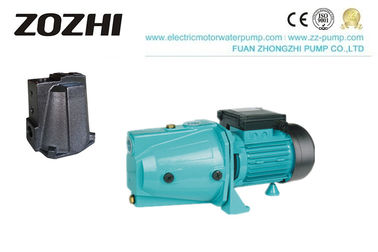

Large Image :  JET80-L 550W Self Priming Water Pump Capacitor Electrophoresis Jet For Home

Product Details:
Place of Origin: China
Brand Name: ZOZHI
Certification: CE/SGS/ISO
Model Number: JET80-L
Payment & Shipping Terms:
Minimum Order Quantity: IPC
Price: negotiated
Packaging Details: Packed in cartons or pallets
Delivery Time: 25 working days after received your payment
Supply Ability: 30000pcs/month
Detailed Product Description
Item Name: Self Priming Pump Head Max: 34 M
Flow Max: 65L/min Pipe Siza: 1"x1"
RPM: 2850 Power: 1HP
High Light:

self priming centrifugal water pump

,

self priming transfer pump

JET80-L 550W Capacitor Electrophoresis Jet Self Priming Water Pump For Home

Self-Priming Pump Description

The JET-L series self-priming pump is a highly efficient jet pump with excellent suction even when there are air bubbles. The pump consists of a single impeller, centrifugal pump, and jet pipe with a nozzle. The series pump is particularly suitable for water supplying in domestic installations, small-scale agriculture watering, and where the self-priming operation is demanded.



electrophoresis jet self-priming water pump



Operation condition

Suction lift to 9m.

Liquid temperature up to +40℃

Ambient temperature up to +40℃

Max.Working Pressure: 6 bar



Self-Priming Pump Application



Clean water without abrasive particles.

Domestic use and irrigation, irrigation of gardens and allotments, etc.

High Head.

Suitable for water lifting, distribution with small or medium pressure sets.

Installed in enclosed places, or at least protected against inclement weather.



self-priming pump





Self-Priming Pump Data

Model Power Current Capacitor H.Max Q.Max Pipe Size
(HP) (W) (A) (UF) (m) (L/min) (m)
JET60-L 0.5 370 2.9 12 30/40 65/45 1”x1”
JET80-L 0.75 550 3.5 15 34/45 65/50 1”x1”
JET100-L 1 750 4.5 20 42/52 65/50 1”x1”
JETS-60 0.5 370 2.9 12 30/40 65/45 1”x1”
JETS-80 0.75 550 3.5 15 34/45 65/50 1”x1”
JETS-100 1 750 4.5 20 42/52 65/50 1”x1”
JET60-P 0.5 370 2.9 12 30/40 65/45 1”x1”
JET80-P 0.75 550 3.5 15 34/45 65/50 1”x1”
JET100-P 1 750 4.5 20 42/52 65/50 1”x1”
JSW60 0.5 370 2.9 12 30/40 65/45 1”x1”
JSW80 0.75 550 3.5 15 34/45 65/50 1”x1”
JSW100 1 750 4.5 20 42/52 65/50 1”x1”



Self-Priming Pump Construction

Pump

Pump Body: Cast iron/Brass/Stainless steel
Impeller: Brass/P.P.O

Mechanical Seal: Carbon

Diffuser Nozzle: P.P.O

Jetpipe: P.P.O
DIEEUSSOR:P.P.O/Cast Iron

Motor
Single Phase
Heavy-Duty Continuous Work
Motor Housing: Aluminum
Shaft: Carbon Steel / Stainless Steel
Insulation: Class B / Class F
Protection: IP44 / IP54
Cooling: External Ventilation





Self-Priming Pump Precautions

A. Before use, check whether the bolts in the electric pump are loose or not. The cable and plug are intact. The insulation resistance of the motor should be greater than 2 megohms.

B. To prevent electric shock, it is necessary to install corresponding safety measures such as leakage circuit breaker or electric shock protection device and reliably ground

C. The voltage usage range is between 180V and 230V. Otherwise, the service life of the motor will be shortened or burned out. If the electric pump is used far away from the power supply, you should thicken the power transmission line. Otherwise, the voltage will drop, and it will not work.



JET80-L 550W Self Priming Water Pump Capacitor Electrophoresis Jet For Home 2



HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
PRESSURE SWITH PRESSURE SWITCH JET80-L 550W Self Priming Water Pump Capacitor Electrophoresis Jet For Home 8
water pump water pump mechnical seal

Self Priming Pump guarantee:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except for the damageable spare parts caused by the customer's incorrect artificial operation. AIn addition, after expiration, our company provides cost spare parts for maintenance.





Self Priming Pump Our service:

1). We are happy that the customer gives us some suggestions for price and products.

2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.

3). Offer our customers the lowest prices. Streamline the buying and paying processes.

4). Deliver goods to our customers all over the world with speed and precision.

5). Ensure the excellent quality of our products.

6). 12 months FREE warranty.

7). Accept OEM


FAQ

1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.

2). Q: Are you a factory or a trading company?
A: we make water pumps, motors, alternators, and diesel generators since 2006.

3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEMs are welcome!

4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.

5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.

6). Q: How about the warranty?
A: 1 year from shipped on board date.
