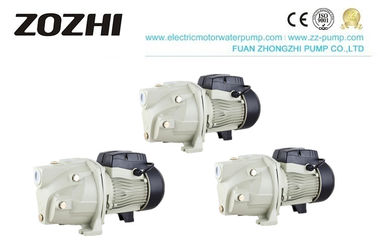

Brass Impeller Self Priming Centrifugal Water Pump Single Phase 220V/50Hz For Garden

China Brass Impeller Self Priming Centrifugal Water Pump Single Phase 220V/50Hz For Garden supplier
Brass Impeller Self Priming Centrifugal Water Pump Single Phase 220V/50Hz For Garden supplier

Large Image :  Brass Impeller Self Priming Centrifugal Water Pump Single Phase 220V/50Hz For Garden

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: CE/SGS/ISO
Model Number: JSW60

Payment & Shipping Terms:

Minimum Order Quantity: IPC
Price: negotiated
Packaging Details: Packed in cartons or pallets
Delivery Time: 25 working days after received your payment
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Item Name: Self Priming Pump Head Max: 40 M
Flow Max: 65L/min Pipe Siza: 1"x1"
RPM: 2850 Power: 0.5-1HP
High Light:

self priming centrifugal water pump

,

self priming transfer pump

Single phase 220V/50Hz Brass impeller Self Priming Centrifugal jet water Pump for garden



Self-Priming Pump Description



It is recommended for pumping clean water without abrasive particles and liquids that are non-corrosive.For domestic use and sprinkling irrigation for garden as well as supplying water to hotel, villa and high building, and must be installed in enclosed place or keep it away from inclement.Realiable , economical and simple to use, they are suitable for domestic applications and the automatic distribution of water from surge tanks, watering gardens and for boosting insufficient mains water pressure. These pumps should be installed in a covered area, protected against the weather.



Material and operation conditions:

1. Motor.100% copper wire

2. Pump body: Cast iron

3. Motor housing: Aluminum

4. Impeller: Brass

5. Shaft:45#steel/ stainless steel

6. Insulation class: F

7. Protection class: IP44

8. Max medium temperature: +40 °C

9. Max. ambient temperature+40°C

10. Max. suction:9Meters





Self-Priming Pump Application



1. Home,garden

2. Farm irrigation

3. Hotel

4. high building

Brass Impeller Self Priming Centrifugal Water Pump Single Phase 220V/50Hz For Garden 0





Self-Priming Pump Data

Model Power Current Capacitor H.Max Q.Max Pipe Size
(HP) (W) (A) (UF) (m) (L/min) (m)
JET60-L 0.5 370 2.9 12 30/40 65/45 1”x1”
JET80-L 0.75 550 3.5 15 34/45 65/50 1”x1”
JET100-L 1 750 4.5 20 42/52 65/50 1”x1”
JETS-60 0.5 370 2.9 12 30/40 65/45 1”x1”
JETS-80 0.75 550 3.5 15 34/45 65/50 1”x1”
JETS-100 1 750 4.5 20 42/52 65/50 1”x1”
JET60-P 0.5 370 2.9 12 30/40 65/45 1”x1”
JET80-P 0.75 550 3.5 15 34/45 65/50 1”x1”
JET100-P 1 750 4.5 20 42/52 65/50 1”x1”
JSW60 0.5 370 2.9 12 30/40 65/45 1”x1”
JSW80 0.75 550 3.5 15 34/45 65/50 1”x1”
JSW100 1 750 4.5 20 42/52 65/50 1”x1”



Self-Priming Pump Construction

Pump

Pump Body: Cast iron/Brass/Stainless steel
Impeller: Brass/P.P.O

Mechanical Seal: Carbon

Diffuser Nozzle:P.P.O

Jetpipe:P.P.O
DIEEUSSOR:P.P.O/Cast Iron

Motor
Single Phase
Heavy-Duty Continuous Work
Motor Housing: Aluminum
Shaft: Carbon Steel / Stainless Steel
Insulation: Class B / Class F
Protection: IP44 / IP54
Cooling: External Ventilation

self-priming pump JET pump



Self-Priming Pump Precautions

A. Before use, check whether the bolts in the electric pump are loose or not. The cable and plug are intact. The insulation resistance of the motor should be greater than 2 megohms.

B. In order to prevent electric shock, it is necessary to install corresponding safety measures such as leakage circuit breaker or electric shock protection device and reliably ground

C. The voltage usage range is between 180V and 230V, otherwise, the service life of the motor will be shortened or burned out. If the electric pump is used far away from the power supply, the power transmission line should be properly thickened, otherwise, the voltage will drop and it will not work.



Brass Impeller Self Priming Centrifugal Water Pump Single Phase 220V/50Hz For Garden 2



HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
PRESSURE SWITH PRESSURE SWITCH Brass Impeller Self Priming Centrifugal Water Pump Single Phase 220V/50Hz For Garden 8
water pump water pump mechnical seal

guarantee:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.





Our service:

1). We are very glad that customer gives us some suggestion for price and products.

2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.

3). Offer our customers the lowest prices. Streamline the buying and paying processes.

4). Deliver goods to our customers all over the world with speed and precision.

5). Ensure the excellent quality of our products.

6). 12 months FREE warranty.

7). Accept OEM



FAQ

1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.

2). Q: Are you a factory or a trading company?
A: we make water pump, motor, alternator, and diesel generator since 2006.

3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEM are welcome!

4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.

5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.

6). Q: How about the warranty?
A: 1 year from shipped on board date.
