Deep Well High Pressure Electric Water Pump With Injector Body 1HP

China Deep Well High Pressure Electric Water Pump With Injector Body 1HP supplier
Deep Well High Pressure Electric Water Pump With Injector Body 1HP supplier Deep Well High Pressure Electric Water Pump With Injector Body 1HP supplier

Large Image :  Deep Well High Pressure Electric Water Pump With Injector Body 1HP

Product Details:

Place of Origin: CHINA
Brand Name: ZOZHI
Certification: CE/SGS/ISO
Model Number: DP-750A-1

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons , overall size:490x210x230mm/pc, N.W.: 17kgs
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Product Name: Self Priming Pump Application: Boosting
Power: 1HP / 0.75KW Flow Max: 48L/Min
Head Max: 40m Suction Max: 20m
Protection: IP 54/55 OEM: Applicable


Deep Well High-Pressure Electric Water Pump With Injector Body 1HP


Application:

The electric water pumps are regarded as one of the best pumps for a deep well. In fact, they consist of two pumps connected in series, one is ejector-pump and the other is a centrifugal pump. The ejector pump is lowered in well and connected to the centrifugal pump body by two pipes. These pumps are suitable for pumping clean water and chemically non-aggressive fluids. it is suitable for supplying clean water for domestic life use, sucking water from deep well, boosting tap water, irrigating gardens and fields or supplying water for agriculture.

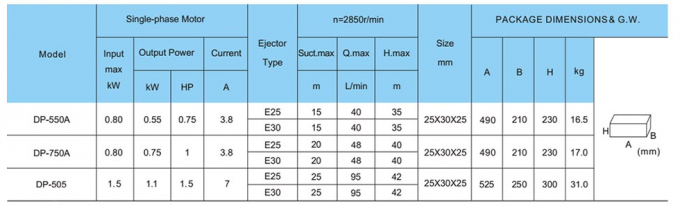

Technical Data:


ModelOutputSuct.MaxR.P.M.Q.MaxH.MaxSuct.Max.Pipe DiaLxWxHN.W.
HP / KW(m)(l/min)(m)(M)(mm)(Kg)
DP-750A1 / 0.752028504840201"x1"490x210x23017

Other voltages and frequencies available on request

 Deep Well High Pressure Electric Water Pump With Injector Body 1HP
Advantages:

1. It can last for a long time.
2. It is steady when it works.
3. It is energy saving.
4. It is 100% copper with high quality.



Structural Characteristics:


Main SpecificationStandardOptional
Transmission mediumClean Water
Pump bodyCast Iron
ImpellerBrass
Motor housingAluminum
Stator&Rotor1.Cold -rolled silicon steel sheet by high speed punching machine. 2. 100% high quality copper wire
Front coverCast Iron
BearingChinese Best Quality BearingNSK,SKF or on request
Mechanical sealGraphene/CeramicSilicon Carbon
ShaftCarbon SteelStainless Steel
InsulationClass BClass F
ProtectionIP44IP54
Voltage220-240V Single PhaseOn Request
Frequency50HZ60HZ
Thermal protectionNoYes
Automatic Pressure Control SystemNoYes
Cooling TypeExternal Ventilation
Max. Suction lift 9M
Max. Fluid Temperature+60℃
Max. Environment Temperature+40℃
InstallationHorizontal
Connect TypeThread
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC

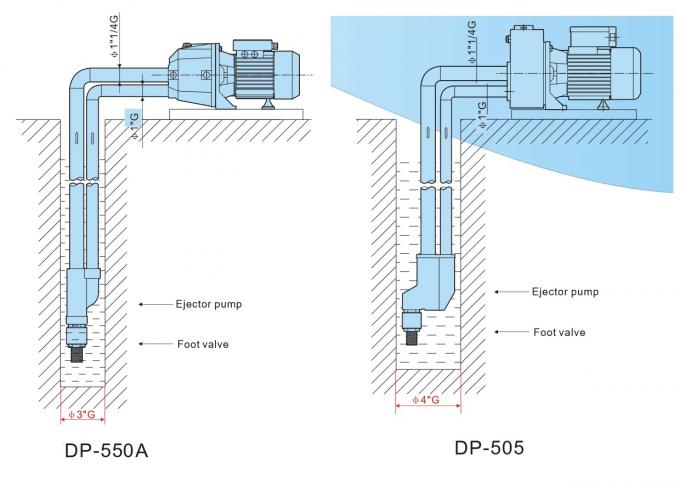

Installation Size:


Deep Well High Pressure Electric Water Pump With Injector Body 1HP

Guarantee:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.



Our Service:
1). We are very glad that customer gives us some suggestion for price and products.
2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers all over the world with speed and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM
FAQ
1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.
2) .Q: Are you a factory or a trading company?
A: we make water pump, motor, alternator, and diesel generator since 2006.
3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEM are welcome!
4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.
5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.
6). Q: How about the warranty?
A: 1 year from shipped on board date.
