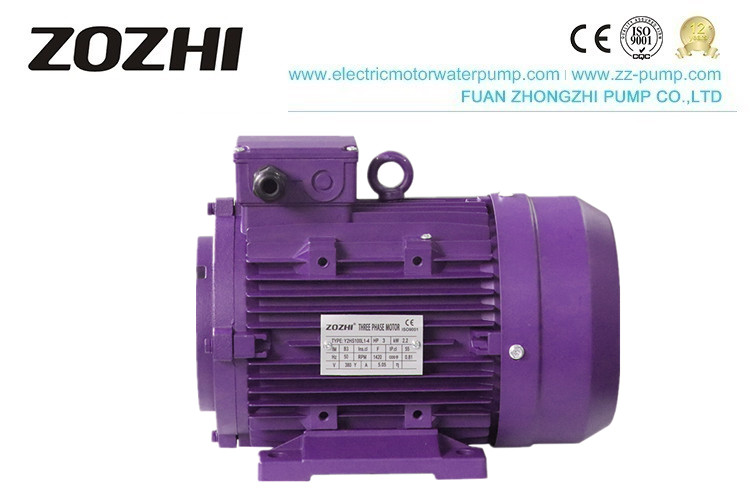

Internal Shaft 380V 50HZ 5.5KW Three Phase Induction Motor

  • Internal Shaft 380V 50HZ 5.5KW Three Phase Induction Motor
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number hydraulic motor
Minimum Order Quantity 10PCS
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output 0.5kw 1.5kw 2.2kw 4kw 5.5kw 7.5kw Application Hydraulic System
Voltage/Frequency 220V 230/380V 60HZ Motor Bearing C&U (SKF For Choice)
Efficiency IE1 IE2 IE3 Motor Housing Aluminum
Protection Class IP54/IP55 Name Three Phase Asynchronous Motor
Product Name Hollow Shaft Motor
Highlight

5.5kw indution oil pump motor

,

50hz hollow shaft hydraulic motor

,

vehicle industry Hollow Shaft Motor
Leave a Message
Product Description

Internal Shaft 380V 50HZ 5.5KW Three Phase Induction Motor



                                                      Description



1. The motor is an internal shaft type, which can be directly matched with the corresponding pump. It can be closely matched with the oil pump without a pump sleeve coupling, reducing the installation space. You can also install it like a professional installation technician; The machining surface has high precision, is coaxial with the pump, has good concentricity, stable operation, low noise, and convenient maintenance.



2. Hollow shaft motor is stable operation, low noise, and low heat generation.



3. The product quality is stable and durable, the complete load design is higher than the standard value, the shaft steel is heat-treated, and the high-pressure wear-resistant life is long.



4. The hydraulic series models are complete and can be matched with the hydraulic pumps of all manufacturers on the market, and unique specifications can be customized according to customer needs.



Internal Shaft 380V 50HZ 5.5KW Three Phase Induction Motor 0

                                                      Application

Products are widely used in injection molding machines, hydraulic presses, the vehicle industry, ships, tire machines, stretching Machinery, press machinery, rubber foam machinery, CNC machine tools, food machinery, gas distribution machinery, vulcanization machinery, brick-making Machinery, engineering machinery, plastic Machinery, shoe-making Machinery, die-casting Machinery, Metallurgical Machinery, mining machinery, metal cutting machine tools, etc.


Internal Shaft 380V 50HZ 5.5KW Three Phase Induction Motor 1
Internal Shaft 380V 50HZ 5.5KW Three Phase Induction Motor 2








                                                      Advantage





                                                  Popular motor to support you to win the market





                                                 High-Efficiency Motor                          High-standard material with 100% output



                                                 Population Motor                                 Get good feedback from customer



                                                 OEM & ODM                                       Customized service



                                                 Direct manufacturer                             24 hours online service



                                                 3 Years Warranty                                 Almost without any after service



                                                 7 days shipment                                  Stock Material



                                                        Note





1. Be sure to correct concentricity during installation; allow 0.1mm deviation


2. Be sure to confirm the matching size of the oil pump and motor before purchasing. Please consult for more details


3. If you don't know what oil pump to match, please measure the "shaft size," "flange inner diameter," and "hole distance" of your motor. We will find a suitable motor for you based on the size



Internal Shaft 380V 50HZ 5.5KW Three Phase Induction Motor 3

Internal Shaft 380V 50HZ 5.5KW Three Phase Induction Motor 4

Internal Shaft 380V 50HZ 5.5KW Three Phase Induction Motor 5

Internal Shaft 380V 50HZ 5.5KW Three Phase Induction Motor 6



                                                  Relate Products





Internal Shaft 380V 50HZ 5.5KW Three Phase Induction Motor 7 Internal Shaft 380V 50HZ 5.5KW Three Phase Induction Motor 8 Internal Shaft 380V 50HZ 5.5KW Three Phase Induction Motor 9

Hollow Shaft Motor

Three Phase Motor

Hollow Shaft Motor

Single Phase Motor

Solid Shaft Motor

3 Phase Motor
Internal Shaft 380V 50HZ 5.5KW Three Phase Induction Motor 10 Internal Shaft 380V 50HZ 5.5KW Three Phase Induction Motor 11 Internal Shaft 380V 50HZ 5.5KW Three Phase Induction Motor 12

Solid Shaft Motor

Mono phase Motor

Solid Shaft Motor

AC induction single-phase motor

Electric Centrifugal Switch

For Single Phase Motor





                                                  Factory Picture



Internal Shaft 380V 50HZ 5.5KW Three Phase Induction Motor 13



                                            Technical Data







Model Rated Output Rated Current Rated Speed Eff Power Factor Starting Current Ts/tn Tmax/Tn Axis Bore Axis Key height Bore Depth Front Cover Oil Pump Fixed Position Oil Pump Model
  HP KW A r/min % cosΦ times times Φx键宽 C E halt止口Φ Screw Hole Distance Model
Y2HS802-4 1 0.75 2 1390 74.5 0.76 6 2.3 2.3 12.7x3.2 14.35 35 82.55 106.3 M10 VP20,VP12,VP12/20
Y2HS802-4 1 0.75 2 1390 74.5 0.76 6 2.3 2.3 10.15x7齿 Φ13.65 35 82.55 106.3 M10 VP20,7齿花键 tooth key
Y2HS802-4 1 0.75 2 1390 74.5 0.76 6 2.3 2.3 12.4x9齿 Φ16.35 35 82.55 106.3 M10 VP20,9齿花键 tooth key
Y2HS802-4 1 0.75 2 1390 74.5 0.76 6 2.3 2.3 12x4 13.7 28 50.8 82.55M8 HGP-1A
Y2HS802-4 1 0.75 2 1390 74.5 0.76 6 2.3 2.3 15.875x4 17.7 32 82.55 106.3 M10 HGP-3A

Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 12.5x4 14 35 50.8 63.5x63.5 M8 GPY, HGP-2A
Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 12x4 13.7 28 50.8 82.55 M8 HGP-1A
Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 12.7x3.2 14.35 35 82.55 106.3 M10 VP20, VP12/15
Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 10.15x7齿 Φ13.65 35 82.55 106.3 M10 VP20,7齿花键 tooth key
Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 12.4x9齿 Φ16.35 35 82.55 106.3 M10 VP20,9齿花键 tooth key
Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 16x5 18 37 38 70x100 MB CBN CBT
Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 19.05x4.76 21.25 36 95.02 90x90 M10 VP30, VP40
Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 15.875x4 17.7 34 82.55 106.3 M10 HGP-3A

Y2HS100L-4 3 2.2 5 1430 81 0.82 7 2.2 2.3 12.5x4 14 35 50.8 63.5x63.5 M8 GPY HGP-2A
Y2HS100L-4 3 2.2 5 1430 81 0.82 7 2.2 2.3 19.05x4.76 21.25 38 82.55 106 M10 PV2R1
Y2HS100L-4 3 2.2 5 1430 81 0.82 7 2.2 2.3 19.05x4.76 21.25 36 95.02 90X90 M10 VP30, VP40
Y2HS100L-4 3 2.2 5 1430 81 0.82 7 2.2 2.3 16X5 18 37 38 70X100 MB CBN CBT
Y2HS100L-4 3 2.2 5 1430 81 0.82 7 2.2 2.3 12.7x3.2 14.35 35 82.55 106.3 M10 VP20, VP12/15
Y2HS100L-4 3 2.2 5 1430 81 0.82 7 2.2 2.3 15.875x4 17.7 34 82.55 106.3 M10 HGP-3A
Y2HS100L-4 3 2.2 5 1430 81 0.82 7 2.2 2.3 18x6 18 37 38 70X100 MB CBN CBT
Y2HS100L-4 3 2.2 5 1430 81 0.82 7 2.2 2.3 19.05x4.76 21.25 38 82.55 106 M10 PV2R1

Y2HS112M-4 5.5 4 8.8 1440 84.5 0.82 7 2.2 2.3 12.5x4 14 35 50.8 63.5x63.5 M8 GPY HGP-2A
Y2HS112M-4 5.5 4 8.8 1440 84.5 0.82 7 2.2 2.3 15.875x4 17.7 34 82.55 106.3 M10 HGP-3A
Y2HS112M-4 5.5 4 8.8 1440 84.5 0.82 7 2.2 2.3 16x5 18 37 38 70x100 MB CBN CBT
Y2HS112M-4 5.5 4 8.8 1440 84.5 0.82 7 2.2 2.3 19.05x4.76 21.25 38 82.55 106 M10 PV2R1, FA1
Y2HS112M-4 5.5 4 8.8 1440 84.5 0.82 7 2.2 2.3 19.05x4.76 21.25 36 95.02 90x90 M10 VP-30 VP-40
Y2HS112M-4 5.5 4 8.8 1440 84.5 0.82 7 2.2 2.3 22x5 24 50 96 90x90 M10 50T
Y2HS112M-4 5.5 4 8.8 1440 84.5 0.82 7 2.2 2.3 11.4x4 Φ15-4齿 37 38 70x100 MB CBN 4齿花键

Y2HS132S-4 7.5 5.5 11.8 1440 85.5 0.84 7 2.2 2.3 22x5 24 50 96 90x90 M10 50T-F
Y2HS132S-4 7.5 5.5 11.8 1440 85.5 0.84 7 2.2 2.3 16x5 18 37 38 70x100 MB CBN CBT
Y2HS132S-4 7.5 5.5 11.8 1440 85.5 0.84 7 2.2 2.3 12.5x4 14 35 50.8 63.5x63.5 M8 GPY HGP-2A
Y2HS132S-4 7.5 5.5 11.8 1440 85.5 0.84 7 2.2 2.3 15.875x4 17.7 34 82.55 106.3 M10 HGP-3A
Y2HS132S-4 7.5 5.5 11.8 1440 85.5 0.84 7 2.2 2.3 19.05x4.76 21.25 38 82.55 106 M10 PV2R1, FA1
Y2HS132S-4 7.5 5.5 11.8 1440 85.5 0.84 7 2.2 2.3 25.4x6.35 28.2 50 101.6 Φ146 M12 T6B PV2R2
Y2HS132S-4 7.5 5.5 11.8 1440 85.5 0.84 7 2.2 2.3 30x8(7) 33 48 160 Φ187 M12 150T

Y2HS132M-4 10 7.5 15.6 1440 87 0.85 7 2.2 2.3 15.875x4 17.7 34 82.55 106.3 M10 HGP-3A
Y2HS132M-4 10 7.5 15.6 1440 87 0.85 7 2.2 2.3 19.05x4.76 21.5 38 82.55 106 M10 PV2R1 FA
Y2HS132M-4 10 7.5 15.6 1440 87 0.85 7 2.2 2.3 22.23x6.35 25.08 35 101.6 146 M12 T6C
Y2HS132M-4 10 7.5 15.6 1440 87 0.85 7 2.2 2.3 25.4x6.35 28.2 50 101.6 146 M12 T6B PV2R2
Y2HS132M-4 10 7.5 15.6 1440 87 0.85 7 2.2 2.3 30x8(7) 33 48 160 Φ187 M12 150T
Y2HS132M-4 10 7.5 15.6 1440 87 0.85 7 2.2 2.3 22.23x4.76 24.5 52 101.6 146 M12 S25V(S20V)25VQ





                                                 Customer Feedback

Internal Shaft 380V 50HZ 5.5KW Three Phase Induction Motor 14






                                                3 Years Warranty



Guarantee for 3 years from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



                                                Certificate

Internal Shaft 380V 50HZ 5.5KW Three Phase Induction Motor 15





                                                   RFQ




1. Q: What’s the MOQ?                                                          2. Q: Are you a factory or trading company?

A: A trial sample order is ok.                                                         A: Manufacturer. Focus on motors for more than 15 years.


3. Q: Can you accept using our logo?                                 4. Q: How can I get the sample?

A: Yes, we can do OEM for you.                                                  A: Usually, we suggest express for samples.



5. Q: What’s the warranty period?                                        6. Q: What are your terms of payment?

A: 3 years from shipped on board date.                                       A: 30% advance payment, balance before shipment.
