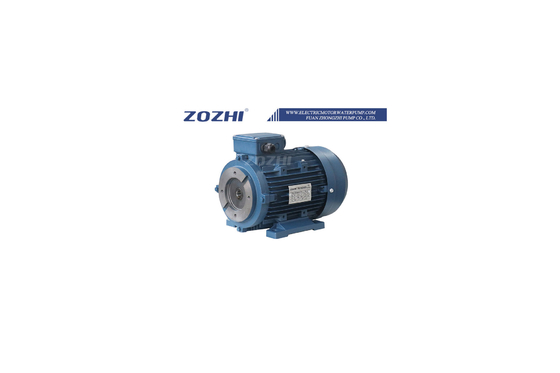

Oil Pump Hollow Shaft Motor 2.2kw 5.5kw 7.5kw High Starting Torques For Hydraulic System
Place of Origin | China |
---|---|
Brand Name | ZOZHI |
Certification | ISO |
Model Number | hydraulic motor |
Minimum Order Quantity | 10PCS |
Price | negotiated |
Packaging Details | Packed in cartons,veneer case or wooden case. |
Delivery Time | 25 working days after received your payment |
Payment Terms | T/T, L/C |
Supply Ability | 10000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xOutput | 0.5kw 1.5kw 2.2kw 4kw 5.5kw 7.5kw | Application | Hydraulic System |
---|---|---|---|
Voltage/Frequency | 220V 230/380V 60HZ | Motor Bearing | C&U (SKF For Choice) |
Efficiency | IE1 IE2 IE3 | Motor Housing | Aluminum |
Protection Class | IP54/IP55 | Insulation Class | F Class |
Product Name | Hollow Shaft Motor | ||
Highlight | Oil Pump Hollow Shaft Motor 2.2kw,Hydraulic System Oil Pump Shaft Motor,7.5kw Hydraulic Oil Pump Shaft Motor |
Oil Pump Hollow Shaft Motor 2.2kw 5.5kw 7.5kw High Starting Torques For Hydraulic System
Hollow Shaft Motor
Lightweight
The chassis uses high-strength aluminum alloy, which is small and light, easy to install and carry
low noise
Optimized design in strict accordance with the working conditions of the hydraulic transmission system to reduce noise
high efficiency
Optimize electromagnetic design, reduce harmonic EMF, reduce energy consumption
Easy to install
Direct connection installation, convenient and fast
Tightly sealed
IP54 protection level, dustproof, waterproof drip, and oil foam
Application
Direct-connected with vane pump for plastic machinery
Note
1. Be sure to correct concentricity during installation. Allow 0.1mm deviation
2. Be sure to confirm the matching size of the oil pump and motor before purchasing. Please consult for more details
3. If you don't know what oil pump to match, please measure the "shaft size," "flange inner diameter," and "hole distance" of your motor? We will find a suitable motor for you based on the size
Data
Model | Rated Output | Rated Current | Rated Speed | Eff | Power Factor | Starting Current | Ts/tn | Tmax/Tn | Axis Bore | Axis Key height | Bore Depth | Front Cover | Oil Pump Fixed Position | Oil Pump Model | |
HP | KW | A | r/min | % | cosΦ | times | times | Φx键宽 | C | E | halt止口Φ | Screw Hole Distance | Model | ||
Y2HS802-4 | 1 | 0.75 | 2 | 1390 | 74.5 | 0.76 | 6.0 | 2.3 | 2.3 | 12.7x3.2 | 14.35 | 35 | 82.55 | 106.3 M10 | VP20,VP12,VP12/20 |
Y2HS802-4 | 1 | 0.75 | 2 | 1390 | 74.5 | 0.76 | 6.0 | 2.3 | 2.3 | 10.15x7齿 | Φ13.65 | 35 | 82.55 | 106.3 M10 | VP20,7齿花键 tooth key |
Y2HS802-4 | 1 | 0.75 | 2 | 1390 | 74.5 | 0.76 | 6.0 | 2.3 | 2.3 | 12.4x9齿 | Φ16.35 | 35 | 82.55 | 106.3 M10 | VP20,9齿花键 tooth key |
Y2HS802-4 | 1 | 0.75 | 2 | 1390 | 74.5 | 0.76 | 6.0 | 2.3 | 2.3 | 12x4 | 13.7 | 28 | 50.8 | 82.55M8 | HGP-1A |
Y2HS802-4 | 1 | 0.75 | 2 | 1390 | 74.5 | 0.76 | 6.0 | 2.3 | 2.3 | 15.875x4 | 17.7 | 32 | 82.55 | 106.3 M10 | HGP-3A |
Y2HS90L-4 | 2 | 1.5 | 3.7 | 1400 | 79 | 0.79 | 6.5 | 2.3 | 2.3 | 12.5x4 | 14 | 35 | 50.8 | 63.5x63.5 M8 | GPY,HGP-2A |
Y2HS90L-4 | 2 | 1.5 | 3.7 | 1400 | 79 | 0.79 | 6.5 | 2.3 | 2.3 | 12x4 | 13.7 | 28 | 50.8 | 82.55 M8 | HGP-1A |
Y2HS90L-4 | 2 | 1.5 | 3.7 | 1400 | 79 | 0.79 | 6.5 | 2.3 | 2.3 | 12.7x3.2 | 14.35 | 35 | 82.55 | 106.3 M10 | VP20, VP12/15 |
Y2HS90L-4 | 2 | 1.5 | 3.7 | 1400 | 79 | 0.79 | 6.5 | 2.3 | 2.3 | 10.15x7齿 | Φ13.65 | 35 | 82.55 | 106.3 M10 | VP20,7齿花键 tooth key |
Y2HS90L-4 | 2 | 1.5 | 3.7 | 1400 | 79 | 0.79 | 6.5 | 2.3 | 2.3 | 12.4x9齿 | Φ16.35 | 35 | 82.55 | 106.3 M10 | VP20,9齿花键 tooth key |
Y2HS90L-4 | 2 | 1.5 | 3.7 | 1400 | 79 | 0.79 | 6.5 | 2.3 | 2.3 | 16x5 | 18 | 37 | 38 | 70x100 MB | CBN CBT |
Y2HS90L-4 | 2 | 1.5 | 3.7 | 1400 | 79 | 0.79 | 6.5 | 2.3 | 2.3 | 19.05x4.76 | 21.25 | 36 | 95.02 | 90x90 M10 | VP30, VP40 |
Y2HS90L-4 | 2 | 1.5 | 3.7 | 1400 | 79 | 0.79 | 6.5 | 2.3 | 2.3 | 15.875x4 | 17.7 | 34 | 82.55 | 106.3 M10 | HGP-3A |
Y2HS100L-4 | 3 | 2.2 | 5 | 1430 | 81 | 0.82 | 7.0 | 2.2 | 2.3 | 12.5x4 | 14 | 35 | 50.8 | 63.5x63.5 M8 | GPY HGP-2A |
Y2HS100L-4 | 3 | 2.2 | 5 | 1430 | 81 | 0.82 | 7.0 | 2.2 | 2.3 | 19.05x4.76 | 21.25 | 38 | 82.55 | 106 M10 | PV2R1 |
Y2HS100L-4 | 3 | 2.2 | 5 | 1430 | 81 | 0.82 | 7.0 | 2.2 | 2.3 | 19.05x4.76 | 21.25 | 36 | 95.02 | 90X90 M10 | VP30, VP40 |
Y2HS100L-4 | 3 | 2.2 | 5 | 1430 | 81 | 0.82 | 7.0 | 2.2 | 2.3 | 16X5 | 18 | 37 | 38 | 70X100 MB | CBN CBT |
Y2HS100L-4 | 3 | 2.2 | 5 | 1430 | 81 | 0.82 | 7.0 | 2.2 | 2.3 | 12.7x3.2 | 14.35 | 35 | 82.55 | 106.3 M10 | VP20, VP12/15 |
Y2HS100L-4 | 3 | 2.2 | 5 | 1430 | 81 | 0.82 | 7.0 | 2.2 | 2.3 | 15.875x4 | 17.7 | 34 | 82.55 | 106.3 M10 | HGP-3A |
Y2HS100L-4 | 3 | 2.2 | 5 | 1430 | 81 | 0.82 | 7.0 | 2.2 | 2.3 | 18x6 | 18 | 37 | 38.00 | 70X100 MB | CBN CBT |
Y2HS100L-4 | 3 | 2.2 | 5 | 1430 | 81 | 0.82 | 7.0 | 2.2 | 2.3 | 19.05x4.76 | 21.25 | 38 | 82.55 | 106 M10 | PV2R1 |
Y2HS112M-4 | 5.5 | 4 | 8.8 | 1440 | 84.5 | 0.82 | 7.0 | 2.2 | 2.3 | 12.5x4 | 14 | 35 | 50.8 | 63.5x63.5 M8 | GPY HGP-2A |
Y2HS112M-4 | 5.5 | 4 | 8.8 | 1440 | 84.5 | 0.82 | 7.0 | 2.2 | 2.3 | 15.875x4 | 17.7 | 34 | 82.55 | 106.3 M10 | HGP-3A |
Y2HS112M-4 | 5.5 | 4 | 8.8 | 1440 | 84.5 | 0.82 | 7.0 | 2.2 | 2.3 | 16x5 | 18 | 37 | 38.00 | 70x100 MB | CBN CBT |
Y2HS112M-4 | 5.5 | 4 | 8.8 | 1440 | 84.5 | 0.82 | 7.0 | 2.2 | 2.3 | 19.05x4.76 | 21.25 | 38 | 82.55 | 106 M10 | PV2R1, FA1 |
Y2HS112M-4 | 5.5 | 4 | 8.8 | 1440 | 84.5 | 0.82 | 7.0 | 2.2 | 2.3 | 19.05x4.76 | 21.25 | 36 | 95.02 | 90x90 M10 | VP-30 VP-40 |
Y2HS112M-4 | 5.5 | 4 | 8.8 | 1440 | 84.5 | 0.82 | 7.0 | 2.2 | 2.3 | 22x5 | 24 | 50 | 96 | 90x90 M10 | 50T |
Y2HS112M-4 | 5.5 | 4 | 8.8 | 1440 | 84.5 | 0.82 | 7.0 | 2.2 | 2.3 | 11.4x4 | Φ15-4齿 | 37 | 38.00 | 70x100 MB | CBN 4齿花键 |
Y2HS132S-4 | 7.5 | 5.5 | 11.8 | 1440 | 85.5 | 0.84 | 7.0 | 2.2 | 2.3 | 22x5 | 24 | 50 | 96 | 90x90 M10 | 50T-F |
Y2HS132S-4 | 7.5 | 5.5 | 11.8 | 1440 | 85.5 | 0.84 | 7.0 | 2.2 | 2.3 | 16x5 | 18 | 37 | 38.00 | 70x100 MB | CBN CBT |
Y2HS132S-4 | 7.5 | 5.5 | 11.8 | 1440 | 85.5 | 0.84 | 7.0 | 2.2 | 2.3 | 12.5x4 | 14 | 35 | 50.8 | 63.5x63.5 M8 | GPY HGP-2A |
Y2HS132S-4 | 7.5 | 5.5 | 11.8 | 1440 | 85.5 | 0.84 | 7.0 | 2.2 | 2.3 | 15.875x4 | 17.7 | 34 | 82.55 | 106.3 M10 | HGP-3A |
Y2HS132S-4 | 7.5 | 5.5 | 11.8 | 1440 | 85.5 | 0.84 | 7.0 | 2.2 | 2.3 | 19.05x4.76 | 21.25 | 38 | 82.55 | 106 M10 | PV2R1, FA1 |
Y2HS132S-4 | 7.5 | 5.5 | 11.8 | 1440 | 85.5 | 0.84 | 7.0 | 2.2 | 2.3 | 25.4x6.35 | 28.2 | 50 | 101.6 | Φ146 M12 | T6B PV2R2 |
Y2HS132S-4 | 7.5 | 5.5 | 11.8 | 1440 | 85.5 | 0.84 | 7.0 | 2.2 | 2.3 | 30x8(7) | 33 | 48 | 160 | Φ187 M12 | 150T |
Y2HS132M-4 | 10 | 7.5 | 15.6 | 1440 | 87 | 0.85 | 7.0 | 2.2 | 2.3 | 15.875x4 | 17.7 | 34 | 82.55 | 106.3 M10 | HGP-3A |
Y2HS132M-4 | 10 | 7.5 | 15.6 | 1440 | 87 | 0.85 | 7.0 | 2.2 | 2.3 | 19.05x4.76 | 21.5 | 38 | 82.55 | 106 M10 | PV2R1 FA |
Y2HS132M-4 | 10 | 7.5 | 15.6 | 1440 | 87 | 0.85 | 7.0 | 2.2 | 2.3 | 22.23x6.35 | 25.08 | 35 | 101.6 | 146 M12 | T6C |
Y2HS132M-4 | 10 | 7.5 | 15.6 | 1440 | 87 | 0.85 | 7.0 | 2.2 | 2.3 | 25.4x6.35 | 28.2 | 50 | 101.6 | 146 M12 | T6B PV2R2 |
Y2HS132M-4 | 10 | 7.5 | 15.6 | 1440 | 87 | 0.85 | 7.0 | 2.2 | 2.3 | 30x8(7) | 33 | 48 | 160 | Φ187 M12 | 150T |
Y2HS132M-4 | 10 | 7.5 | 15.6 | 1440 | 87 | 0.85 | 7.0 | 2.2 | 2.3 | 22.23x4.76 | 24.5 | 52 | 101.6 | 146 M12 | S25V(S20V)25VQ |
