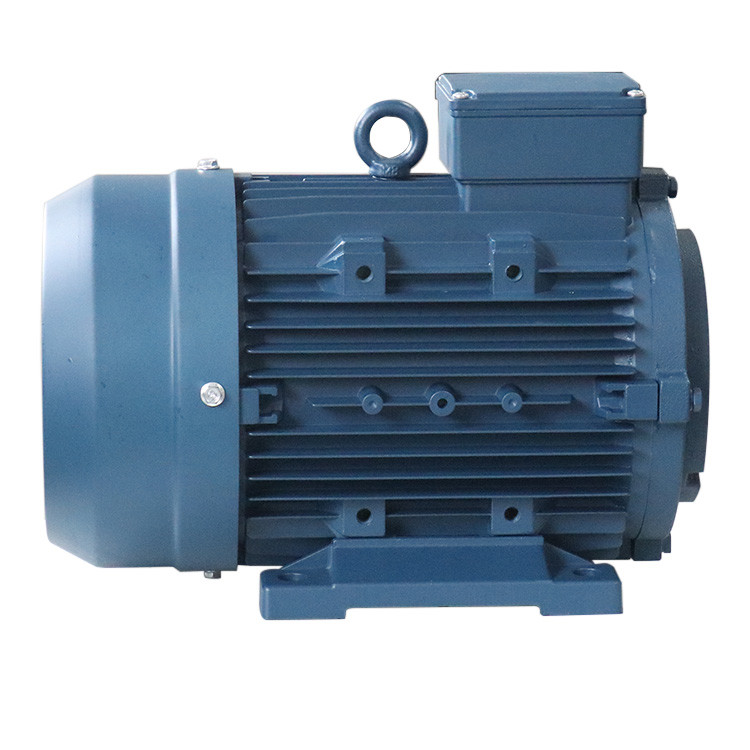

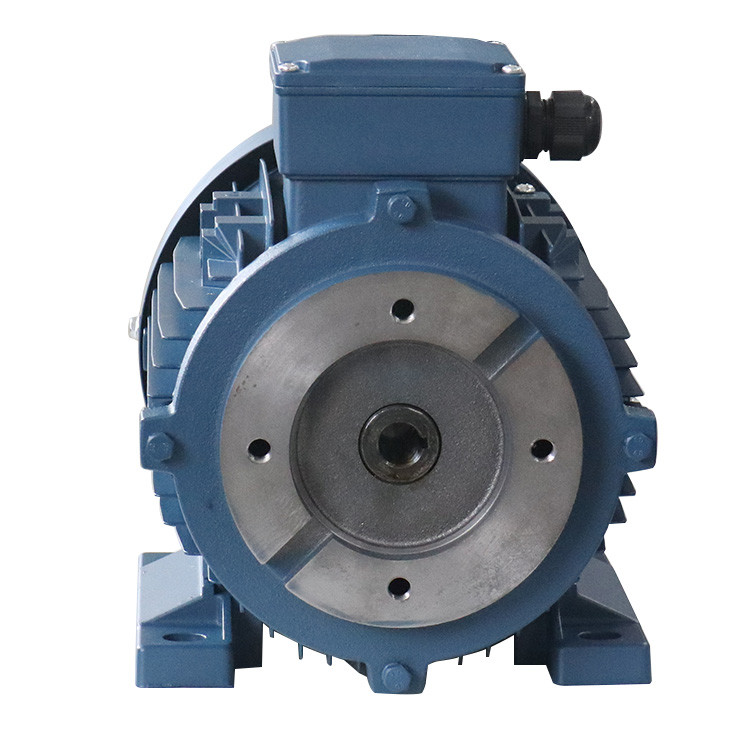

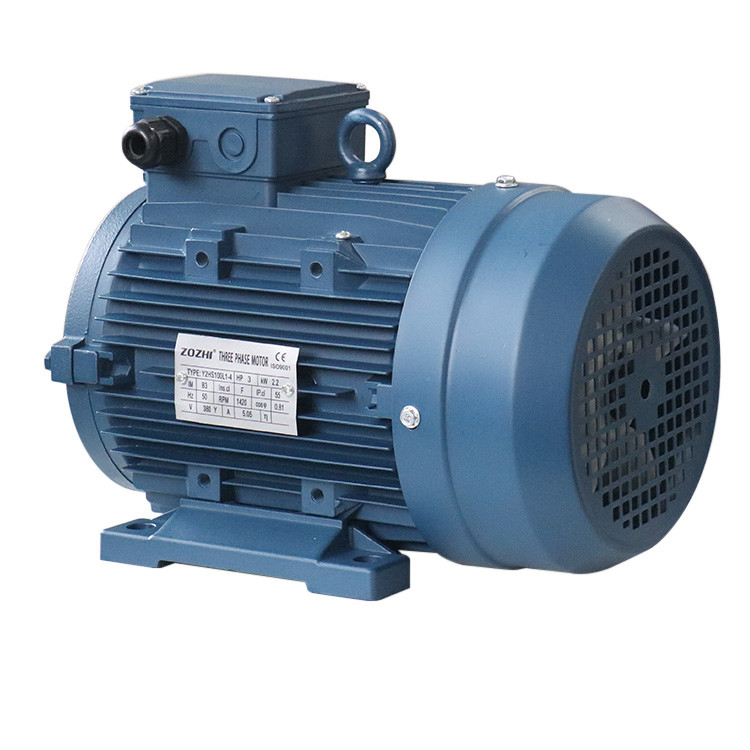

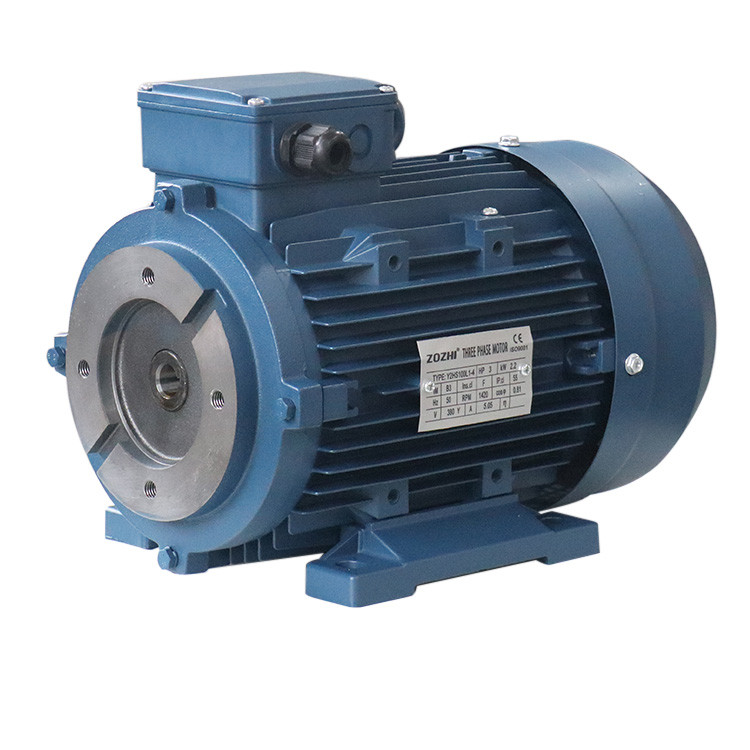

2.2kw 3Hp Hollow Shaft Motor Aluminum 1400rpm F class

  • 2.2kw 3Hp Hollow Shaft Motor Aluminum 1400rpm F class
  • 2.2kw 3Hp Hollow Shaft Motor Aluminum 1400rpm F class
  • 2.2kw 3Hp Hollow Shaft Motor Aluminum 1400rpm F class
  • 2.2kw 3Hp Hollow Shaft Motor Aluminum 1400rpm F class
  • 2.2kw 3Hp Hollow Shaft Motor Aluminum 1400rpm F class
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number Y2SH100L-4
Minimum Order Quantity 10PCS
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output 2.2kw/3hp Application Hydraulic System
Voltage/Frequency 220V 230/380V 60HZ Motor Bearing C&U (SKF For Choice)
Efficiency IE1 IE2 IE3 Motor Housing Aluminum
Protection Class IP54/IP55 Insulation Class F Class
Product Name Hollow Shaft Motor
Highlight

Hydraulic 3Hp Hollow Shaft Motor

,

Hydraulic Hollow Shaft Motor 2.2kw

,

Hydraulic Hollow Shaft Motor 1400rpm
Leave a Message
Product Description

2.2kw 3Hp Hollow Shaft Motor 1400rpm

Hollow Shaft Motor

Description



ZOZHI  Hydraulic Electric Motor



The direct-connected hydraulic motor is tightly integrated with the vane pump, eliminating the need for a pump sleeve coupling. Easy installation, good concentricity, smooth operation, low noise



2.2kw 3Hp Hollow Shaft Motor Aluminum 1400rpm F class 0

2.2kw 3Hp Hollow Shaft Motor Aluminum 1400rpm F class 1

2.2kw 3Hp Hollow Shaft Motor Aluminum 1400rpm F class 2





2.2kw 3Hp Hollow Shaft Motor Aluminum 1400rpm F class 3





2.2kw 3Hp Hollow Shaft Motor Aluminum 1400rpm F class 4







2.2kw 3Hp Hollow Shaft Motor Aluminum 1400rpm F class 5







Data



Model Rated Output Rated Current Rated Speed Eff Power Factor Starting Current Ts/tn Tmax/Tn Axis Bore Axis Key height Bore Depth Front Cover Oil Pump Fixed Position Oil Pump Model
HP KW A r/min % cosΦ times times Φx键宽 C E halt止口Φ Screw Hole Distance Model
Y2HS802-4 1 0.75 2 1390 74.5 0.76 6.0 2.3 2.3 12.7x3.2 14.35 35 82.55 106.3 M10 VP20,VP12,VP12/20
Y2HS802-4 1 0.75 2 1390 74.5 0.76 6.0 2.3 2.3 10.15x7齿 Φ13.65 35 82.55 106.3 M10 VP20,7齿花键 tooth key
Y2HS802-4 1 0.75 2 1390 74.5 0.76 6.0 2.3 2.3 12.4x9齿 Φ16.35 35 82.55 106.3 M10 VP20,9齿花键 tooth key
Y2HS802-4 1 0.75 2 1390 74.5 0.76 6.0 2.3 2.3 12x4 13.7 28 50.8 82.55M8 HGP-1A
Y2HS802-4 1 0.75 2 1390 74.5 0.76 6.0 2.3 2.3 15.875x4 17.7 32 82.55 106.3 M10 HGP-3A

Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 12.5x4 14 35 50.8 63.5x63.5 M8 GPY,HGP-2A
Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 12x4 13.7 28 50.8 82.55 M8 HGP-1A
Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 12.7x3.2 14.35 35 82.55 106.3 M10 VP20, VP12/15
Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 10.15x7齿 Φ13.65 35 82.55 106.3 M10 VP20,7齿花键 tooth key
Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 12.4x9齿 Φ16.35 35 82.55 106.3 M10 VP20,9齿花键 tooth key
Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 16x5 18 37 38 70x100 MB CBN CBT
Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 19.05x4.76 21.25 36 95.02 90x90 M10 VP30, VP40
Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 15.875x4 17.7 34 82.55 106.3 M10 HGP-3A

Y2HS100L-4 3 2.2 5 1430 81 0.82 7.0 2.2 2.3 12.5x4 14 35 50.8 63.5x63.5 M8 GPY HGP-2A
Y2HS100L-4 3 2.2 5 1430 81 0.82 7.0 2.2 2.3 19.05x4.76 21.25 38 82.55 106 M10 PV2R1
Y2HS100L-4 3 2.2 5 1430 81 0.82 7.0 2.2 2.3 19.05x4.76 21.25 36 95.02 90X90 M10 VP30, VP40
Y2HS100L-4 3 2.2 5 1430 81 0.82 7.0 2.2 2.3 16X5 18 37 38 70X100 MB CBN CBT
Y2HS100L-4 3 2.2 5 1430 81 0.82 7.0 2.2 2.3 12.7x3.2 14.35 35 82.55 106.3 M10 VP20, VP12/15
Y2HS100L-4 3 2.2 5 1430 81 0.82 7.0 2.2 2.3 15.875x4 17.7 34 82.55 106.3 M10 HGP-3A
Y2HS100L-4 3 2.2 5 1430 81 0.82 7.0 2.2 2.3 18x6 18 37 38.00 70X100 MB CBN CBT
Y2HS100L-4 3 2.2 5 1430 81 0.82 7.0 2.2 2.3 19.05x4.76 21.25 38 82.55 106 M10 PV2R1

Y2HS112M-4 5.5 4 8.8 1440 84.5 0.82 7.0 2.2 2.3 12.5x4 14 35 50.8 63.5x63.5 M8 GPY HGP-2A
Y2HS112M-4 5.5 4 8.8 1440 84.5 0.82 7.0 2.2 2.3 15.875x4 17.7 34 82.55 106.3 M10 HGP-3A
Y2HS112M-4 5.5 4 8.8 1440 84.5 0.82 7.0 2.2 2.3 16x5 18 37 38.00 70x100 MB CBN CBT
Y2HS112M-4 5.5 4 8.8 1440 84.5 0.82 7.0 2.2 2.3 19.05x4.76 21.25 38 82.55 106 M10 PV2R1, FA1
Y2HS112M-4 5.5 4 8.8 1440 84.5 0.82 7.0 2.2 2.3 19.05x4.76 21.25 36 95.02 90x90 M10 VP-30 VP-40
Y2HS112M-4 5.5 4 8.8 1440 84.5 0.82 7.0 2.2 2.3 22x5 24 50 96 90x90 M10 50T
Y2HS112M-4 5.5 4 8.8 1440 84.5 0.82 7.0 2.2 2.3 11.4x4 Φ15-4齿 37 38.00 70x100 MB CBN 4齿花键

Y2HS132S-4 7.5 5.5 11.8 1440 85.5 0.84 7.0 2.2 2.3 22x5 24 50 96 90x90 M10 50T-F
Y2HS132S-4 7.5 5.5 11.8 1440 85.5 0.84 7.0 2.2 2.3 16x5 18 37 38.00 70x100 MB CBN CBT
Y2HS132S-4 7.5 5.5 11.8 1440 85.5 0.84 7.0 2.2 2.3 12.5x4 14 35 50.8 63.5x63.5 M8 GPY HGP-2A
Y2HS132S-4 7.5 5.5 11.8 1440 85.5 0.84 7.0 2.2 2.3 15.875x4 17.7 34 82.55 106.3 M10 HGP-3A
Y2HS132S-4 7.5 5.5 11.8 1440 85.5 0.84 7.0 2.2 2.3 19.05x4.76 21.25 38 82.55 106 M10 PV2R1, FA1
Y2HS132S-4 7.5 5.5 11.8 1440 85.5 0.84 7.0 2.2 2.3 25.4x6.35 28.2 50 101.6 Φ146 M12 T6B PV2R2
Y2HS132S-4 7.5 5.5 11.8 1440 85.5 0.84 7.0 2.2 2.3 30x8(7) 33 48 160 Φ187 M12 150T

Y2HS132M-4 10 7.5 15.6 1440 87 0.85 7.0 2.2 2.3 15.875x4 17.7 34 82.55 106.3 M10 HGP-3A
Y2HS132M-4 10 7.5 15.6 1440 87 0.85 7.0 2.2 2.3 19.05x4.76 21.5 38 82.55 106 M10 PV2R1 FA
Y2HS132M-4 10 7.5 15.6 1440 87 0.85 7.0 2.2 2.3 22.23x6.35 25.08 35 101.6 146 M12 T6C
Y2HS132M-4 10 7.5 15.6 1440 87 0.85 7.0 2.2 2.3 25.4x6.35 28.2 50 101.6 146 M12 T6B PV2R2
Y2HS132M-4 10 7.5 15.6 1440 87 0.85 7.0 2.2 2.3 30x8(7) 33 48 160 Φ187 M12 150T
Y2HS132M-4 10 7.5 15.6 1440 87 0.85 7.0 2.2 2.3 22.23x4.76 24.5 52 101.6 146 M12 S25V(S20V)25VQ
