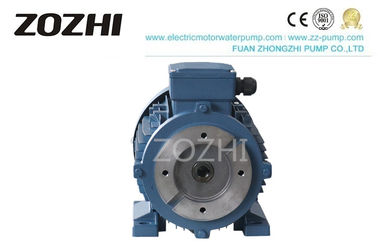

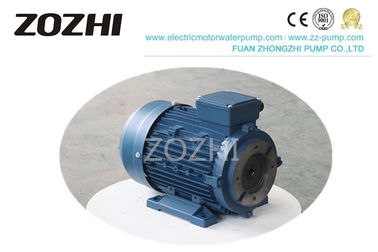

IP54 IP55 Inner Shaft Hydraulic Motor 2HP 3HP 5.5HP 7.5HP For Die Casting Machinery

China IP54 IP55 Inner Shaft Hydraulic Motor 2HP 3HP 5.5HP 7.5HP For Die Casting Machinery supplier
IP54 IP55 Inner Shaft Hydraulic Motor 2HP 3HP 5.5HP 7.5HP For Die Casting Machinery supplier IP54 IP55 Inner Shaft Hydraulic Motor 2HP 3HP 5.5HP 7.5HP For Die Casting Machinery supplier

Large Image :  IP54 IP55 Inner Shaft Hydraulic Motor 2HP 3HP 5.5HP 7.5HP For Die Casting Machinery

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: hydraulic motor

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Output: 2HP 3HP 5.5HP 7.5HP Application: Hydraulic System
Voltage/Frequency: 220V 230/380V 60HZ Motor Bearing:: C&U (SKF For Choice)
Efficiency:: IE1 IE2 IE3 Motor Housing:: Aluminum
Protection Class:: IP54/IP55 Insulation Class:: F Class

IP54 IP55 Inner Shaft Hydraulic Motor 2HP 3HP 5.5HP 7.5HP For Die Casting Machinery



Description



Single-phase/ three-phase squirrel cage induction motor with in-line shaft design. Directly matched with the corresponding pump, it can be closely matched with the oil pump without the need for a pump sleeve coupling



The mating surface of the motor and the pump is processed with high precision, and it is coaxial with the pump. It requires no professional installation, stable operation, low noise, and low heat.



The hydraulic series is complete and can be matched with the hydraulic pumps of all manufacturers on the market, and special specifications can be customized according to customer needs.





Compact
Motor technology is exquisite, compact structure, beautiful appearance, design


safer
The oil pump and the motor are equipped with an oil drain groove to prevent the oil from immersing in the motor, ensuring the safety of the motor and easier disassembly.


Low noise
Hydraulic motors have stricter quality requirements, low noise, low temperature rise, and higher efficiency.



efficient
Adopt reasonable measures, number of rotor slots, fan parameters, and forward windings to reduce losses and improve efficiency by 2% -8%



Smoother operation
Couplings, pump brackets, common floor, and other components are reduced, the quarter length is shortened, the operation is smoother, noise is lower, and oil pump replacement is more convenient

hydraulic motor



hydraulic motor



Application

Pvc Pipe Manufacturing Machinery
die casting machinery
plastic machinery
shoe machinery
cutting machinery
hydraulic press machinery

hydraulics

Note



1. Be sure to correct concentricity during installation, allow 0.1mm deviation

Put the motor in the axial direction, but the flat key of the oil pump and apply a little butter, and slowly insert it into the motor. Pay attention to it.



2. Avoid dust and foreign matter during installation

After fully inserting the oil pump, the few screws that are locked should not be too tight, which is almost enough. Lock the screwdriver and turn it from the motor blades to see if it is smooth. If it is too tight, adjust the screws of the oil pump. Too tight will make noise


3. After installation, determine the direction of rotation of the motor and correct the concentricity again

hydraulic motor





Data


hydraulic motor
