100% Copper Wier Hydraulic Electric Motor Inner Shaft Aluminum Housing 60HZ
Place of Origin | China |
---|---|
Brand Name | ZOZHI |
Certification | ISO |
Model Number | hydraulic motor |
Minimum Order Quantity | 10PCS |
Price | negotiated |
Packaging Details | Packed in cartons,veneer case or wooden case. |
Delivery Time | 25 working days after received your payment |
Payment Terms | T/T, L/C |
Supply Ability | 10000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xOutput | 0.5kw 1.5kw 2.2kw 4kw 5.5kw 7.5kw | Application | Hydraulic System |
---|---|---|---|
Voltage/Frequency | 220V 230/380V 60HZ | Motor Bearing | C&U (SKF For Choice) |
Efficiency | IE1 IE2 IE3 | Motor Housing | Aluminum |
Protection Class | IP54/IP55 | Insulation Class | F Class |
Product Name | Hollow Shaft Motor | ||
High Light | hollow shaft electric motor,hollow shaft hydraulic motor,aluminium Hydraulic Electric Motor |

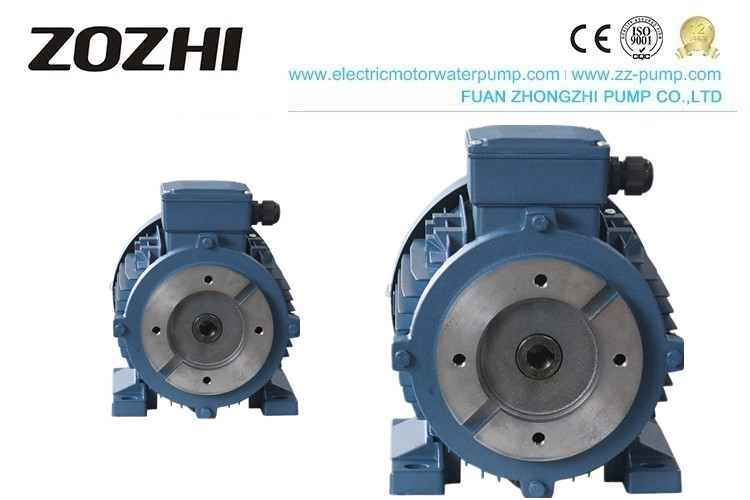

100% Copper Wier Hydraulic Electric Motor Inner Shaft Aluminum Housing 60HZ
Hollow Shaft Motor
Description
Hydraulic Electric Motor is made of high-quality aluminum. With optimized construction design, they can ensure the requirement of structural rigidity and intensity. Silicon steel plate is used in stator core and rotor core. The low loss has good insulation on the surface, which ensures higher efficiency. High-quality insulation material combines the perfect insulation system, which makes the insulation completely without clearance, high rigidity of the winding end, it can endure switching and reversing intensity, F class insulation makes the motor with higher heat stability and longer life.
We use die-casting technology to ensure the stable quality of the rotor and aesthetic appearance.
The bearing and motor construction design focus on motor type, the force on the motor, speed, lubricate type, including bearing, design of oil sea and lubricant, etc. It has the advantage of credible performance and easy maintenance. We generally use a closed path for the frame size from 250 and below; we use an open type for frame sizes above 250.Bearing.Regreasing can be done during running. Perfect primer ensures the motors with good appearance and the motors are durable. We can also use a special corrosion protection coating.
Application
Direct-connected with vane pump for plastic machinery
Note
1. Be sure to correct concentricity during installation. Allow 0.1mm deviation
2. Be sure to confirm the matching size of the oil pump and motor before purchasing. Please consult for more details
3. If you don't know what oil pump to match, please measure the "shaft size," "flange inner diameter," and "hole distance" of your motor? We will find a suitable motor for you based on the size
Data
Model | Rated Output | Rated Current | Rated Speed | Eff | Power Factor | Starting Current | Ts/tn | Tmax/Tn | Axis Bore | Axis Key height | Bore Depth | Front Cover | Oil Pump Fixed Position | Oil Pump Model | |
HP | KW | A | r/min | % | cosΦ | times | times | Φx键宽 | C | E | halt止口Φ | Screw Hole Distance | Model | ||
Y2HS802-4 | 1 | 0.75 | 2 | 1390 | 74.5 | 0.76 | 6.0 | 2.3 | 2.3 | 12.7x3.2 | 14.35 | 35 | 82.55 | 106.3 M10 | VP20,VP12,VP12/20 |
Y2HS802-4 | 1 | 0.75 | 2 | 1390 | 74.5 | 0.76 | 6.0 | 2.3 | 2.3 | 10.15x7齿 | Φ13.65 | 35 | 82.55 | 106.3 M10 | VP20,7齿花键 tooth key |
Y2HS802-4 | 1 | 0.75 | 2 | 1390 | 74.5 | 0.76 | 6.0 | 2.3 | 2.3 | 12.4x9齿 | Φ16.35 | 35 | 82.55 | 106.3 M10 | VP20,9齿花键 tooth key |
Y2HS802-4 | 1 | 0.75 | 2 | 1390 | 74.5 | 0.76 | 6.0 | 2.3 | 2.3 | 12x4 | 13.7 | 28 | 50.8 | 82.55M8 | HGP-1A |
Y2HS802-4 | 1 | 0.75 | 2 | 1390 | 74.5 | 0.76 | 6.0 | 2.3 | 2.3 | 15.875x4 | 17.7 | 32 | 82.55 | 106.3 M10 | HGP-3A |
Y2HS90L-4 | 2 | 1.5 | 3.7 | 1400 | 79 | 0.79 | 6.5 | 2.3 | 2.3 | 12.5x4 | 14 | 35 | 50.8 | 63.5x63.5 M8 | GPY,HGP-2A |
Y2HS90L-4 | 2 | 1.5 | 3.7 | 1400 | 79 | 0.79 | 6.5 | 2.3 | 2.3 | 12x4 | 13.7 | 28 | 50.8 | 82.55 M8 | HGP-1A |
Y2HS90L-4 | 2 | 1.5 | 3.7 | 1400 | 79 | 0.79 | 6.5 | 2.3 | 2.3 | 12.7x3.2 | 14.35 | 35 | 82.55 | 106.3 M10 | VP20, VP12/15 |
Y2HS90L-4 | 2 | 1.5 | 3.7 | 1400 | 79 | 0.79 | 6.5 | 2.3 | 2.3 | 10.15x7齿 | Φ13.65 | 35 | 82.55 | 106.3 M10 | VP20,7齿花键 tooth key |
Y2HS90L-4 | 2 | 1.5 | 3.7 | 1400 | 79 | 0.79 | 6.5 | 2.3 | 2.3 | 12.4x9齿 | Φ16.35 | 35 | 82.55 | 106.3 M10 | VP20,9齿花键 tooth key |
Y2HS90L-4 | 2 | 1.5 | 3.7 | 1400 | 79 | 0.79 | 6.5 | 2.3 | 2.3 | 16x5 | 18 | 37 | 38 | 70x100 MB | CBN CBT |
Y2HS90L-4 | 2 | 1.5 | 3.7 | 1400 | 79 | 0.79 | 6.5 | 2.3 | 2.3 | 19.05x4.76 | 21.25 | 36 | 95.02 | 90x90 M10 | VP30, VP40 |
Y2HS90L-4 | 2 | 1.5 | 3.7 | 1400 | 79 | 0.79 | 6.5 | 2.3 | 2.3 | 15.875x4 | 17.7 | 34 | 82.55 | 106.3 M10 | HGP-3A |
Y2HS100L-4 | 3 | 2.2 | 5 | 1430 | 81 | 0.82 | 7.0 | 2.2 | 2.3 | 12.5x4 | 14 | 35 | 50.8 | 63.5x63.5 M8 | GPY HGP-2A |
Y2HS100L-4 | 3 | 2.2 | 5 | 1430 | 81 | 0.82 | 7.0 | 2.2 | 2.3 | 19.05x4.76 | 21.25 | 38 | 82.55 | 106 M10 | PV2R1 |
Y2HS100L-4 | 3 | 2.2 | 5 | 1430 | 81 | 0.82 | 7.0 | 2.2 | 2.3 | 19.05x4.76 | 21.25 | 36 | 95.02 | 90X90 M10 | VP30, VP40 |
Y2HS100L-4 | 3 | 2.2 | 5 | 1430 | 81 | 0.82 | 7.0 | 2.2 | 2.3 | 16X5 | 18 | 37 | 38 | 70X100 MB | CBN CBT |
Y2HS100L-4 | 3 | 2.2 | 5 | 1430 | 81 | 0.82 | 7.0 | 2.2 | 2.3 | 12.7x3.2 | 14.35 | 35 | 82.55 | 106.3 M10 | VP20, VP12/15 |
Y2HS100L-4 | 3 | 2.2 | 5 | 1430 | 81 | 0.82 | 7.0 | 2.2 | 2.3 | 15.875x4 | 17.7 | 34 | 82.55 | 106.3 M10 | HGP-3A |
Y2HS100L-4 | 3 | 2.2 | 5 | 1430 | 81 | 0.82 | 7.0 | 2.2 | 2.3 | 18x6 | 18 | 37 | 38.00 | 70X100 MB | CBN CBT |
Y2HS100L-4 | 3 | 2.2 | 5 | 1430 | 81 | 0.82 | 7.0 | 2.2 | 2.3 | 19.05x4.76 | 21.25 | 38 | 82.55 | 106 M10 | PV2R1 |
Y2HS112M-4 | 5.5 | 4 | 8.8 | 1440 | 84.5 | 0.82 | 7.0 | 2.2 | 2.3 | 12.5x4 | 14 | 35 | 50.8 | 63.5x63.5 M8 | GPY HGP-2A |
Y2HS112M-4 | 5.5 | 4 | 8.8 | 1440 | 84.5 | 0.82 | 7.0 | 2.2 | 2.3 | 15.875x4 | 17.7 | 34 | 82.55 | 106.3 M10 | HGP-3A |
Y2HS112M-4 | 5.5 | 4 | 8.8 | 1440 | 84.5 | 0.82 | 7.0 | 2.2 | 2.3 | 16x5 | 18 | 37 | 38.00 | 70x100 MB | CBN CBT |
Y2HS112M-4 | 5.5 | 4 | 8.8 | 1440 | 84.5 | 0.82 | 7.0 | 2.2 | 2.3 | 19.05x4.76 | 21.25 | 38 | 82.55 | 106 M10 | PV2R1, FA1 |
Y2HS112M-4 | 5.5 | 4 | 8.8 | 1440 | 84.5 | 0.82 | 7.0 | 2.2 | 2.3 | 19.05x4.76 | 21.25 | 36 | 95.02 | 90x90 M10 | VP-30 VP-40 |
Y2HS112M-4 | 5.5 | 4 | 8.8 | 1440 | 84.5 | 0.82 | 7.0 | 2.2 | 2.3 | 22x5 | 24 | 50 | 96 | 90x90 M10 | 50T |
Y2HS112M-4 | 5.5 | 4 | 8.8 | 1440 | 84.5 | 0.82 | 7.0 | 2.2 | 2.3 | 11.4x4 | Φ15-4齿 | 37 | 38.00 | 70x100 MB | CBN 4齿花键 |
Y2HS132S-4 | 7.5 | 5.5 | 11.8 | 1440 | 85.5 | 0.84 | 7.0 | 2.2 | 2.3 | 22x5 | 24 | 50 | 96 | 90x90 M10 | 50T-F |
Y2HS132S-4 | 7.5 | 5.5 | 11.8 | 1440 | 85.5 | 0.84 | 7.0 | 2.2 | 2.3 | 16x5 | 18 | 37 | 38.00 | 70x100 MB | CBN CBT |
Y2HS132S-4 | 7.5 | 5.5 | 11.8 | 1440 | 85.5 | 0.84 | 7.0 | 2.2 | 2.3 | 12.5x4 | 14 | 35 | 50.8 | 63.5x63.5 M8 | GPY HGP-2A |
Y2HS132S-4 | 7.5 | 5.5 | 11.8 | 1440 | 85.5 | 0.84 | 7.0 | 2.2 | 2.3 | 15.875x4 | 17.7 | 34 | 82.55 | 106.3 M10 | HGP-3A |
Y2HS132S-4 | 7.5 | 5.5 | 11.8 | 1440 | 85.5 | 0.84 | 7.0 | 2.2 | 2.3 | 19.05x4.76 | 21.25 | 38 | 82.55 | 106 M10 | PV2R1, FA1 |
Y2HS132S-4 | 7.5 | 5.5 | 11.8 | 1440 | 85.5 | 0.84 | 7.0 | 2.2 | 2.3 | 25.4x6.35 | 28.2 | 50 | 101.6 | Φ146 M12 | T6B PV2R2 |
Y2HS132S-4 | 7.5 | 5.5 | 11.8 | 1440 | 85.5 | 0.84 | 7.0 | 2.2 | 2.3 | 30x8(7) | 33 | 48 | 160 | Φ187 M12 | 150T |
Y2HS132M-4 | 10 | 7.5 | 15.6 | 1440 | 87 | 0.85 | 7.0 | 2.2 | 2.3 | 15.875x4 | 17.7 | 34 | 82.55 | 106.3 M10 | HGP-3A |
Y2HS132M-4 | 10 | 7.5 | 15.6 | 1440 | 87 | 0.85 | 7.0 | 2.2 | 2.3 | 19.05x4.76 | 21.5 | 38 | 82.55 | 106 M10 | PV2R1 FA |
Y2HS132M-4 | 10 | 7.5 | 15.6 | 1440 | 87 | 0.85 | 7.0 | 2.2 | 2.3 | 22.23x6.35 | 25.08 | 35 | 101.6 | 146 M12 | T6C |
Y2HS132M-4 | 10 | 7.5 | 15.6 | 1440 | 87 | 0.85 | 7.0 | 2.2 | 2.3 | 25.4x6.35 | 28.2 | 50 | 101.6 | 146 M12 | T6B PV2R2 |
Y2HS132M-4 | 10 | 7.5 | 15.6 | 1440 | 87 | 0.85 | 7.0 | 2.2 | 2.3 | 30x8(7) | 33 | 48 | 160 | Φ187 M12 | 150T |
Y2HS132M-4 | 10 | 7.5 | 15.6 | 1440 | 87 | 0.85 | 7.0 | 2.2 | 2.3 | 22.23x4.76 | 24.5 | 52 | 101.6 | 146 M12 | S25V(S20V)25VQ |
