Horizontal Three Phase Hollow Shaft Gear Motor Clockwise Rotation Direction

China Horizontal Three Phase Hollow Shaft Gear Motor Clockwise Rotation Direction supplier
Horizontal Three Phase Hollow Shaft Gear Motor Clockwise Rotation Direction supplier

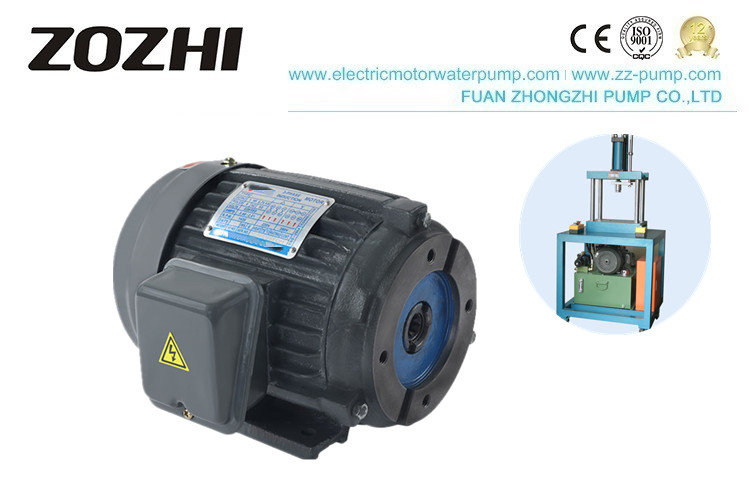

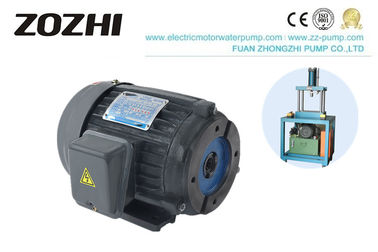

Large Image :  Horizontal Three Phase Hollow Shaft Gear Motor Clockwise Rotation Direction

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: hydraulic electric motor

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Pole: 4 Rotation Direction: Clockwise
Motor Bearing:: C&U (SKF For Choice) Efficiency:: IE1,IE2,IE3
Motor Housing:: Aluminum Insulation Class:: F Class
High Light:

hollow shaft electric motor

,

hollow shaft hydraulic motor

Hot Selling Three Phase Horizontal Motor Hollow Shaft Hydraulic Motor



Description



Motor's hydraulic power station is able to use for power pack design. could match with gear pump, vane pumps and all kinds of hydraulic pump



we offer all kinds of custom made hydraulic power station, hydraulic power pack.



1. Frame No.71-90mmtors don’t have a hanging ring on top.
2.shaft inner diameter please refer to relative pump spec shec.sheet.
3.used fully sealed grey cast iron housing.
4.comply with the CE safety standard.






Ambient temperature:-15°C<0<40°C

Sea level: not exceed 1000m

Rated voltage:±5%



Product Specifications:

Model Number Shaft End Size
Dimension mount distance bolt size ID span shaft width keyway
TFP 56 M6x1 56 12 13.2 3
PA, KP, HGP-2A 63.5 M8x1.25 50.77 12.5 13.8 4
DS, FB1 98 M8x1.25 70 16 18.2 5
HGP-1A 64 M6x1 30 12 13.7 4
15L, VPE-F8~F24 106 M10x1.5 82.55 12.7 14.3 3.175
TSP, EGB 106 M10x1.5 82.55 15.87 17.6 3.97
VVP-F8-F20 106 M10x1.5 82.55 15.87 17.6 3.97
HGP-3A 106 M10x1.5 82.55 15.87 17.6 3.97
NOP, TOP 68 M8x1.25 47 14 16 4
A16, A22, VQ15 106 M8x1.25 82.55 19.05 21.7 4.8
PV2R1 106 M8x1.25 82.55 19.05 21.7 4.8
30L, 50T 90 M10x1.5 95.02 19.05 21.7 4.8
VPE-F25~F40 90 M10x1.5 95.02 19.05 21.7 4.8
PB 106 M10x1.5 82.55 20 22 5
A37, A36, P36, P46 106 M12x1.75 101.6 22.23 25.01 6.35
VQ25 106 M12x1.75 101.6 22.23 25.01 6.35
PV2R2 146 M12x1.75 101.6 25.4 28.18 6.35
150T 187 M12x1.75 160 30 33 7







Application



hydraulic electric motor hollow shaft motor



hydraulic electric motor hollow shaft electric motor



Production line

Horizontal Three Phase Hollow Shaft Gear Motor Clockwise Rotation Direction 2




Horizontal Three Phase Hollow Shaft Gear Motor Clockwise Rotation Direction 3



HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
water pump PRESSURE SWITCH Horizontal Three Phase Hollow Shaft Gear Motor Clockwise Rotation Direction 9
water pump water pump mechnical seal

Horizontal Three Phase Hollow Shaft Gear Motor Clockwise Rotation Direction 13



Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What’s the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept to use our logo?
    A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
