3.7HP 1.5KW 3 Phase Ac Induction Inner Shaft Clockwise Rotation For Oil Pump

  • 3.7HP 1.5KW 3 Phase Ac Induction Inner Shaft Clockwise Rotation For Oil Pump
  • 3.7HP 1.5KW 3 Phase Ac Induction Inner Shaft Clockwise Rotation For Oil Pump
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number hydraulic electric motor
Minimum Order Quantity 10PCS
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Pole 4 Rotation Direction Clockwise
Motor Bearing C&U (SKF For Choice) Efficiency IE1,IE2,IE3
Motor Housing Aluminum Insulation Class F Class
Product Name Hollow Shaft Motor
High Light

Electric Hydraulic Induction Pump Motor

,

1.5KW Hydraulic Induction Pump Motor

,

3.7HP Hydraulic Induction Pump Motor
Leave a Message
Product Description

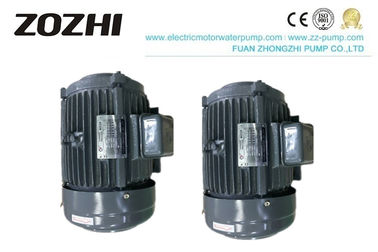

3.7HP 1.5KW 3 phase ac induction inner shaft electric motor hydraulic motor hollow shaft motor for oil pump

Hollow Shaft Motor

Description



Hydraulic series of machines are competing. they can be matched with hydraulic pumps from all factories on the market and can be customized according to customers' requirements


A complete inventory and prompt delivery, with standard specifications of finished products and other unique parts of semi-finished products, can meet the demand for investment and procurement at any time


The quality is stable and durable, the entire load design of the motor is higher than the standard value, and the high-pressure wear-resistant life of axle steel after heat treatment is long.


The factory has all kinds of processing and computer design equipment and can produce all products according to customers' needs.



low noise
lower temperature raising and starting current
higher starting torque
high efficiency and reliable operation
energy saving
easy maintenance



Product Specifications:

Model Number Shaft End Size
Dimension mount distance bolt size ID span shaft width keyway
TFP 56 M6x1 56 12 13.2 3
PA, KP, HGP-2A 63.5 M8x1.25 50.77 12.5 13.8 4
DS, FB1 98 M8x1.25 70 16 18.2 5
HGP-1A 64 M6x1 30 12 13.7 4
15L, VPE-F8~F24 106 M10x1.5 82.55 12.7 14.3 3.175
TSP, EGB 106 M10x1.5 82.55 15.87 17.6 3.97
VVP-F8-F20 106 M10x1.5 82.55 15.87 17.6 3.97
HGP-3A 106 M10x1.5 82.55 15.87 17.6 3.97
NOP, TOP 68 M8x1.25 47 14 16 4
A16, A22, VQ15 106 M8x1.25 82.55 19.05 21.7 4.8
PV2R1 106 M8x1.25 82.55 19.05 21.7 4.8
30L, 50T 90 M10x1.5 95.02 19.05 21.7 4.8
VPE-F25~F40 90 M10x1.5 95.02 19.05 21.7 4.8
PB 106 M10x1.5 82.55 20 22 5
A37, A36, P36, P46 106 M12x1.75 101.6 22.23 25.01 6.35
VQ25 106 M12x1.75 101.6 22.23 25.01 6.35
PV2R2 146 M12x1.75 101.6 25.4 28.18 6.35
150T 187 M12x1.75 160 30 33 7

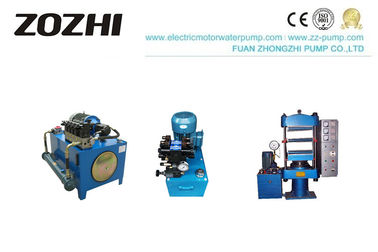

Application



3.7HP 1.5KW 3 Phase Ac Induction Inner Shaft Clockwise Rotation For Oil Pump 0



hydraulic electric motor hollow shaft electric motor



Production line

3.7HP 1.5KW 3 Phase Ac Induction Inner Shaft Clockwise Rotation For Oil Pump 2




3.7HP 1.5KW 3 Phase Ac Induction Inner Shaft Clockwise Rotation For Oil Pump 3



HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
water pump PRESSURE SWITCH 3.7HP 1.5KW 3 Phase Ac Induction Inner Shaft Clockwise Rotation For Oil Pump 9
water pump water pump mechnical seal

3.7HP 1.5KW 3 Phase Ac Induction Inner Shaft Clockwise Rotation For Oil Pump 13

Hollow Shaft Motor

Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available; feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making; also, we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What's the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
