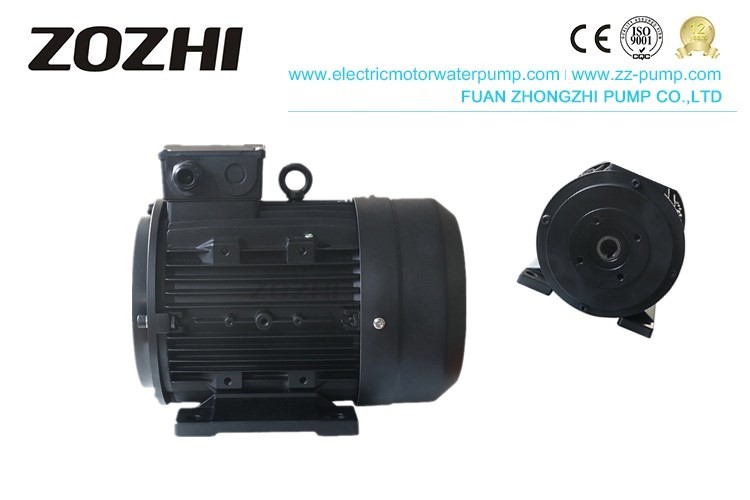

Pressure Pump Hollow Shaft Motor High Efficiency 100L2-4 3KW Clockwise Rotation

Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number HS100L2-4
Minimum Order Quantity 10PCS
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output 3KW/4HP Pole 4
Rotation Direction Clockwise Motor Bearing C&U (SKF For Choice)
Efficiency IE1,IE2,IE3 Motor Housing Aluminum
Protection Class IP54/IP55 Insulation Class F Class
Product Name Hollow Shaft Motor
High Light

Pressure Pump Hollow Shaft Motor

,

Hollow 3KW Shaft Motor

,

Hollow Clockwise Rotation Shaft Motor

Leave a Message
Product Description

high-efficiency Hollow Shaft Electric Motor 100L2-4 3KW For Pressure Pump

Hollow Shaft Motor

Hollow Shaft Electric Motor Description



Mode: 100L2-4                             Horsepower:4

RPM:1400                                    Shaft Size:24mm Hollow

Voltage: 400V                               Hertz: 50

Motor housing: Aluminum            bearing: C&U

Shaft: C#45                                  Insulation: Class F

Protection: IP55                           Installation: B3 Hollow shaft 24mm



Stator&Rotor: 1. Cold-rolled silicon steel sheet by high-speed punching machine. 2.100% high-quality copper wire



100L2-4 three-phase A.C. aluminum housing motor adopts hollow metal tube design, selects high-quality materials, optimizes mechanical design, and maintains standard engines' technical and maintenance advantages.


Compared to standard motors, a reasonable wall thickness of the hollow shaft design can save a lot of material under similar load conditions.


The hollow shaft induction motor has good thermal conductivity, low-temperature rise, low noise, low current, ample starting torque, high efficiency, and energy-saving. 100% copper coil, high-quality bearing, tall and light rotor, the rigorous assembly process



Advantage:



1. High-quality materials, low power loss, low current, low-temperature rise, good heat dissipation, high efficiency, and energy-saving.


2. high-quality bearings, rigorous process, low noise operation.


3. Tailored for professional equipment, the shaft extension is subjected to high-frequency quenching treatment, significantly improving mechanical strength and seamlessly connecting with the equipment to realize worry-free operation.





Main Specification Standard Optional
Motor housing Aluminum
Stator&Rotor

1. Cold-rolled silicon steel sheet by high-speed punching machine.

2.100% high-quality copper wire

bearing C & U
Shaft C#45
Insulation Class F
Protection IP55
Voltage 220/380V Three Phase
Frequency 60HZ
thermal protection Yes
Installation B3 Hollow shaft 24mm





Hollow Shaft Electric Motor Application

100L2-4 hollow shaft A.C. motors are designed for use with NHD150 pumps and designed for various high-pressure washer machines.



NHD150 pumps can operate at a maximum pressure of 150 bar and with water temperatures up to 65°C (150F).


This model pump and ZOZHI hollow shaft motor(100L2-4) are excellent for fitting professional high-pressure washers.



hollow shaft electric motor



Production line

Pressure Pump Hollow Shaft Motor High Efficiency 100L2-4 3KW Clockwise Rotation 1



Production data

Three-Phase 4 Poles 1500Rpm 50Hz
FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F.   V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.80 78 400 7.4
100L1-4 2.2 3 1400 0.80 81 400 5.1
100L2-4 3 4 1410 0.80 81 400 6.9
100L3-4 4 5.5 1420 0.80 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.80 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.80 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.90 85 400 17.8
132M2-4 11 15 1430 0.90 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34



Pressure Pump Hollow Shaft Motor High Efficiency 100L2-4 3KW Clockwise Rotation 2



HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
PRESSURE SWITH PRESSURE SWITCH Pressure Pump Hollow Shaft Motor High Efficiency 100L2-4 3KW Clockwise Rotation 8
water pump water pump mechnical seal

Pressure Pump Hollow Shaft Motor High Efficiency 100L2-4 3KW Clockwise Rotation 12

Hollow Shaft Motor

Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available; feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making; also, we can advise how to make the products according to customers' target prices.
