QB90 Household Pressure Electric Water Transfer Pump For 5 Floors House

QB90  Household Pressure Electric Water Transfer Pump For 5 Floors House
QB90  Household Pressure Electric Water Transfer Pump For 5 Floors House QB90  Household Pressure Electric Water Transfer Pump For 5 Floors House QB90  Household Pressure Electric Water Transfer Pump For 5 Floors House

Large Image :  QB90 Household Pressure Electric Water Transfer Pump For 5 Floors House

Product Details:
Place of Origin: China
Brand Name: ZOZHI
Certification: CE/SGS/ISO
Model Number: QB-90
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negociated
Packaging Details: Packed in cartons , overall size:330x180x220mm/pc, N.W.: 9.5kgs
Delivery Time: 25 working days after received your payment
Supply Ability: 30000pcs per month
Detailed Product Description
Product Name: Electric Motor Water Pump Power: 1.5 / 1.1
Flow Max: 90 L/min Head Max: 60 M
Suction Max: 9 M
High Light:

electronic water pump

,

commercial electric water pump

QB90 Household Pressure Electric Clean Water Pump For 5 Floors House



QB90  Household Pressure Electric Water Transfer Pump For 5 Floors House 0



QB series peripheral pumps are mainly used to transfer clean water or other liquid, similar to water character. Therefore, it is suitable for domestic water supply, automatic water sprinkler system, small air conditioner system, supporting equipment, etc.



Electric Motor Water Pump Applications:



QB series water pumps are a good helper to pump well water and pressurize tap water and hot water pipe.



It can help supply living water and water gardens, and vegetable greenhouse.



You can use it on the farm and garden and anywhere you need to pump water.





Electric Motor Water Pump Description:



The QB90 clean water pump has a 0.5HP motor to pump a large amount of water in no time!



It has a peak water flow of 35L/min and a Delivery Head of 35 meters with Suction from up to 9 Metres.



It is economical, reliable, safe, and easy to operate.



This Water Pump is an ideal unit for dependable continuous operation such as pool pumping, increasing

the water pressure in the pipe, garden sprinkling, irrigation, cleaning and garden applications, etc.





Technical data:



Model Power Q.Max H.Max S.Max Pipe Dia Packing Dim. N.W Qty/20ft Speed Ampere
kw hp L/min m m mm mm kg pcs rpm 1~220
QB-60 0.37 0.50 35 35 9 25x25 280x145x180 5.3 3800 2850 2.5
QB-70 0.55 0.75 40 40 9 25x25 330x180x220 9.5 2800 2850 3.8
QB-80 0.75 1 50 50 9 40x40 330x180x220 10.0 2800 2850 5.2
QB-90 1.1 1.5 60 60 9 40x40 425x200x220 11.0 1650 2850 7.0


QB90  Household Pressure Electric Water Transfer Pump For 5 Floors House 1



Pictures:

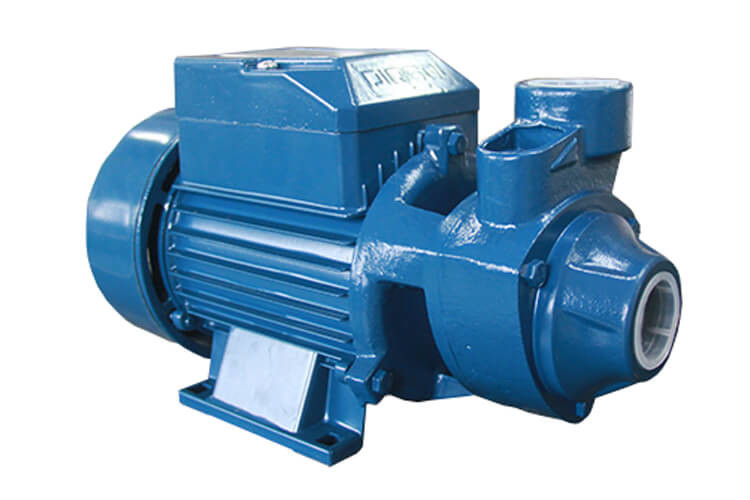

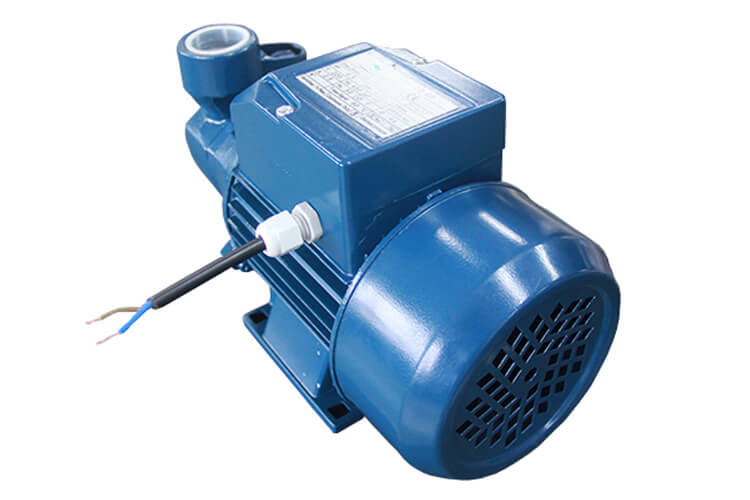

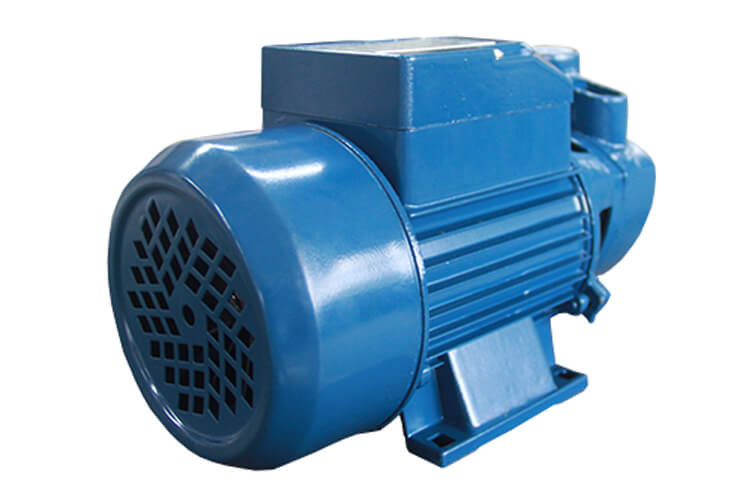

peripheral pump

Peripheral pump



Advantages:





Highly Efficient
Precise centering
Robust construction
Flawless design
Supplied with asbestos or graphite packing or M. seal
Non-corrosive






Electric Motor Water Pump Guarantee:


Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:


1). We are happy that the customer gives us some suggestions for price and products.
2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers all over the world with speed and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM



FAQ:

1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.

2). Q: Are you a factory or a trading company?
A: we make water pumps, motors, alternators, and diesel generators since 2006.

3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEMs are welcome!

4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.

5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.

6). Q: How about the warranty?
