End Suction Centrifugal Electric Motor Water Pump HIGH Effective Dkm Series

China Fuan Zhongzhi Pump Co., Ltd. certification
China Fuan Zhongzhi Pump Co., Ltd. certification
Zhongzhi does really good on the design and manufacturing of the products. Experienced engineers service us very nice.

—— Vadim Zabiiaka

Good quality, great manufacturers, we are happy with your products.

—— Mr.Reuben kimwolo

Have been working together for more than 3 years very professional. all products work fine in our types of equipment. Thank you.

—— Mr.Yılmaz Türkoğlu

Thank you so much for Zhongzhi company to make our project run smoothly.

—— Mehmet Sefa KEÇİK

Technical issues resolved, reputation is very good.

—— Mr.ANTONIS GKANIS

I'm Online Chat Now

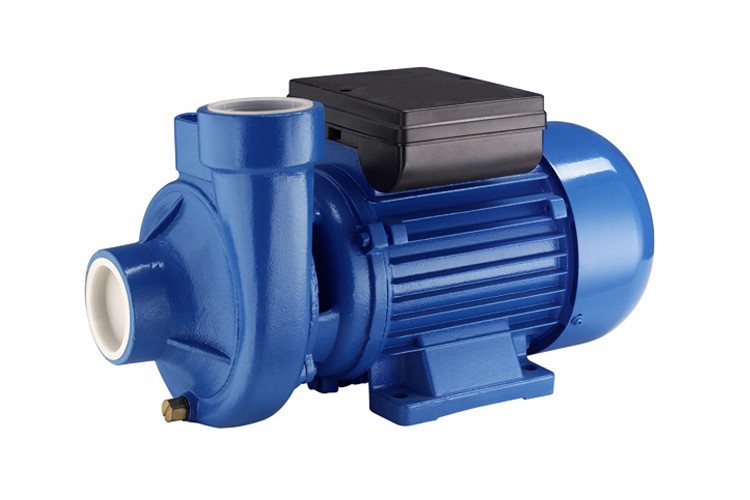

End Suction Centrifugal Electric Motor Water Pump HIGH Effective Dkm Series

End Suction Centrifugal Electric Motor Water Pump HIGH Effective Dkm Series
End Suction Centrifugal Electric Motor Water Pump HIGH Effective Dkm Series

Large Image :  End Suction Centrifugal Electric Motor Water Pump HIGH Effective Dkm Series

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: CE/SGS/ISO
Model Number: 2DKM-20-1

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons , overall size:380x235x250mm/pc, N.W.: 25kgs
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 30000pcs/month
Detailed Product Description
Application: Boosting Waste Water Output: 2.0HP / 15KW
Flow Max: 540 L/Min Head Max: 23M
Usage: Waste Water Inlet/Outlet: 2"x2"
Feature: Big Flow Pressure: High Pressure
High Light:

electronic water pump

,

commercial electric water pump

End Suction Centrifugal Electric Motor Water Pump HIGH Effective Dkm Series

INSTALLATION AND USE
8These pumps are suitable for handling clean water without abrasive particles and liquids that are chemically non-aggressive to the pump components. Reliable, economical and simple to use, they are suitable for domestic use and in particular for distributing water in combination with small pressure sets, for irrigating gardens. The pumps must be installed in a covered area, protected against the inclement weather.

TECHNICAL DATA


ModelOutputAR.P.M.Q.MaxH.MaxS.HeadPipe DiaLxWxHN.W.
HP / KW1~220V(l/min)(m)(M)(mm)(Kg)
1.5DKM-160.75 / 0.55428501801691.5"x1.5"320x180x2109.9
1.5DKM-201 / 0.754.828502402091.5"x1.5"320x180x21012
2DKM-161.5 / 1.16.228504802192"x2"380x235x25023
2DKM-202.0 / 1.59.428505402392"x2"380x235x25025

Other voltages and frequencies available on request


STRUCTURAL CHARACTERISTICS


Main SpecificationStandardOptional
Transmission mediumClean Water, sewage water, and fluids
Pump bodyCast Iron
ImpellerBrass with a centrifugal radial flow
Motor housingAluminum
Stator&Rotor1.Cold -rolled silicon steel sheet by a high-speed punching machine. 2. 100% high-quality copper wire
Front coverCast Iron
BearingChinese Best Quality BearingNSK, SKF or on request
Mechanical sealGraphene/CeramicSilicon Carbon
ShaftCarbon SteelStainless Steel
InsulationClass BClass F
ProtectionIP44IP54
Voltage220-240V Single PhaseOn Request
Frequency50HZ60HZ
Thermal protectionNoYes
Automatic Pressure Control SystemNoYes
Cooling TypeExternal Ventilation
Max. Suction lift9M
Max. Fluid Temperature+60℃
Max. Environment Temperature+40℃
InstallationHorizontal
Connect TypeThread
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC



End Suction Centrifugal Electric Motor Water Pump HIGH Effective Dkm Series 0

SPECIFICATIONS

end suction centrifugal pump


1.100% copper wire
2.big flow and high head
3. brass impeller
4, Thermal Protection



ADVANTAGE

100% high-quality copper,100% output
Cold -rolled silicon steel sheet by a high-speed punching machine
Good quality bearing, the surface more smooth, the dimension more precise
Thermal protector
It has advantages of high efficiency, saving energy, low noise, reliable performance.



OUR SERVICE
1). We are very glad that customer gives us some suggestion for price and products.
2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers all over the world with speed and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM



FAQ

1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.

2) .Q: Are you a factory or a trading company?
A: we make water pump, motor, alternator, and diesel generator since 2006.

3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEM are welcome!

4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.

5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.

6). Q: How about the warranty?
A: 1 year from shipped on board date.
