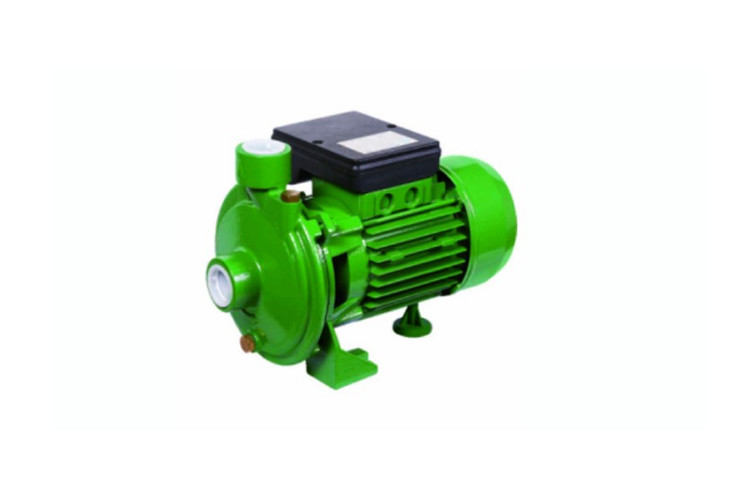

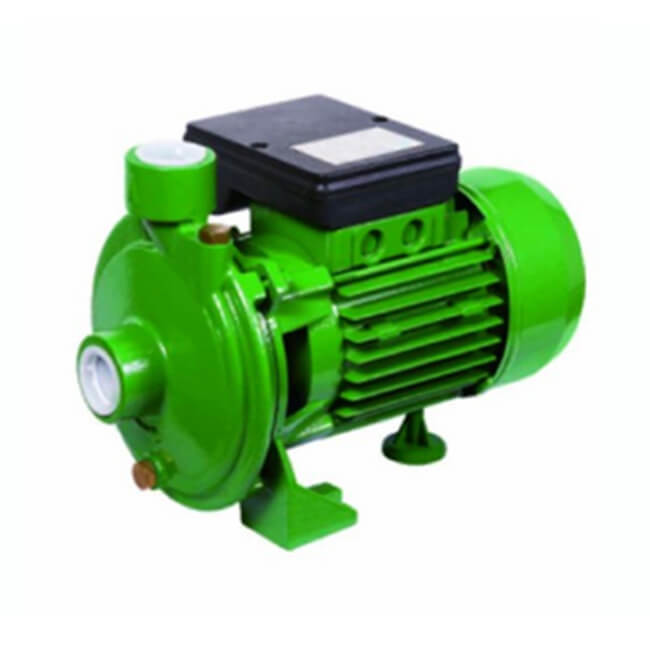

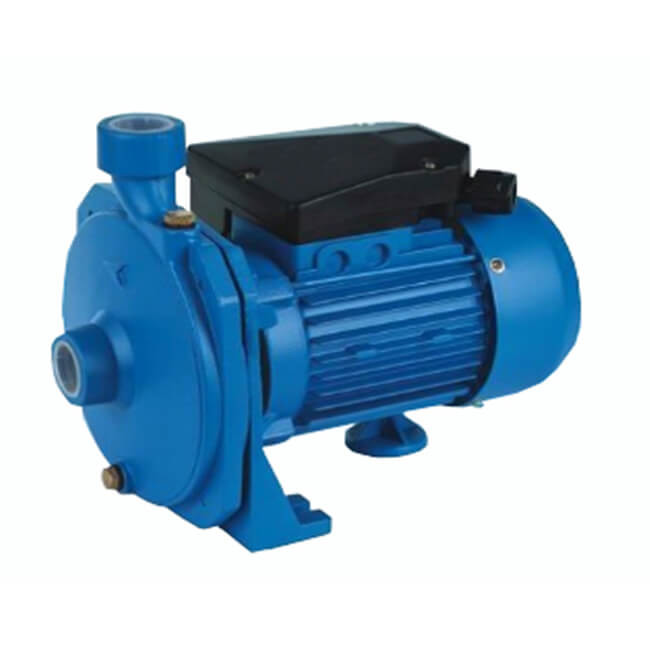

220V 1 Hp Scm Centrifugal Micro Electric Motor Water Pump Smooth Surface

China 220V 1 Hp Scm Centrifugal Micro Electric Motor Water Pump Smooth Surface supplier
220V 1 Hp Scm Centrifugal Micro Electric Motor Water Pump Smooth Surface supplier 220V 1 Hp Scm Centrifugal Micro Electric Motor Water Pump Smooth Surface supplier 220V 1 Hp Scm Centrifugal Micro Electric Motor Water Pump Smooth Surface supplier

Large Image :  220V 1 Hp Scm Centrifugal Micro Electric Motor Water Pump Smooth Surface

Product Details:

Place of Origin: Fujian China
Brand Name: ZOZHI
Certification: CE/SGS/ISO
Model Number: SCM-50

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons or pallets
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Power: 1HP /0.75KW Flow Max: 95L/Min
Head Max: 25M Structure: Single-stage Pump
Voltage: 220V OEM: Applicable
Application: Household Pump Color: Any Color You Want



220V 1 Hp SCM Centrifugal Micro Electric Motor Water Pump Smooth Surface



Description



Our factory is focus on providing foot mounted motors with good quality. Good quality comes from good materials. Our products is very durable and exceed the expectation of our clients. The price is reasonable and competitive in the markets.





Technical data





Model Output A R.P.M. Q.Max H.Max S.Head Pipe Dia LxWxH N.W.
HP / KW 1~220V (l/min) (m) (M) (mm) (Kg)
SCM-50 1 / 0.75 4.8 2850 110 30 9 1"x1" 340x210x250 13.6




Applications:



It can transfer clean water or other liquids that is similiar to water.  it can also be used in industrial use and urban water supply. Besides, It can also boost pressure for high building and water irrigation.




 220V 1 Hp Scm Centrifugal Micro Electric Motor Water Pump Smooth Surface



Advantages


1) long lasting use
2) 100% high quality copper,100% output
3) Cold-rolled silicon steel sheet by a high-speed punching machine
4) Good quality bearing, the surface more smooth, the dimension more precise
5)
Beautiful appearance,easy to move





Working conditions:





PUMP



Cast iron pump body and support

Brass impeller

Max. Liquid temperature: +40

Max.Suction:+8m



MOTOR



Motor with copper winding

Shaft: Stainless steel welded shaft / 45# steel be electroplated

Insulation class: B or F

Protection class: IPX4

Max. ambient temperature: +40

Cooling: External ventilation



Structural characteristics:




Main Specification Standard Optional
Transmission medium Clean Water
Pump body Cast Iron
Impeller Brass Noryl PPO
Motor housing Aluminum
Stator&Rotor 1.Cold -rolled silicon steel sheet by a high-speed punching machine. 2. 100% high-quality copper wire
Front cover Cast Iron
Bearing Chinese Best Quality Bearing NSK, SKF or on request
Mechanical seal Graphene/Ceramic Silicon Carbon
Shaft Carbon Steel Stainless Steel
Insulation Class B Class F
Protection IP44 IP54
Voltage 220-240V Single Phase On Request
Frequency 50HZ 60HZ
Thermal protection No Yes
Automatic Pressure Control System No Yes
Cooling Type External Ventilation
Max. Suction lift 9M
Max. Fluid Temperature +60℃
Max. Environment Temperature +40℃
Installation Horizontal
Connect Type Thread
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC



 220V 1 Hp Scm Centrifugal Micro Electric Motor Water Pump Smooth Surface

Our service:




1). We are very glad that customer gives us some suggestion for price and products.

2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.

3). Offer our customers the lowest prices. Streamline the buying and paying processes.

4). Deliver goods to our customers all over the world with speed and precision.

5). Ensure the excellent quality of our products.

6).12 months FREE warranty.

7). Accept OEM


 FAQ:

1). Q: How about the MOQ?
     A: Usually, it is 50 PCS for each model.

2) .Q: Are you a factory or a trading company?
      A: we make water pump, motor, alternator, and diesel generator since 2006.

3).  Q: Can you accept to use our logo?
       A: Yes, we can. Any OEM are welcome!

4).  Q: What are your payment terms?
      A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.

5).  Q: How about the delivery time?
       A: Usually, 10-30days. But it depends on your order quantity.

6).  Q: How about the warranty?
     A: 1 year from shipped on board date.
