Scm Centrifugal Surface Boiler Feed Electric Motor Water Pump For Farm , High Efficiency

China Scm Centrifugal Surface Boiler Feed Electric Motor Water Pump For Farm , High Efficiency supplier

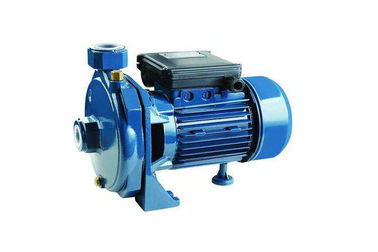

Large Image :  Scm Centrifugal Surface Boiler Feed Electric Motor Water Pump For Farm , High Efficiency

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: CE/SGS/ISO
Model Number: SCM-42-1

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons or pallets
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Feature: High Efficiency Application: Pumping
Power: 0.75HP /0.55KW Flow Max: 95L/Min
Head Max: 25M Structure: Single-stage Pump
Voltage: 220V OEM: Applicable

SCM Centrifugal Surface Boiler Feed Electric Motor Water Pump For Farm, High Efficiency


1.Description Of Centrifugal Pump



Pump body Cast iron
Motor bracket Aluminum
Impeller Brass
Motor shaft SS420 or Cs45#
Mechanical seal Ceramic-Graphite
Electric motor Single-phase 220V-50Hz with a capacitor and thermal overload protector. Three phase 380V-50Hz.Voltage fluctuation for10% more or less is allowed and another voltage for 60 Hz is also available
Insulation Class B
Protection IP44




APPLICATION AREAS


 Scm Centrifugal Surface Boiler Feed Electric Motor Water Pump For Farm , High Efficiency
A) Agricultural application such as supply water from well, pool .etc,
B) Water pressure boosting
C) Garden spraying
D) With small pressure sies and for irrigation
E) Farmland garden irrigation
F) High-rise building water supply



FEATURE


1) Enamel technique: clean, healthy, environmental, prevent secondary pollution
2) 100% high quality copper,100% output
3) Cold -rolled silicon steel sheet by a high-speed punching machine
4) Good quality bearing, the surface more smooth, the dimension more precise
5)
Beautiful appearance, humanize, handle, easy to move



TECHNICAL DATA



Model Output A R.P.M. Q.Max H.Max S.Head Pipe Dia LxWxH N.W.
HP / KW 1~220V (l/min) (m) (M) (mm) (Kg)
SCM-22 0.5 / 0.37 3 2850 75 20 9 1"x1" 310x165x225 8.8
SCM-42 0.75 / 0.55 3.6 2850 95 25 9 1"x1" 340x210x250 12
SCM-50 1 / 0.75 4.8 2850 110 30 9 1"x1" 340x210x250 13.6




 Scm Centrifugal Surface Boiler Feed Electric Motor Water Pump For Farm , High Efficiency


STRUCTURAL CHARACTERISTICS


Main Specification Standard Optional
Transmission medium Clean Water
Pump body Cast Iron
Impeller Brass Noryl PPO
Motor housing Aluminum
Stator&Rotor 1.Cold -rolled silicon steel sheet by a high-speed punching machine. 2. 100% high-quality copper wire
Front cover Cast Iron
Bearing Chinese Best Quality Bearing NSK, SKF or on request
Mechanical seal Graphene/Ceramic Silicon Carbon
Shaft Carbon Steel Stainless Steel
Insulation Class B Class F
Protection IP44 IP54
Voltage 220-240V Single Phase On Request
Frequency 50HZ 60HZ
Thermal protection No Yes
Automatic Pressure Control System No Yes
Cooling Type External Ventilation
Max. Suction lift 9M
Max. Fluid Temperature +60℃
Max. Environment Temperature +40℃
Installation Horizontal
Connect Type Thread
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC






OUR SERVICE

1). We are very glad that customer gives us some suggestion for price and products.

2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.

3). Offer our customers the lowest prices. Streamline the buying and paying processes.

4). Deliver goods to our customers all over the world with speed and precision.

5). Ensure the excellent quality of our products.

6).12 months FREE warranty.

7). Accept OEM



FAQ

1). Q: How about the MOQ?
     A: Usually, it is 50 PCS for each model.

2) .Q: Are you a factory or a trading company?
      A: we make water pump, motor, alternator and diesel generator since 2006.

3).  Q: Can you accept to use our logo?
       A: Yes, we can. Any OEM are welcome!

4).  Q: What are your payment terms?
      A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.

5).  Q: How about the delivery time?
       A: Usually, 10-30days. But it depends on your order quantity.

6).  Q: How about the warranty?
     A: 1 year from shipped on board date.
