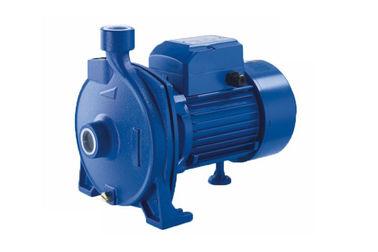

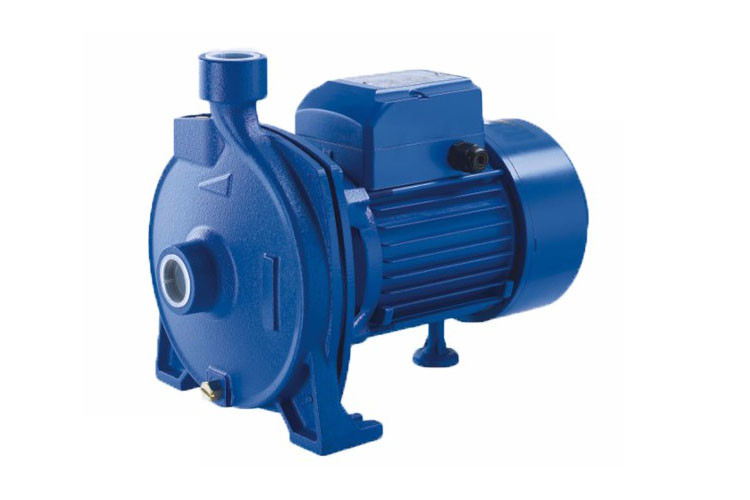

CPM Electric Utility Centrifugal Water Pump With 100% Copper Wire
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Electric Motor Water Pump | Impeller | Brass |
|---|---|---|---|
| Output | 2.0HP /1.5KW | Flow Max | 150L/Min |
| Head Max | 50M | Suction Max | 9M |
| Inlet/Outlet | 1"x1" | Speed | 2850RPM |
| Highlight | electronic water pump,commercial electric water pump |
||
Product Description
C.P.M... Electric Utility Centrifugal Water Pump With 100% Copper Wire
| ◊ Application |
| C.P.M.... series are suitable for pumping clean water. |
| They are particularly suitable for: |
| 1. domestic application such as supply water from well, pool, etc |
| 2. water pressure boosting |
| 3. gardening |
| 4. automatic water supply system |
| ◊ Working Conditions |
| max temperature of fluid up to +60°C |
| max pressure 10 bar |
| max ambient temperature up to +40°C |
| ◊ Material: |
| Pump body: Cast iron; |
| Motor support: Aluminum |
| Impeller: Brass, Aluminum |
| Shaft with rotor:45# Steel |
STRUCTURAL CHARACTERISTICS
| Main Specification | Standard | Optional |
| Transmission medium | Clean Water | |
| Pump body | Cast Iron | |
| Impeller | Brass | Noryl P.P.O... |
| Motor housing | Aluminum | |
| Stator&Rotor | 1. Cold-rolled silicon steel sheet by a high-speed punching machine. 2. 100% high-quality copper wire | |
| Front cover | Cast Iron | |
| Bearing | Chinese Best Quality Bearing | NSK, S.K.F...., or on request |
| Mechanical seal | Graphene/Ceramic | Silicon Carbon |
| Shaft | Carbon Steel | Stainless Steel |
| Insulation | Class B | Class F |
| Protection | IP44 | IP54 |
| Voltage | 220-240V Single Phase | On Request |
| Frequency | 50HZ | 60HZ |
| Thermal protection | No | Yes |
| Automatic Pressure Control System | No | Yes |
| Cooling Type | External Ventilation | |
| Max. Suction lift | 9M | |
| Max. Fluid Temperature | +60℃ | |
| Max. Environment Temperature | +40℃ | |
| Installation | Horizontal | |
| Connect Type | Thread | |
| CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC | ||
Electric Motor Water Pump TECHNICAL DATA
| Model | Output | A | R.P.M. | Q.Max | H.Max | S.Head | Pipe Dia | LxWxH | N.W. |
| HP / KW | 1~220V | (l/min) | (m) | (M) | (mm) | (Kg) | |||
| CPM-130 | 0.5 / 0.37 | 1.6 | 2850 | 75 | 20 | 9 | 1"x1" | 310x170x230 | 8.9 |
| CPM-146 | 0.75 / 0.55 | 3.6 | 2850 | 100 | 25 | 9 | 1"x1" | 340x210x250 | 12.2 |
| CPM-158 | 1 / 0.75 | 4.8 | 2850 | 110 | 32 | 9 | 1"x1" | 340x210x250 | 13.8 |
| CPM-180 | 1.5 / 1.1 | 6.2 | 2850 | 130 | 42 | 9 | 1"x1" | 425x250x320 | 21 |
| C.P.M....-200 | 2.0 / 1.5 | 9.4 | 2850 | 150 | 50 | 9 | 1"x1" | 425x250x320 | 23 |
ADVANTAGE
100% high-quality copper,100% output
Cold-rolled silicon steel sheet by a high-speed punching machine
Good quality bearing, the surface more smooth, the dimension more precise
Thermal protector
One year warranty
Electric Motor Water Pump GUARANTEE
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
