| Product Name: | Electric Motor Water Pump | Application: | Pumping |
|---|---|---|---|
| Output: | 1.5HP / 1.1KW | Flow Max: | 132L/Min |
| Head Max: | 42M | Suction Max: | 9M |
| Inlet/Outlet: | 1"x1" | Speed: | 2850RPM |
| Pressure: | High Pressure | Bearing: | C&U |
| High Light: | electronic water pump,commercial electric water pump |
||

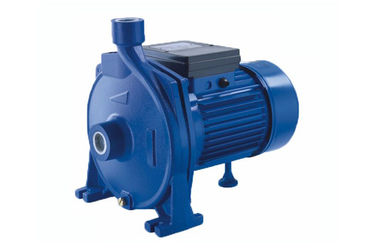

CPM-180 Centrifugal Electric Motor Water Pump 1.5HP With Thermal Protector
DESCRIPTION
CPM-180 centrifugal electric motor water pump is suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
As a result of their compactness, reliability and the fact that they are easy to use, they are suitable for use in domestic and civil applications such as the distribution of water in combination with small and medium pressure sets, and for transferring liquids and for the irrigation of gardens and allotments,
The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
TECHNICAL DATA
| Model | Output | A | R.P.M. | Q.Max | H.Max | S.Head | Pipe Dia | LxWxH | N.W. |
| HP / KW | 1~220V | (l/min) | (m) | (M) | (mm) | (Kg) | |||
| CPM-180 | 1.5 / 1.1 | 6.2 | 2850 | 130 | 42 | 9 | 1"x1" | 425x250x320 | 21 |
OPERATING CONDITION
1. Liquid temperature up to 60 Celsius degree.
2. Ambient temperature up to 40 Celsius degree.
3. Total suction lift up to 8m.
STRUCTURAL CHARACTERISTICS
| Main Specification | Standard | Optional |
| Transmission medium | Clean Water | |
| Pump body | Cast Iron | |
| Impeller | Brass | Noryl PPO |
| Motor housing | Aluminum | |
| Stator&Rotor | 1.Cold -rolled silicon steel sheet by a high-speed punching machine. 2. 100% high-quality copper wire | |
| Front cover | Cast Iron | |
| Bearing | Chinese Best Quality Bearing | NSK, SKF or on request |
| Mechanical seal | Graphene/Ceramic | Silicon Carbon |
| Shaft | Carbon Steel | Stainless Steel |
| Insulation | Class B | Class F |
| Protection | IP44 | IP54 |
| Voltage | 220-240V Single Phase | On Request |
| Frequency | 50HZ | 60HZ |
| Thermal protection | No | Yes |
| Automatic Pressure Control System | No | Yes |
| Cooling Type | External Ventilation | |
| Max. Suction lift | 9M | |
| Max. Fluid Temperature | +60℃ | |
| Max. Environment Temperature | +40℃ | |
| Installation | Horizontal | |
| Connect Type | Thread | |
| CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC | ||
ADVANTAGE
1. 100% high-quality copper,100% output.
2. Cold -rolled silicon steel sheet by a high-speed punching machine.
3. Good quality bearing, the surface more smooth, the dimension more precise.
4. Thermal Protector.
5. One year warranty.
GUARANTEE
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.
