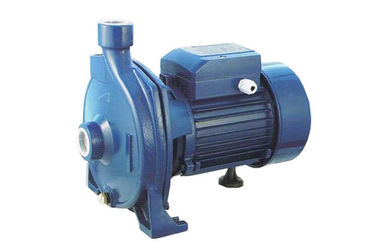

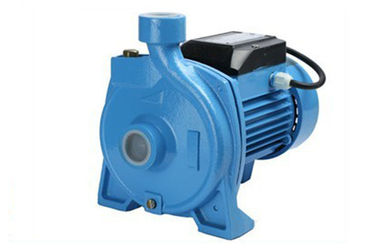

1.5Hp Centrifugal High Pressure Electric Water Pump Cpm Series For Farming Water

1.5Hp Centrifugal High Pressure Electric Water Pump Cpm Series For Farming Water
1.5Hp Centrifugal High Pressure Electric Water Pump Cpm Series For Farming Water 1.5Hp Centrifugal High Pressure Electric Water Pump Cpm Series For Farming Water 1.5Hp Centrifugal High Pressure Electric Water Pump Cpm Series For Farming Water

Large Image :  1.5Hp Centrifugal High Pressure Electric Water Pump Cpm Series For Farming Water

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: CE/SGS/ISO
Model Number: CPM-180

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons or pallets
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 30000pcs/month
Detailed Product Description
Output: 1.5HP / 1.1KW Flow Max: 130 L/Min
Head Max: 42 M Suction Max: 9M
Inlet/Outlet: 1"x1" Speed: 2850RPM
Structure: Single Stage Pump Power: Electric
High Light:

electronic water pump

,

commercial electric water pump


1.5Hp Centrifugal High-Pressure Electric Water Pump CPM Series For Farming Water

Application:

CPM series single step centrifugal pump is one hi-efficient household pump, which consists of a microcomputer, centrifugal pump and other special qualified mechanical seals, its light, power-saving, convenient operation, and maintenance, safe, reliable and can be applied to supply the water for Household, Garden, Hotel, Villas.

Technical Data:


Model Output A R.P.M. Q.Max H.Max S.Head Pipe Dia LxWxH N.W.
HP / KW 1~220V (l/min) (m) (M) (mm) (Kg)
CPM-180 1.5 / 1.1 6.2 2850 130 42 9 1"x1" 425x250x320 21


Advantages:


1). 100% high-quality copper,100% output


2). Old -rolled silicon steel sheet by a high-speed punching machine


3). Good quality bearing, the surface more smooth, the dimension more precise


4). Thermal protector


5). One year warranty


 Structural Characteristics:


Main Specification Standard Optional
Transmission medium Clean Water
Pump body Cast Iron
Impeller Brass Noryl PPO
Motor housing Aluminum
Stator&Rotor 1. Cold -rolled silicon steel sheet by a high-speed punching machine. 2. 100% high-quality copper wire
Front cover Cast Iron
Bearing Chinese Best Quality Bearing NSK, SKF or on request
Mechanical seal Graphene/Ceramic Silicon Carbon
Shaft Carbon Steel Stainless Steel
Insulation Class B Class F
Protection IP44 IP54
Voltage 220-240V Single Phase On Request
Frequency 50HZ 60HZ
Thermal protection No Yes
Automatic Pressure Control System No Yes
Cooling Type External Ventilation
Max. Suction Lift 9M
Max. Fluid Temperature +60℃
Max. Environment Temperature +40℃
Installation Horizontal
Connect Type Thread
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC



 1.5Hp Centrifugal High Pressure Electric Water Pump Cpm Series For Farming Water 0

Guarantee:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.

FAQ:
1. Q: What’s the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
A: 1 year.

5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
