| Power: | 0.8HP /0.6KW | Flow Max: | 400L/Min |
|---|---|---|---|
| Head Max: | 12.5M | Structure: | Single-stage Pump |
| Pipe Size: | 2"x2" | Feature: | Farm Irrigation |
| Theory: | Centrifugal Pump | Motor: | Single Phase Motor |
| High Light: | electronic water pump,commercial electric water pump |
||

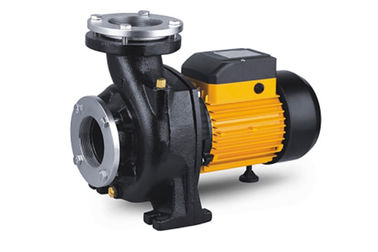

Single stage Nfm Series Electric Centrifugal Pump, Pool High Volume Electric Water Pump
NFM centrifugal pump
1. cast iron pump body with a perfect design
2.100%output,100% quality guaranty
3. portable, easy operate
AREAS
A) Farmland garden irrigation
B) Long distant water supply
C) Garden spraying
D) Fire protection
E) Adding pressured
F) Use in industry and city for drainage and irrigation
TECHNICAL DATA
| Model | Output | A | R.P.M. | Q.Max | H.Max | S.Head | Pipe Dia | LxWxH |
| HP / KW | 1~220V | (l/min) | (m) | (M) | (mm) | |||
| NFM-128B | 0.8 / 0.6 | 3.2 | 2850 | 400 | 12.5 | 9 | 2"x2" | |
| NFM-128A | 1 / 0.75 | 5.2 | 2850 | 500 | 13.7 | 9 | 2"x2" | |
| NFM-129B | 1.5 / 1.1 | 7 | 2850 | 500 | 15 | 9 | 2"x2" | 453x281x355 |
| NFM-129A | 2.0 / 1.5 | 9.6 | 2850 | 850 | 15 | 9 | 2"x2" | 453x281x355 |
| NFM-130C | 1.5 / 1.1 | 7 | 2850 | 600 | 12 | 9 | 3"x3" | 453x281x355 |
| NFM-130B | 2.0 / 1.5 | 9.6 | 2850 | 850 | 13 | 9 | 3"x3" | 453x281x355 |
| NFM-130A | 3.0 / 2.2 | 13.9 | 2850 | 1000 | 15 | 9 | 3"x3" | 453x281x355 |
STRUCTURAL CHARACTERISTICS
| Main Specification | Standard | Optional |
| Transmission medium | Clean Water | |
| Pump body | Cast Iron | |
| Impeller | Brass | Noryl PPO |
| Motor housing | Aluminum | |
| Stator&Rotor | 1.Cold -rolled silicon steel sheet by a high-speed punching machine. 2. 100% high-quality copper wire | |
| Front cover | Cast Iron | |
| Bearing | Chinese Best Quality Bearing | NSK, SKF or on request |
| Mechanical seal | Graphene/Ceramic | Silicon Carbon |
| Shaft | Carbon Steel | Stainless Steel |
| Insulation | Class B | Class F |
| Protection | IP44 | IP54 |
| Voltage | 220-240V Single Phase | On Request |
| Frequency | 50HZ | 60HZ |
| Thermal protection | No | Yes |
| Automatic Pressure Control System | No | Yes |
| Cooling Type | External Ventilation | |
| Max. Suction lift | 9M | |
| Max. Fluid Temperature | +60℃ | |
| Max. Environment Temperature | +40℃ | |
| Installation | Horizontal | |
| Connect Type | Thread | |
| CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC | ||
