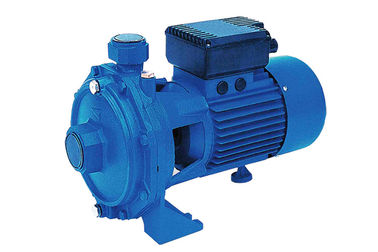

Scm2 Two Stage 220v Electric Motor Water Pump Centrifugal 130l / Min Flow Max

Scm2 Two Stage 220v Electric Motor Water Pump Centrifugal 130l / Min Flow Max
Scm2 Two Stage 220v Electric Motor Water Pump Centrifugal 130l / Min Flow Max

Large Image :  Scm2 Two Stage 220v Electric Motor Water Pump Centrifugal 130l / Min Flow Max

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: CE/SGS/ISO
Model Number: SCM2-60

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons , overall size:415x255x320mm/pc, N.W.: 24.5kgs
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 30000pcs/month
Detailed Product Description
Application: Watering Output: 2HP / 1.5KW
Flow Max: 130L/Min Head Max: 55M
Suction Max: 9M Phase: Single Phase/3phase
Voltage: 220-240v Type: Agricultural Hydroponics
Shaft: 45#steel/Stainless Steel
High Light:

electronic water pump

,

commercial electric water pump



Scm2 Two Stage 220v Electric Motor Water Pump Centrifugal 130l / Min Flow-Max


Description:



The SCM2 series , with two back-to-back impellers centrifugal pumps, are developed for higher head valve than single impeller pumps and have extremely high outputs. They are suitable for pumping clean water and chemically non-aggressive liquid, reliable, economical and simple to use. Pumps should be installed in a covered area, protected against the weather.



Technical Data:


Model Output A R.P.M. Q.Max H.Max S.Head Pipe Dia LxWxH N.W.
HP / KW 1~220V (l/min) (m) (M) (mm) (Kg)
SCM2-60 2.0 / 1.5 9.6 2850 130 55 9 1.25"x1" 415x255x320 24.5

Other voltages and frequencies available on request







Advantages:



1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.



Operating Conditions:



Max ambient temperature up to 40℃

Max fluid temperature up to 80℃

Max pressure up to 10 bar



Structural Characteristics:



Main Specification Standard Optional
Transmission medium Clean Water
Pump body Cast Iron
Impeller Brass Noryl PPO
Motor housing Aluminum
Stator&Rotor 1.Cold -rolled silicon steel sheet by a high-speed punching machine. 2. 100% high-quality copper wire
Front cover Cast Iron
Bearing Chinese Best Quality Bearing NSK, SKF or on request
Mechanical seal Graphene/Ceramic Silicon Carbon
Shaft Carbon Steel Stainless Steel
Insulation Class B Class F
Protection IP44 IP54
Voltage 220-240V Single Phase On Request
Frequency 50HZ 60HZ
Thermal protection No Yes
Automatic Pressure Control System No Yes
Cooling Type External Ventilation
Max. Suction lift 9M
Max. Fluid Temperature +60℃
Max. Environment Temperature +40℃
Installation Horizontal
Connect Type Thread
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC





Scm2 Two Stage 220v Electric Motor Water Pump Centrifugal 130l / Min Flow Max 0






Guarantee:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.


FAQ

1. Q: What’s the MOQ?
    A: Trial sample order is ok.

2. Q: Are you factory or trading company?
    A: We are a manufacturer.

3. Q: Can you accept to use our logo?
    A: Yes, we can do OEM for you.

4.  Q: How can I get the pump?
    A: Usually we suggest express for samples, if the volume reaches 1m³, the Seaway will be better.

5. Q: What’s the warranty period?
    A: 1 year.
