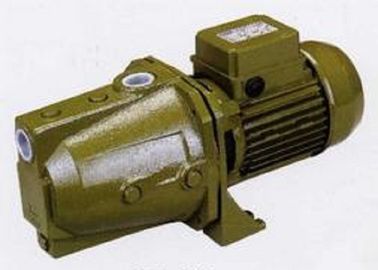

1HP Jet Series Self Priming Electric Motor Water Pump Vortex Type Water Cleaning

  • 1HP Jet Series Self Priming Electric Motor Water Pump Vortex Type Water Cleaning
Place of Origin Fujian China
Brand Name ZOZHI
Certification CE/SGS/ISO
Model Number JET-100A
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 30000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output 1HP / 0.75KW Flow Max 52 L/Min
Head Max 50M Suction Max 9M
Inlet/Outlet 1"x1" Speed 2850RPM
Item Water Pump Structure Single-stage Pump
Product Name Electric Motor Water Pump
High Light

electronic water pump

,

commercial electric water pump

,

vortex type electric motor water pump
Leave a Message
Product Description





1HP Jet Series Self Priming Electric Motor Water Pump Vortex Type Water Cleaning


Specifications

1. self-priming Jet pump
2. copper wire
3. new energy-efficient household pump
4. 1-year quality guarantee



Electric Motor Water Pump Feature:



1. 100% copper wire

2. Bearing

3. Cold-rolled silicon steel sheet, with high-speed punching, improve the efficiency and precision

4. 45# steel shaft with the rotor

5. Demagnetization of stainless steel nuts

6. Brass impeller

7. Mechanical seal: Carbon / Ceramic, single mechanical face seal, "O" type oil-resistant rubber seal ring

8. iron pump body and motor support





WORKING CONDITION



Max Temperature of Fluid up to +60 C.
Max Pressure 10bar
Max Ambient Temperature up to 40 C




STRUCTURAL CHARACTERISTICS



Main Specification Standard Optional
Transmission medium Clean Water
Pump body Cast Iron
Impeller Brass Noryl PPO
Motor housing Aluminum
Stator&Rotor 1. Cold-rolled silicon steel sheet by a high-speed punching machine. 2. 100% high-quality copper wire
Front cover Cast Iron
Bearing Chinese Best Quality Bearing NSK, SKF, or on request
Mechanical seal Graphene/Ceramic Silicon Carbon
Shaft Carbon Steel Stainless Steel
Insulation Class B Class F
Protection IP44 IP54
Voltage 220-240V Single Phase On Request
Frequency 50HZ 60HZ
Thermal protection No Yes
Automatic Pressure Control System No Yes
Cooling Type External Ventilation
Max. Suction lift 9M
Max. Fluid Temperature +60℃
Max. Environment Temperature +40℃
Installation Horizontal
Connect Type Thread
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC




TECHNICAL DATA


Model Output A R.P.M. Q.Max H.Max S.Head Pipe Dia LxWxH N.W.
HP / KW 1~220V (l/min) (m) (M) (mm) (Kg)
JET-60A 0.5 / 0.37 1.6 2850 42 40 9 1"x1" 480x210x220 11.9
JET-80A 0.75 / 0.55 3.6 2850 46 45 9 1"x1" 480x210x220 15.9
JET-100A 1 / 0.75 4.8 2850 52 50 9 1"x1" 480x210x220 16.9

Other voltages and frequencies available on request



1HP Jet Series Self Priming Electric Motor Water Pump Vortex Type Water Cleaning 0

Electric Motor Water Pump ADVANTAGE

100% high-quality copper,100% output
Cold-rolled silicon steel sheet by a high-speed punching machine
Good quality bearing, the surface more smooth, the dimension more precise
Thermal protector
One year warranty


Electric Motor Water Pump GUARANTEE

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
