Product Details:
Payment & Shipping Terms:
|
Product Name: | Agricultural Pumps | Application: | Pumping |
---|---|---|---|
Output: | 1.5HP / 1.1KW | Flow Max: | 90L/Min |
Head Max: | 60M | Suction Max: | 9M |
Inlet/Outlet: | 1"x1" | Speed: | 2850RPM |
High Light: | electronic water pump,commercial electric water pump |

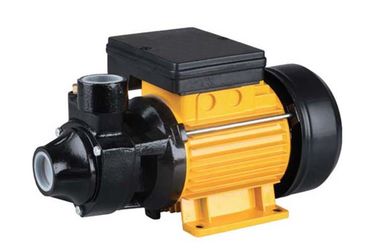

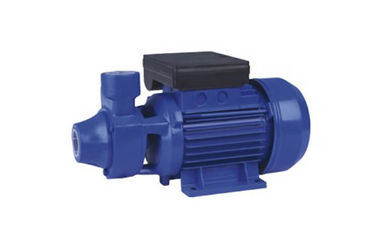

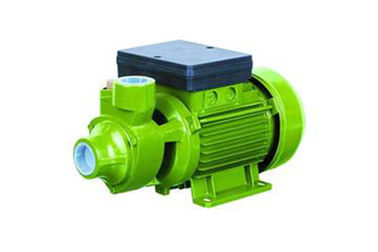

1.5HP Domestic Electric Motor Water Pump with Max Pressure 10 Bar Suction Head
DESCRIPTION:
IDB series is a peripheral clean water pump. They have features of small flow, high head, small size, low power consumption and convenient In operation and maintenance. They are suitable for the domestic application, gardens, hotel and water pressure boosting for the circulating system.
Pump Body:cast iron
Motor housing: aluminum
lmpeller:brass
Shaft with rotor:45#steel
Mechanical seal:carbon/ceramic
Bearing:C&U or local bearing
Motor Single phase Insulation class: B Protection: IP44
Max.Iiquid temperature:+60°C Max.amblent temperature:+40°C Max.suct:+8m Continuous duty
Model | Output | A | R.P.M. | Q.Max | H.Max | S.Head | Pipe Dia | LxWxH | N.W. |
HP / KW | 1~220V | (l/min) | (m) | (M) | (mm) | (Kg) | |||
IDB-35 | 0.5 / 0.37 | 1.6 | 2850 | 35 | 35 | 9 | 1"x1" | 285x150x185 | 5.4 |
IDB-40 | 0.75 / 0.55 | 3.6 | 2850 | 45 | 50 | 9 | 1"x1" | 335x180x200 | 9.6 |
IDB-50 | 1 / 0.75 | 4.8 | 2850 | 50 | 55 | 9 | 1"x1" | 335x180x200 | 10.2 |
IDB-60 | 1.5 / 1.1 | 6.2 | 2850 | 60 | 70 | 9 | 1½ "x1½" | 425x200x225 | 22 |
STRUCTURAL CHARACTERISTICS:
Main Specification | Standard | Optional |
Transmission medium | Clean Water | |
Pump body | Cast Iron | |
Impeller | Brass | |
Motor housing | Aluminum | |
Stator&Rotor | 1.Cold -rolled silicon steel sheet by a high-speed punching machine. 2. 100% high-quality copper wire | |
Front cover | Cast Iron | Brass plate embedded to avoid impeller jam |
Bearing | Chinese Best Quality Bearing | NSK, SKF or on request |
Mechanical seal | Graphene/Ceramic | Silicon Carbon |
Shaft | Carbon Steel | Stainless Steel |
Insulation | Class B | Class F |
Protection | IP44 | IP54 |
Voltage | 220-240V Single Phase | On Request |
Frequency | 50HZ | 60HZ |
thermal protection | No | Yes |
Automatic Pressure Control System | No | Yes |
Cooling Type | External Ventilation | |
Max. Suction lift | 9M | |
Max. Fluid Temperature | +60℃ | |
Max. Environment Temperature | +40℃ | |
Installation | Horizontal | |
Connect Type | Thread | |
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC |
Widely used in living water supply ,well water pumping,pressurization of tap water,hot-water pipeline pressurization,water tower water supply,gardens and vegetable greenhouse watering,aquaculture water supply and drainage and so on.
APPLICATION:
1. Specialized in pump field for more than ten years
2. High quality with competitive price
3. Fast delivery time
4. Good service
ADVANTAGE:
100% high-quality copper,100% output
Cold -rolled silicon steel sheet by a high-speed punching machine
Good quality bearing, the surface more smooth, the dimension more precise
Thermal protector
One year warranty
GUARANTEE:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.
FAQ:
1. Q: How about the MOQ?
A: Usually, it is 100 PCS for each model.
2.Q: Are you a factory or a trading company?
A: we make water pump, motor, alternator and diesel genset since 2006
3. Q: Can you do OEM?
A: Yes, we can. Any OEM are welcome!
4. Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.
5. Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.
6. Q: How about the warranty?
A: 1 year from shipped on board date.
