Product Details:
Payment & Shipping Terms:
|
| Product Name: | Household Pump | Application: | Pumping |
|---|---|---|---|
| Output: | 1HP / 0.75KW | Flow Max: | 50L/Min |
| Head Max: | 55M | Suction Max: | 9M |
| Inlet/Outlet: | 1"x1" | Speed: | 2850RPM |
| High Light: | electronic water pump,commercial electric water pump |
||

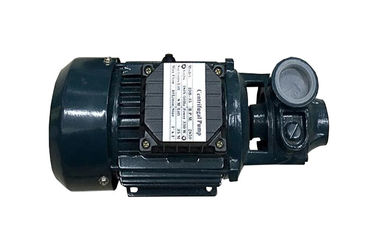

Household Pump Cast Iron Body Electric Motor Water Pump For home 1HP
PRODUCT DESCRIPTION
IDB series pump is Vortex pump with compact structure, mini size, stable operating curves. high head.
FEATURES
1.high head, small flow rate, high efficiency, suction to 9m.
2.stable operate curve
3.duralbe use,for 2500hrs maintenance.
4.easy installation.
5. mini size, easy taking.
6.anti rust pump body and support.
7.head: 3~65m.(as a curve)
APPLICATIONS
Vortex water pump with peripheral impeller is able to offer high pressure in relation to comparatively low powers and which have particularly steady operating curves. and suitable for handing clean water not containing abrasive particles and fluids which are not chemically aggressive to the pump components.
They are extremely reliable, light, economical and easy to use, widely used in domestic applications, in particular, the automatic distribution of water from surge tanks, watering gardens and for boosting insufficient mains water pressure.
STRUCTURAL CHARACTERISTICS
| Main Specification | Standard | Optional |
| Transmission medium | Clean Water | |
| Pump body | Cast Iron | |
| Impeller | Brass | |
| Motor housing | Aluminum | |
| Stator&Rotor | 1.Cold -rolled silicon steel sheet by a high-speed punching machine. 2. 100% high-quality copper wire | |
| Front cover | Cast Iron | Brass plate embedded to avoid impeller jam |
| Bearing | Chinese Best Quality Bearing | NSK, SKF or on request |
| Mechanical seal | Graphene/Ceramic | Silicon Carbon |
| Shaft | Carbon Steel | Stainless Steel |
| Insulation | Class B | Class F |
| Protection | IP44 | IP54 |
| Voltage | 220-240V Single Phase | On Request |
| Frequency | 50HZ | 60HZ |
| thermal protection | No | Yes |
| Automatic Pressure Control System | No | Yes |
| Cooling Type | External Ventilation | |
| Max. Suction lift | 9M | |
| Max. Fluid Temperature | +60℃ | |
| Max. Environment Temperature | +40℃ | |
| Installation | Horizontal | |
| Connect Type | Thread | |
| CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC | ||
TECHNICAL DATA
| Model | Output | A | R.P.M. | Q.Max | H.Max | S.Head | Pipe Dia | LxWxH | N.W. |
| HP / KW | 1~220V | (l/min) | (m) | (M) | (mm) | (Kg) | |||
| IDB-35 | 0.5 / 0.37 | 1.6 | 2850 | 35 | 35 | 9 | 1"x1" | 285x150x185 | 5.4 |
| IDB-40 | 0.75 / 0.55 | 3.6 | 2850 | 45 | 50 | 9 | 1"x1" | 335x180x200 | 9.6 |
| IDB-50 | 1 / 0.75 | 4.8 | 2850 | 50 | 55 | 9 | 1"x1" | 335x180x200 | 10.2 |
| IDB-60 | 1.5 / 1.1 | 6.2 | 2850 | 60 | 70 | 9 | 1½ "x1½" | 425x200x225 | 22 |
GUARANTEE
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.
FAQ:
1. Q: How about the MOQ?
A: Usually, it is 100 PCS for each model.
2.Q: Are you a factory or a trading company?
A: we make water pump, motor, alternator, and diesel generator since 2006
3. Q: Can you do OEM?
A: Yes, we can. Any OEM are welcome!
4. Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.
5. Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.
6. Q: How about the warranty?
A: 1 year from shipped on board date.
