| Output: | 0.75HP / 0.55KW | Flow Max: | 45 L/Min |
|---|---|---|---|
| Head Max: | 50M | Suction Max: | 9M |
| Inlet/Outlet: | 1"x1" | Speed: | 2850RPM |
| Item: | Booster Pump | Application: | Watering |
| High Light: | electronic water pump,commercial electric water pump |
||

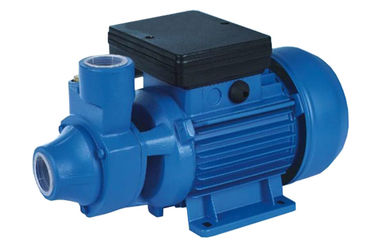

Booster Pump IDB 40 0.75hp Domestic Electric Motor Water Pump For Watering
APPLICATIONS
WORKING CONDITION:
INSTALLATION CONDITION
STRUCTURAL CHARACTERISTICS
| Main Specification | Standard | Optional |
| Transmission medium | Clean Water | |
| Pump body | Cast Iron | |
| Impeller | Brass | |
| Motor housing | Aluminum | |
| Stator&Rotor | 1.Cold -rolled silicon steel sheet by a high-speed punching machine. 2. 100% high-quality copper wire | |
| Front cover | Cast Iron | Brass plate embedded to avoid impeller jam |
| Bearing | Chinese Best Quality Bearing | NSK, SKF or on request |
| Mechanical seal | Graphene/Ceramic | Silicon Carbon |
| Shaft | Carbon Steel | Stainless Steel |
| Insulation | Class B | Class F |
| Protection | IP44 | IP54 |
| Voltage | 220-240V Single Phase | On Request |
| Frequency | 50HZ | 60HZ |
| thermal protection | No | Yes |
| Automatic Pressure Control System | No | Yes |
| Cooling Type | External Ventilation | |
| Max. Suction lift | 9M | |
| Max. Fluid Temperature | +60℃ | |
| Max. Environment Temperature | +40℃ | |
| Installation | Horizontal | |
| Connect Type | Thread | |
| CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC | ||
TECHNICAL DATA
| Model | Output | A | R.P.M. | Q.Max | H.Max | S.Head | Pipe Dia | LxWxH | N.W. |
| HP / KW | 1~220V | (l/min) | (m) | (M) | (mm) | (Kg) | |||
| IDB-35 | 0.5 / 0.37 | 1.6 | 2850 | 35 | 35 | 9 | 1"x1" | 285x150x185 | 5.4 |
| IDB-40 | 0.75 / 0.55 | 3.6 | 2850 | 45 | 50 | 9 | 1"x1" | 335x180x200 | 9.6 |
| IDB-50 | 1 / 0.75 | 4.8 | 2850 | 50 | 55 | 9 | 1"x1" | 335x180x200 | 10.2 |
| IDB-60 | 1.5 / 1.1 | 6.2 | 2850 | 60 | 70 | 9 | 1½ "x1½" | 425x200x225 | 22 |
ADVANTAGE
100% high-quality copper,100% output
Cold -rolled silicon steel sheet by a high-speed punching machine
Good quality bearing, the surface more smooth, the dimension more precise
Thermal protector
One year warranty
GUARANTEE
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.
FAQ
1. Q: How about the MOQ?
A: Usually, it is 100 PCS for each model.
2.Q: Are you a factory or a trading company?
A: we make water pump, motor, alternator, and diesel generator since 2006
3. Q: Can you do OEM?
A: Yes, we can. Any OEM are welcome!
4. Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.
5. Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.
6. Q: How about the warranty?
A: 1 year from shipped on board date.
