| Product Name: | AC Water Pump | Application: | Pumping |
|---|---|---|---|
| Output: | 0.5HP / 0.37KW | Flow Max: | 35 L/Min |
| Head Max: | 35M | Suction Max: | 9M |
| Inlet/Outlet: | 1"x1" | Speed: | 2850RPM |
| High Light: | electronic water pump,commercial electric water pump |
||

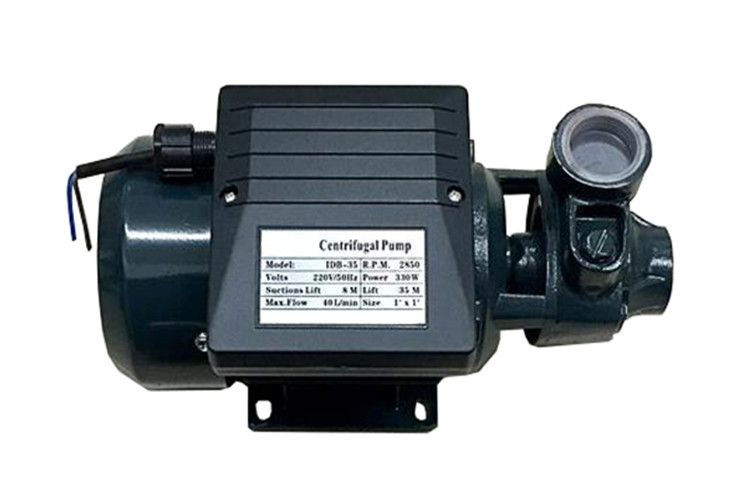

IDB-35 Mini Pump For Pressure System Electric Motor Water Pump Single Phase
◊ Application
IDB series are suitable for pumping clean water.
They are particularly suitable for:
1 domestic application such as supply water from well, pool etc
2 water pressure boosting
3 gardening
4 automatic water supply system
◊ Working Conditions
max temperature of fluid up to +60°C
max pressure 10 bar
max ambient temperature up to +40°C
◊ Material:
Pump body: Cast iron;
Motor support: Aluminum
Impeller: Brass
Shaft with rotor:45# Steel
◊ Technical data
| Model | Rated Power | Rated-Flow | Rated-Head | Max-Suct | Voltage | Freq | Inlet/Outlet | |
| kW | HP | L/min | M | M | V | HZ | (mm) (inch) | |
| IDB-35 | 0.37 | 1/2 | 40 | 35 | 9 | 220 | 50 | 25 1'' |
| IDB-45 | 0.55 | 3/4 | 55 | 40 | 9 | 220 | 50 | 25 1'' |
| IDB-65 | 0.75 | 1 | 55 | 50 | 9 | 220 | 50 | 25 1'' |
Structural Characteristics:
| Main Specification | Standard | Optional |
| Transmission medium | Clean Water | |
| Pump body | Cast Iron | |
| Impeller | Brass | |
| Motor housing | Aluminum | |
| Stator&Rotor | 1.Cold-rolled silicon steel sheet by a high-speed punching machine. 2. 100% high-quality copper wire | |
| Front cover | Cast Iron | Brass plate embedded to avoid impeller jam |
| Bearing | Chinese Best Quality Bearing | NSK,SKF or on request |
| Mechanical seal | Graphene/Ceramic | Silicon Carbon |
| Shaft | Carbon Steel | Stainless Steel |
| Insulation | Class B | Class F |
| Protection | IP44 | IP54 |
| Voltage | 220-240V Single Phase | On Request |
| Frequency | 50HZ | 60HZ |
| thermal protection | No | Yes |
| Automatic Pressure Control System | No | Yes |
| Cooling Type | External Ventilation | |
| Max. Suction lift | 9M | |
| Max. Fluid Temperature | +60℃ | |
| Max. Environment Temperature | +40℃ | |
| Installation | Horizontal | |
| Connect Type | Thread | |
| CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC | ||
Warranty:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.
FAQ:
1. Q: How about the MOQ?
A: Usually, it is 100 PCS for each model.
2.Q: Are you a factory or a trading company?
A: we make water pump, motor, alternator, and diesel generator since 2006
3. Q: Can you do OEM?
A: Yes, we can. Any OEM are welcome!
4. Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.
5. Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.
6. Q: How about the warranty?
A: 1 year from shipped on board date.
