Product Details:
Payment & Shipping Terms:
|
| Power: | 1HP / 0.75KW | Flow Max: | 50 L/Min |
|---|---|---|---|
| Head Max: | 55M | Suction Max: | 9M |
| Inlet/Outlet: | 1"x1" | Speed: | 3450RPM 60HZ |
| Product Name: | Electric Motor Water Pump | Application: | Booster Pumping Systerm |
| High Light: | electronic water pump,commercial electric water pump |
||

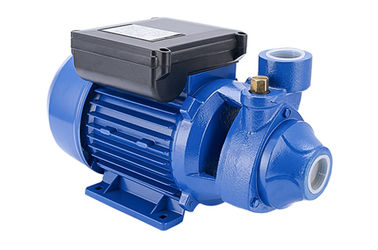

Single Phase Electric Motor Water Pump 220v QB 80 For Home Booster System
Description
QB 80 peripheral pump ( clean water pump) with turbine impeller. patented construction with single phase motor casing and pump-side wall.Pump body with brass plate embedded to avoid impeller jam.
Technical data:
| Model | Output | A | R.P.M. | Q.Max | H.Max | S.Head | Pipe Dia | LxWxH | N.W. |
| HP / KW | 1~220V | (l/min) | (m) | (M) | (mm) | (Kg) | |||
| QB80 | 1 / 0.75 | 4.8 | 2850 | 50 | 55 | 9 | 1½ "x1½" | 330x180x220 | 10 |
Other voltages and frequencies available on request
Applications
1. Clean water without abrasive particles,non-aggressive liquid, domestic use
2. In particular for delivering water in combination with small pressure sites and for irrigation
3. For Home Booster System
4. For clean liquids without abrasives, without suspended solids, non-explosive, non-aggressive for the pump materials.
Features of Domestic Pump
1. 100% copper wire by automatic winding machine
2. Cold-rolled silicon steel sheet by a high-speed punching machine
3. Strict quality control, including hot poting test, water leakage test, performance test
Pump Surve Picture
Structural Characteristics:
| Main Specification | Standard | Optional |
| Transmission medium | Clean Water | |
| Pump body | Cast Iron | |
| Impeller | Brass | |
| Motor housing | Aluminum | |
| Stator&Rotor | 1.Cold -rolled silicon steel sheet by high speed punching machine. 2. 100% high quality copper wire | |
| Front cover | Cast Iron | Brass plate embedded to avoid impeller jam |
| Bearing | Chinese Best Quality Bearing | NSK,SKF or on request |
| Mechanical seal | Graphene/Ceramic | Silicon Carbon |
| Shaft | Carbon Steel | Stainless Steel |
| Insulation | Class B | Class F |
| Protection | IP44 | IP54 |
| Voltage | 220-240V Single Phase | On Request |
| Frequency | 50HZ | 60HZ |
| thermal protection | No | Yes |
| Automatic Pressure Control System | No | Yes |
| Cooling Type | External Ventilation | |
| Max. Suction lift | 9M | |
| Max. Fluid Temperature | +60℃ | |
| Max. Environment Temperature | +40℃ | |
| Installation | Horizontal | |
| Connect Type | Thread | |
| CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC | ||
Shipping & Payment
1. FedEx/DHL/UPS/TNT for samples
2. Batch goods delivered by sea
3. Customers specifying freight forwarders or negotiable shipping methods
4. Delivery Time:7-15 days for samples; 25-30 days for batch goods
5. 30%T/T or 100%LC, balance against the copy of B/L
FAQ
1. Q: What’s the MOQ?
A: Trial sample order is ok.
2. Q: Are you factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.
4. Q: How can I get the pump?
A: Usually we suggest express for samples, if the volume reaches 1m³, the Seaway will be better.
5. Q: What’s the warranty period?
A: 1 year.
