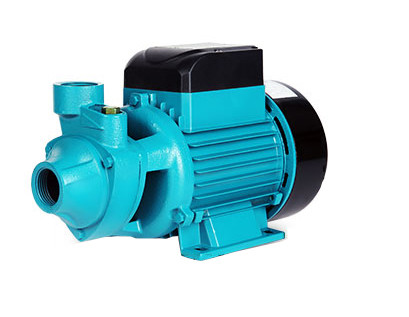

Mini Block Cast Iron Electric Pressure Water Pump Qb70 / 0.75hp Booster Pump

Mini Block Cast Iron Electric Pressure Water Pump Qb70 / 0.75hp Booster Pump
Mini Block Cast Iron Electric Pressure Water Pump Qb70 / 0.75hp Booster Pump

Large Image :  Mini Block Cast Iron Electric Pressure Water Pump Qb70 / 0.75hp Booster Pump

Product Details:

Place of Origin: Fujian China
Brand Name: ZOZHI
Certification: CE/SGS/ISO
Model Number: QB-70

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons , overall size:330x180x220mm/pc
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 30000pcs per month
Detailed Product Description
Rate Power: 0.75HP / 0.55KW Flow Max: 45L/Min
Head Max: 50M Suction Max: 9M
Inlet/Outlet: 1"x1" Speed: 3450RPM 60HZ
Product Name: Water Pump Application: Boosting
High Light:

electronic water pump

,

commercial electric water pump



Mini Block Cast Iron Electric Pressure Water Pump Qb70 / 0.75hp Booster Pump



APPLICATION FOR PERIPHERAL PUMP



The pump is with peripheral impeller containing numerous radial blades in its edge. Water is thrown outwards by centrifugal motion caused by the impeller. Then the water rotates with the impeller, generate high pressure. These pumps have a compact size and are very economical. They have
various appearances and motor shells to the different operating requirements.

The normal power standard is 220V 50Hz single phase. Three phase 220/380V/50Hz, 220/440V/60Hz, Single phase 230V,240V, 127V, 110V,115V/60Hz models are available on request.


SPECIFICATIONS FOR PERIPHERAL PUMP


1. Pump body: Cast iron


2. Impeller: Brass


3. Motor: Closed, externally ventilated


4. Insulation class: B (Class F if required)


5. Protection class: IP44 / IP54


6. Duty: Continuously rated


7. Mechanical seal:12 ceramic steatite/metalized carbon

DIMENSIONS



TYPE DIMENSIONS(mm)
a f h H1 H2 i m m1 n n1 w b g s
QB-60 42 265 154 63 80 20 98 80 120 100 63 22 8 7
QB-70 55 305 179 71 85 20 110 90 134 112 68 23 8 7
QB-80 55 305 179 71 85 20 110 90 134 112 68 23 8 7
QB-90 90 300 174 71 85 20 110 90 134 112 68 23 8 7



PERFORMANCE DATE



TYPE Power Ampere R.P.M Q.Max H.Max S.Head Pipe Dia L×W×H N.W
HP kW 1220V (l/min) (m) (m) (mm) (kg)
QB-60 0.5 0.37 2.6 2850 35 35 9 1"×1" 280×145×180 5.8
QB-70 0.75 0.55 3.6 40 45 310×180×200 9.7
QB-80 1 0.75 4.8 60 50 1-1/2"×1-1/2" 10.5
QB-90 1 0.75 4.8 50 70 1"×1" 330×180×200 11.5




Mini Block Cast Iron Electric Pressure Water Pump Qb70 / 0.75hp Booster Pump 0


FAQ


1. Q: What’s the MOQ?
    A: Trial sample order is ok.


2. Q: Are you factory or trading company?
   A: We are a manufacturer.


3. Q: Can you accept to use our logo?
    A: Yes, we can do OEM for you.


4. Q: How can I get the pump?
    A: Usually we suggest express for samples, if the volume reaches 1m³, the Seaway will be better.


5. Q: What’s the warranty period?
    A: 1 year.
