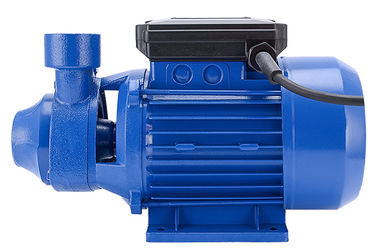

Peripheral Electric Motor Water Pump 3450RPM Speed For Home , 9M Max Suction

Place of Origin Fujian China
Brand Name ZOZHI
Certification CE/SGS/ISO
Model Number QB-60
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 30000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power 0.5HP Flow Max 35L/Min
Head Max 35M Suction Max 9M
Inlet/Outlet 1"x1" Speed 3450RPM
Product Name Electric Motor Water Pump Application Boosting
High Light

electronic water pump

,

commercial electric water pump

,

cast iron electric water pump

Leave a Message
Product Description



Peripheral Electric Motor Water Pump 3450RPM Speed For Home, 9M Max Suction


Application

  • Clean water, non-aggressive liquid only without sand or other solid impurities.
  • Domestic use and irrigation.
  • Bigger suction with self-priming.
  • Low power.
  • In particular for delivering water in combination with small pressure sets and for irrigation.
  • Installed in enclosed places, or at least protected against inclement weather.



Operation Conditions

  • Suction lift to 8m.
  • Liquid temperature up to +90℃
  • Ambient temperature up to +40℃
  • Max.Working Pressure: 6Bar



Pump Motor

  • 2-pole induction motor:50Hz
  • Insulation: Class B
  • Protection:IP44
  • With capacitor and thermal overload protection



Pump Material

  • Pump Body: Cast Iron
  • Impeller: Brass
  • Shaft with Rotor: Stainless Steel or Cs45#
  • Mechanical Seal: Silicon Carbide-graphite.
  • Copper Winding





Electric Motor Water Pump TECHNICAL DATA



Model Output A R.P.M. Q.Max H.Max S.Head Pipe Dia LxWxH N.W.
HP / KW 1~220V (l/min) (m) (M) (mm) (Kg)
QB60 0.5 / 0.37 1.6 2850 35 35 9 1"x1" 280x145x180 5.3
QB70 0.75 / 0.55 3.6 2850 45 50 9 1"x1" 330x180x220 9.5
QB80 1 / 0.75 4.8 2850 50 55 9 1½ "x1½" 330x180x220 10
QB90 1.5 / 1.1 6.2 2850 90 60 9 1½ "x1½" 425x200x220 22

Other voltages and frequencies available on request


Peripheral Electric Motor Water Pump 3450RPM Speed For Home , 9M Max Suction 0




STRUCTURAL CHARACTERISTICS



Main Specification Standard Optional
Transmission medium Clean Water
Pump body Cast Iron
Impeller Brass
Motor housing Aluminum
Stator&Rotor 1. Cold-rolled silicon steel sheet by a high-speed punching machine. 2. 100% high-quality copper wire
Front cover Cast Iron Brass plate embedded to avoid impeller jam
Bearing Chinese Best Quality Bearing NSK, SKF, or on request
Mechanical seal Graphene/Ceramic Silicon Carbon
Shaft Carbon Steel Stainless Steel
Insulation Class B Class F
Protection IP44 IP54
Voltage 220-240V Single Phase On Request
Frequency 50HZ 60HZ
thermal protection No Yes
Automatic Pressure Control System No Yes
Cooling Type External Ventilation
Max. Suction lift 9M
Max. Fluid Temperature +60℃
Max. Environment Temperature +40℃
Installation Horizontal
Connect Type Thread
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC





Electric Motor Water Pump Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

FAQ
1. Q: What’s the MOQ?
A: Trial sample order is ok.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: How can I get the pump?
A: Usually, we suggest express for samples. If the volume reaches 1m³, the Seaway will be better.
5. Q: What’s the warranty period?
A: 1 year.
