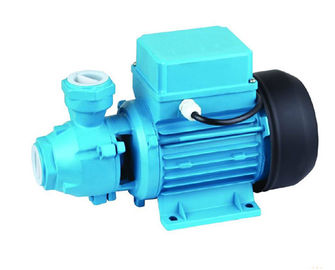

Tops KF Series Small Electric Motor Water Pump / 0.75hp Peripheral Water Pump

Place of Origin China
Brand Name ZOZHI
Certification CE/SGS/ISO
Model Number KF4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 30000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Goods Name Electric Motor Water Pump Application Pumping
Out Put 0.75HP/0.75KW Flow Max 50L/Min
Head Max 70M In Put Max Power 1.1KW
Inlet/Outlet 1"x1" Frequency 50 HZ
Highlight

electric portable water pump

,

commercial electric water pump

Leave a Message
Product Description



Tops KF Series Small Electric Motor Water Pump / 0.75hp Peripheral Water Pump





PUMP FEATURES:



A) Enamel technique: clean, healthy, environmental, prevent secondary pollution

B) Plating shaft with enameled wire 100% copper wire

C) A pump has a peripheral impeller containing numerous radial blades on its edge.

D) Completely processed shaft by CNC precision automatic lathe imported from Japan, the surface will be more smooth, and dimension will be more precise

E)  With thermal overload protector



Electric Motor Water Pump APPLICATION:



KF series pump with peripheral impeller can offer high pressure with comparatively low powers and have particularly steady operating curves.

For the correct functioning of the pump, use to pump clean water, or non-aggressive liquids only, without sand or other solid impurities.

They are qualified in domestic fitting to increase the system pressure in aqueducts, and automatic water distribution by auto calve tanks and hydrosphere units.





OPERATING CONDITIONS:



  1. Liquid temperature up to 60℃
  2. Ambient temperature up to 40℃
  3. Total suction lift to 9m
  4. Continuous duty



Electric Motor Water Pump CONSTRUCTS:



Pump

  • Pump Body:  Cast Iron
  • Impeller: Brass
  • Pump Cover: Cast Iron / Brass
  • Mechanical Seal: Carbon / Ceramic / Stainless Steel



Motor

  • Single Phase
  • Heavy-Duty Continuous Work
  • Motor Housing: Aluminum
  • Shaft: Carbon Steel / Stainless Steel
  • Insulation: Class B / Class F
  • Protection:IP44 / IP 54
  • Cooling: External Ventilation

Tops KF Series Small Electric Motor Water Pump / 0.75hp Peripheral Water Pump 0


Electric Motor Water Pump GUARANTEE

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



FAQ


1. Q: What’s the MOQ?
A: Trial sample order is ok.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: How can I get the pump?
A: Usually, we suggest express for samples. If the volume reaches 1m³, the Seaway will be better.

5. Q: What’s the warranty period?
A: 1 year.
