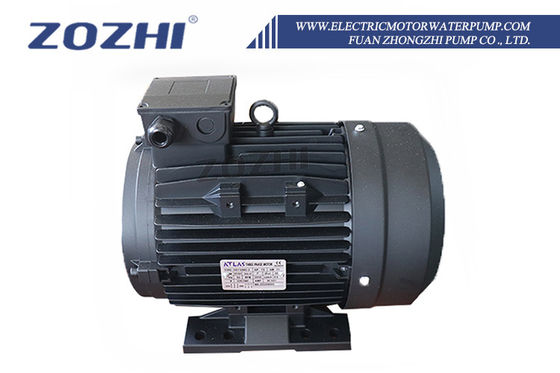

Compact Hollow Shaft Motor Engineered for Industrial Automation and Assembly Lines Delivering and Smooth Performance
| Place of Origin | FUAN CHINA |
|---|---|
| Brand Name | ZOZHI |
| Certification | CE,ISO |
| Model Number | HS160L3-4 |
| Minimum Order Quantity | 1pc |
| Price | USD550-USD700 |
| Packaging Details | Packed in veneer case |
| Delivery Time | 15 working days after received your payment |
| Payment Terms | L/C, T/T, Western Union, Alipay,Wechat,Credit Card |
| Supply Ability | 10000pcs/month |
Product Details
| Product Name | Hollow Shaft Motor | Application | Pressure Washer Machine |
|---|---|---|---|
| Power Range | 22KW/30HP | V.& Hz | 220/380V 50Hz |
| Flange Size | 87/61mm | Hollow Shaft D. | 24mm |
| Housing | Die Cast Aluminum | Insulation Class | F Or H |
| Protection | IP55 Or IP65 | Bearing | Two Bearings |
| Highlight | Compact Hollow Shaft Motor,Hollow Shaft Motor for Automation,Smooth Hollow Shaft Motor |
||
Product Description
Product Overview: HS100L1-4 Hollow Shaft AC Motor
The HS100L1-4 is a 2.2kW (3HP) three-phase hollow shaft AC motor engineered for direct coupling with high-pressure pumps in pressure washer and industrial washing plant applications. Operating at 380V, 50Hz, 1500 RPM, this waterproof foot-mount electric drive delivers reliable, cost-efficient performance while significantly reducing overall machine size.
Built with premium materials and available in IE1, IE2, and IE3 efficiency classes, this hollow shaft motor ensures 100% output and long-term durability. A wide range of flanges and shaft options guarantees compatibility with most pumps on the market.
Technical Specifications
- Power Rating: 2.2kW (3HP)
- Supply Voltage: 380V / 440V
- Frequency: 50Hz
- Speed: 1500 RPM (4-Pole)
- Shaft Type: Hollow Shaft, 24mm Outer Diameter
- Mounting: B34 Face Flange / Foot Mount
- IEC Frame: 100L
- Material: Aluminum Housing
- Efficiency Class: IE1 / IE2 / IE3 Available
- Protection: Waterproof Design
Applications: Pressure Cleaners & Industrial Washing Plants
The direct coupling between the motor and high-pressure pump makes this hollow shaft motor ideal for pressure cleaners and industrial washing plants. This configuration significantly reduces the machine's overall footprint and provides a reliable, cost-efficient solution. Our extensive range of flanges and shafts ensures compatibility with most pumps on the market.
Hollow shaft AC motor directly coupled to a high-pressure pump in a pressure cleaning system.
Key Advantages
- High-efficiency IE2 motor with premium materials for 100% output
- Proven reliability with excellent customer feedback
- Custom OEM & ODM services available
- Direct manufacturer with 24-hour online support
- 3-year comprehensive warranty
- 7-day shipment for stock materials
Related Products
Hollow Shaft Three Phase Motor
Hollow Shaft Single Phase Motor
Solid Shaft Three Phase Motor
Solid Shaft Single Phase Motor
Solid Shaft AC Induction Motor
Electric Centrifugal Switch
Manufacturing Facility
Motor manufacturing factory facility with production lines for hollow shaft AC motors.
Customer Feedback
Technical Data: Three-Phase Hollow Shaft Motor 400V 50Hz (IE1 / IE2 / IE3)
| FRAME | POWER (kW) | POWER (HP) | RPM | COS φ (P.F.) | EFF. % | VOLT (V) | AMPERE (A) |
|---|---|---|---|---|---|---|---|
| HS90L1-2 | 2.2 | 3 | 2820 | 0.86 | 78 | 400 | 4.9 |
| HS90L2-2 | 3 | 4 | 2820 | 0.86 | 78 | 400 | 6.6 |
| HS90L3-2 | 3.7 | 5 | 2820 | 0.80 | 83 | 400 | 8.6 |
| HS100L1-2 | 3 | 4 | 2840 | 0.83 | 81 | 400 | 7 |
| HS100L2-2 | 4 | 5.5 | 2850 | 0.86 | 82 | 400 | 8.5 |
| HS100M1-2 | 4 | 5.5 | 2830 | 0.84 | 82 | 400 | 9.4 |
| HS112M2-2 | 5.5 | 7.5 | 2840 | 0.85 | 83 | 400 | 11.7 |
| HS132S1-2 | 5.5 | 7.5 | 2890 | 0.86 | 84 | 400 | 11.6 |
| HS132S2-2 | 7.5 | 10 | 2900 | 0.86 | 84 | 400 | 15.4 |
| HS132M1-2 | 11 | 15 | 2920 | 0.88 | 86 | 400 | 21.8 |
| HS132M2-2 | 15 | 20 | 2920 | 0.88 | 86 | 400 | 29.3 |
| HS160M1-2 | 15 | 20 | 2920 | 0.87 | 88 | 400 | 28 |
| HS160M2-2 | 18.5 | 25 | 2920 | 0.87 | 89 | 400 | 34 |
| HS160M3-2 | 22 | 30 | 2920 | 0.87 | 89.2 | 400 | 41 |
Installation Dimensions
Motor installation dimension diagram showing flange and frame measurements for hollow shaft motors.
| FRAME | FLANGE M | FLANGE N | FLANGE S | FRAME A | FRAME AC | FRAME B | FRAME H | FRAME HC | FRAME L | FRAME K |
|---|---|---|---|---|---|---|---|---|---|---|
| 90L | 75/87 | 90/61 | 7/9 | 140 | 175 | 125 | 90 | 220 | 270 | 9.5 |
| 100L | 75/87 | 90/61 | 7/9 | 160 | 196 | 140 | 100 | 240 | 315 | 11 |
| 112M | 75/87 | 90/61 | 7/9 | 190 | 220 | 140 | 132 | 275 | 330 | 11 |
| 132S | 87 | 61 | 9 | 216 | 254 | 140 | 132 | 320 | 370 | 12 |
| 132M | 87 | 61 | 9 | 216 | 254 | 178 | 132 | 320 | 409 | 12 |
| 160M | 87 | 61 | 9 | 254 | 310 | 210 | 160 | 410 | 498 | 14.5 |
Warranty: 3-Year Guarantee
All motors are covered by a 3-year guarantee from shipped on board date. During the guarantee period, we provide free replacement parts for problems caused by production or material quality issues, excluding damage from incorrect customer operation. After expiration, we continue to provide cost-effective spare parts for maintenance.
Certification
Motor quality certification and compliance certificates for hollow shaft AC motors.
Frequently Asked Questions
What's the MOQ?
A trial sample order is acceptable.
Are you a factory or trading company?
We are a manufacturer with over 15 years of experience in motor production.
Can you accept using our logo?
Yes, we provide OEM services.
How can I get the sample?
We typically suggest express delivery for samples.
What's the warranty period?
3 years from shipped on board date.
What are your terms of payment?
30% advance payment, balance before shipment.
