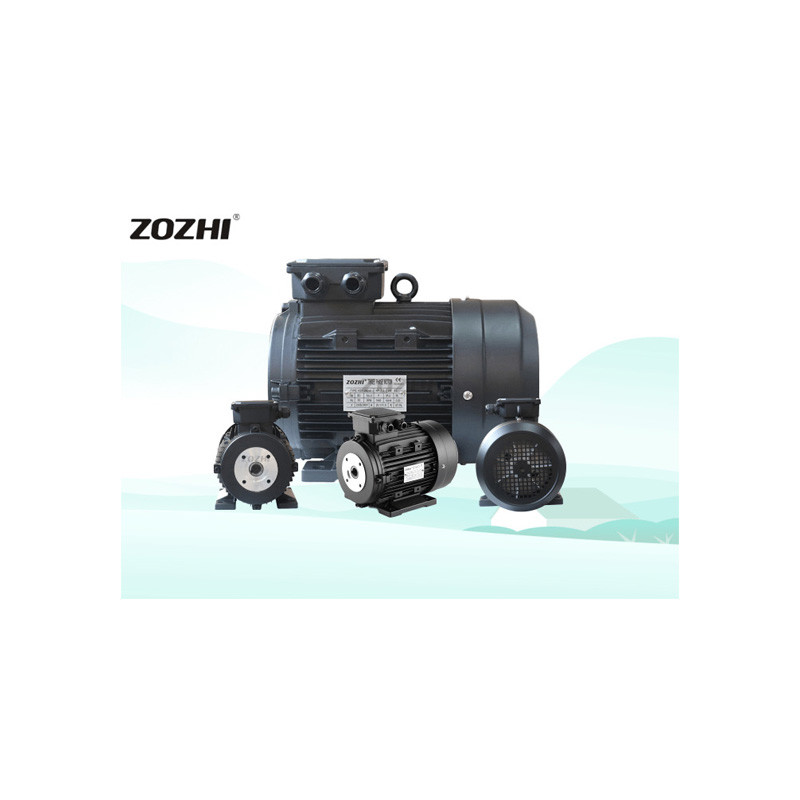

1 Phase Hollow Shaft Motor 3.7kw

Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number 112M2-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hollow Shaft Motor Voltage 230V
Phase Single Phase Output 5hp/3.7kw
Speed 1400rpm Shaft 24mm
Frame 90 Material Die Cast Aluminum
Pole 4 Insulation Class F
Protection IP55 Installation B3 B5 B14 B34 B35
IEC Standard IE1 Application Cleaning Machine / Pressure Washer Machine
High Light

hollow shaft electric motor

,

hollow shaft hydraulic motor

,

3.7kw hollow shaft electric motors

Leave a Message
Product Description

1 Phase Hollow Shaft Motor 3.7kw 5HP Asynchronous A.C. Motor With Female Shaft



hollow shaft electric motors are designed to allow direct connection with plunger pumps

Hollow-shaft coupling for direct mounting to the pump, in just a few minutes



230 - Volts

Single Phase 50 Hz

5 hp / 3.7kw

Speed - 1450 rpm

Shaft - 24mm Female HOLLOW

Frame - 112M

Foot Mount - B3





50Hz Electric Motor - B3 - Hollow shaft - Single Phase - 4Pole (1400 RPM)

FRAME POWER RPM COSφ EFF.% CAPACITOR VOLT AMPERE
KW H.P. P.F. U.F. V A
711-4 0.25 0.35 1360 0.91 57 10 230 2.1
712-4 0.37 0.5 1380 0.94 65 16 230 2.6
90L1-4 1.5 2 1400 0.98 70 45 230 9.5
100L1-4 1.85 2.5 1390 0.97 68 55 230 12.2
100L2-4 2.2 3 1350 0.99 74 70 230 13.1
100L3-4 2.6 3.5 1350 0.96 74 80 230 17.5
112M1-4 3 4 1400 0.98 74 80 230 18.1
112M2-4 3.7 5 1410 0.96 76 100 230 22

1 Phase Hollow Shaft Motor 3.7kw 0

FRAME FLANGE FRAME NO APPLICABLE PUMP MODEL
AR PUMP HAWK PUMP INTERPUMP
90 90mm 90L R.C.
100 90mm 100L RC - RR - RS - XT NHD - NHDP
112 61/90mm 112M XM - RK - RS-RC - RR



1 Phase Hollow Shaft Motor 3.7kw 1
