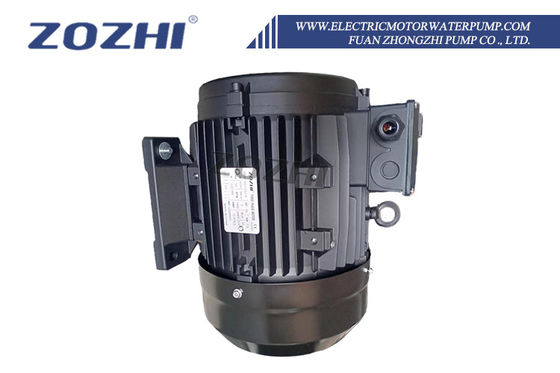

ZOZHI 5.5kW 3 Phase High Efficiency Asynchronous Motor 380V/440V Flange Mount for High Pressure Pump

  • ZOZHI 5.5kW 3 Phase High Efficiency Asynchronous Motor 380V/440V Flange Mount for High Pressure Pump
  • ZOZHI 5.5kW 3 Phase High Efficiency Asynchronous Motor 380V/440V Flange Mount for High Pressure Pump
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number HS160L3-4
Minimum Order Quantity 1pc
Price USD550-USD700
Packaging Details Packed in veneer case
Delivery Time 15 working days after received your payment
Payment Terms L/C, T/T, Western Union, Alipay,Wechat,Credit Card
Supply Ability 10000pcs/month
Product Details
Product Name Hollow Shaft Motor Application Pressure Washer Machine
Power Range 22KW/30HP V.& Hz 220/380V 50Hz
Flange Size 87/61mm Hollow Shaft D. 24mm
Housing Die Cast Aluminum Insulation Class F Or H
Protection IP55 Or IP65 Bearing Two Bearings
Highlight

5.5kW 3 phase asynchronous motor

,

380V/440V flange mount motor

,

high efficiency pump motor
Leave a Message
Product Description
Product Overview

The ZOZHI HS Series 5.5kW three-phase high-efficiency asynchronous motor is engineered for direct coupling with high-pressure pumps. Available in 2-pole, 4-pole, and 6-pole configurations, this hollow shaft motor significantly reduces machine footprint while delivering reliable, cost-efficient operation for pressure cleaning and washing systems.

Supply: 220V / 380V
Power: 30HP / 22kW
RPM: 1400
Female Shaft: 24mm (Outer Diameter)
M/M: 87 / 61mm
Flange: B34 Face Flange
IEC Frame: 160
Material: Aluminum
Applications

The direct coupling between the motor and high-pressure pump makes this asynchronous motor ideal for pressure cleaners and washing plants. This configuration significantly reduces the machine's overall size and provides a reliable, cost-efficient solution. A wide range of flanges and shafts are available for direct coupling with most pumps on the market today.

ZOZHI 5.5kW three-phase asynchronous motor directly coupled to a high-pressure pump in a pressure cleaning system
Key Advantages
  • High-Efficiency Motor: High-standard materials with 100% output
  • Proven Reliability: Popular motor model with excellent customer feedback
  • OEM & ODM: Comprehensive customized service available
  • Direct Manufacturer: 24-hour online technical support
  • 3-Year Warranty: Minimal after-service requirements
  • 7-Day Shipment: Stock materials for fast delivery
Related Products
Hollow shaft three-phase electric motor Hollow Shaft Motor – Three Phase
Hollow shaft single-phase electric motor Hollow Shaft Motor – Single Phase
Solid shaft three-phase electric motor Solid Shaft Motor – 3 Phase
Solid shaft mono-phase electric motor Solid Shaft Motor – Mono Phase
Solid shaft AC induction single-phase motor Solid Shaft AC Induction Single-Phase Motor
Electric centrifugal switch for single-phase motor Electric Centrifugal Switch for Single Phase Motor
Factory Overview
Modern ZOZHI motor manufacturing facility with production lines
Customer Feedback
View customer feedback and reviews for the pressure washer hollow shaft 4-pole three-phase asynchronous motor
Technical Data
Three-Phase Hollow Shaft Motor 400V 50Hz (IE1 / IE2 / IE3)
FRAMEPOWER K.W.POWER HPRPMCOS φEFF.%VOLT VAMPERE A
HS90L1-22.2328200.86784004.9
HS90L2-23428200.86784006.6
HS90L3-23.7528200.80834008.6
HS100L1-23428400.83814007
HS100L2-245.528500.86824008.5
HS100M1-245.528300.84824009.4
HS112M2-25.57.528400.858340011.7
HS132S1-25.57.528900.868440011.6
HS132S2-27.51029000.868440015.4
HS132M1-2111529200.888640021.8
HS132M2-2152029200.888640029.3
HS160M1-2152029200.878840028
HS160M2-218.52529200.878940034
HS160M3-2223029200.8789.240041
Installation Dimensions
Technical diagram of motor installation dimensions and flange measurements
FRAMEFLANGE MFLANGE NFLANGE SFRAME AFRAME ACFRAME BFRAME HFRAME HCFRAME LFRAME K
90L75/8790/617/9140175125902202709.5
100L75/8790/617/916019614010024031511
112M75/8790/617/919022014013227533011
132S8761921625414013232037012
132M8761921625417813232040912
160M8761925431021016041049814.5
Warranty

Guaranteed for 3 years from the shipped-on-board date. During the guarantee period, ZOZHI will provide free replacement of easily damaged spare parts for problems caused by production quality or raw material defects, excluding damageable spare parts caused by incorrect artificial operation by the customer. After the warranty expires, cost-priced spare parts are available for maintenance.

Certifications
ZOZHI motor industry certifications and quality standards
Frequently Asked Questions
Q: What is the MOQ?
A: A trial sample order is acceptable.
Q: Are you a factory or a trading company?
A: We are a manufacturer focused on motors for more than 15 years.
Q: Can you accept using our logo?
A: Yes, we can provide OEM service for you.
Q: How can I get a sample?
A: We usually suggest express delivery for samples.
Q: What is the warranty period?
A: 3 years from the shipped-on-board date.
Q: What are your terms of payment?
A: 30% advance payment, balance before shipment.
