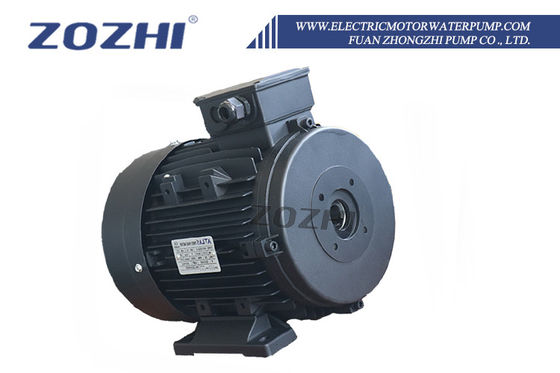

ZOZHI 5.5kW 3 Phase Hollow Shaft Motor offering performance and easy installation in robotics conveyor and automation applications
| Place of Origin | FUAN CHINA |
|---|---|
| Brand Name | ZOZHI |
| Certification | CE,ISO |
| Model Number | HS160L3-4 |
| Minimum Order Quantity | 1pc |
| Price | USD550-USD700 |
| Packaging Details | Packed in veneer case |
| Delivery Time | 15 working days after received your payment |
| Payment Terms | L/C, T/T, Western Union, Alipay,Wechat,Credit Card |
| Supply Ability | 10000pcs/month |
Product Details
| Product Name | Hollow Shaft Motor | Application | Pressure Washer Machine |
|---|---|---|---|
| Power Range | 22KW/30HP | V.& Hz | 220/380V 50Hz |
| Flange Size | 87/61mm | Hollow Shaft D. | 24mm |
| Housing | Die Cast Aluminum | Insulation Class | F Or H |
| Protection | IP55 Or IP65 | Bearing | Two Bearings |
| Highlight | 5.5kW hollow shaft motor,3 phase hollow shaft motor,hollow shaft motor for conveyors |
||
Product Description
The ZOZHI 5.5kW three-phase hollow shaft motor combines high-efficiency asynchronous performance with straightforward installation, making it a dependable drive solution for robotics, conveyor systems, and industrial automation. Built for high-pressure pump applications, this 380V/440V IMB5 flange-mounted motor meets IE2 efficiency standards while delivering stable, cost-effective operation.
Product Overview
The ZOZHI three-phase IE2 efficiency flange motor features a robust aluminum housing with an IP55 waterproof rating and B34 face flange mounting. Compatible with 50/60Hz power supplies, this hollow shaft motor is engineered for demanding industrial environments where reliability and compact integration matter.
Technical Specifications
- Series: HS Series Asynchronous Electric Hollow Shaft Motor
- Power: 5.5kW (available configurations up to 22kW / 30Hp)
- Pole Options: 2-pole, 4-pole, and 6-pole configurations
- Supply Voltage: 220V / 380V
- Speed: 1400 RPM
- Female Shaft: 24mm outer diameter
- Mounting Dimensions: M/M 87/61mm
- Flange Type: B34 face flange
- IEC Frame: 160
- Material: Aluminum construction
Applications
The direct coupling between motor and high-pressure pump makes this hollow shaft motor ideal for pressure cleaners and washing plants. This configuration significantly reduces overall machine size while providing reliable, cost-efficient operation, and it remains compatible with most pumps on the market.
Key Advantages
- High-Efficiency Design: Premium materials ensure 100% power output
- Proven Reliability: Consistently receives positive customer feedback
- Customization Options: OEM & ODM services available
- Direct Manufacturer: 24-hour online technical support
- Extended Warranty: Comprehensive 3-year protection
- Fast Delivery: Stock materials enable 7-day shipment
Related Products
Hollow Shaft Motor Three Phase
Hollow Shaft Motor Single Phase
Solid Shaft Motor 3 Phase
Solid Shaft Motor Mono Phase
Solid Shaft AC Induction Single-Phase Motor
Electric Centrifugal Switch for Single Phase Motor
Manufacturing Facility
Customer Feedback
Technical Data
Three-Phase Hollow Shaft Motor 400V 50Hz (IE1 / IE2 / IE3)
| FRAME | POWER K.W. | HP | RPM | COS φ | EFF.% | VOLT | AMPERE |
|---|---|---|---|---|---|---|---|
| HS90L1-2 | 2.2 | 3 | 2820 | 0.86 | 78 | 400 | 4.9 |
| HS90L2-2 | 3 | 4 | 2820 | 0.86 | 78 | 400 | 6.6 |
| HS90L3-2 | 3.7 | 5 | 2820 | 0.80 | 83 | 400 | 8.6 |
| HS100L1-2 | 3 | 4 | 2840 | 0.83 | 81 | 400 | 7 |
| HS100L2-2 | 4 | 5.5 | 2850 | 0.86 | 82 | 400 | 8.5 |
| HS100M1-2 | 4 | 5.5 | 2830 | 0.84 | 82 | 400 | 9.4 |
| HS112M2-2 | 5.5 | 7.5 | 2840 | 0.85 | 83 | 400 | 11.7 |
| HS132S1-2 | 5.5 | 7.5 | 2890 | 0.86 | 84 | 400 | 11.6 |
| HS132S2-2 | 7.5 | 10 | 2900 | 0.86 | 84 | 400 | 15.4 |
| HS132M1-2 | 11 | 15 | 2920 | 0.88 | 86 | 400 | 21.8 |
| HS132M2-2 | 15 | 20 | 2920 | 0.88 | 86 | 400 | 29.3 |
| HS160M1-2 | 15 | 20 | 2920 | 0.87 | 88 | 400 | 28 |
| HS160M2-2 | 18.5 | 25 | 2920 | 0.87 | 89 | 400 | 34 |
| HS160M3-2 | 22 | 30 | 2920 | 0.87 | 89.2 | 400 | 41 |
Installation Dimensions
| FRAME | FLANGE M | FLANGE N | FLANGE S | A | AC | B | H | HC | L | K |
|---|---|---|---|---|---|---|---|---|---|---|
| 90L | 75/87 | 90/61 | 7/9 | 140 | 175 | 125 | 90 | 220 | 270 | 9.5 |
| 100L | 75/87 | 90/61 | 7/9 | 160 | 196 | 140 | 100 | 240 | 315 | 11 |
| 112M | 75/87 | 90/61 | 7/9 | 190 | 220 | 140 | 132 | 275 | 330 | 11 |
| 132S | 87 | 61 | 9 | 216 | 254 | 140 | 132 | 320 | 370 | 12 |
| 132M | 87 | 61 | 9 | 216 | 254 | 178 | 132 | 320 | 409 | 12 |
| 160M | 87 | 61 | 9 | 254 | 310 | 210 | 160 | 410 | 498 | 14.5 |
Warranty & Support
A 3-year guarantee applies from the shipped-on-board date. During the guarantee period, we provide free replacement parts for issues caused by production quality or materials. After expiration, cost-effective spare parts remain available for ongoing maintenance.
Quality Certification
Frequently Asked Questions
What is the MOQ?
A trial sample order is acceptable.
Are you a factory or a trading company?
We are a manufacturer with over 15 years of motor production experience.
Can you accept using our logo?
Yes, we provide OEM services.
How can I get a sample?
We typically recommend express shipping for samples.
What is the warranty period?
3 years from the shipped-on-board date.
What are your terms of payment?
30% advance payment, with the balance due before shipment.
