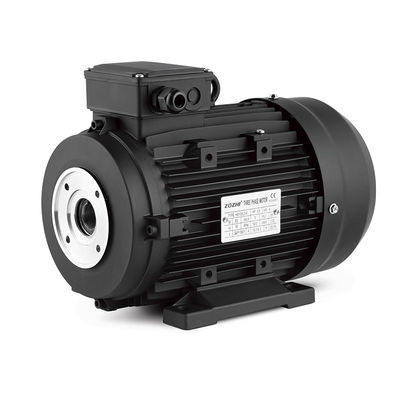

ZOZHI Hollow Shaft AC Motor 160M1-4 Three Phase 380V 50Hz 22kW 1500 RPM IE1 Waterproof Foot Mount

  • ZOZHI Hollow Shaft AC Motor 160M1-4 Three Phase 380V 50Hz 22kW 1500 RPM IE1 Waterproof Foot Mount
  • ZOZHI Hollow Shaft AC Motor 160M1-4 Three Phase 380V 50Hz 22kW 1500 RPM IE1 Waterproof Foot Mount
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number HS160L3-4
Minimum Order Quantity 1pc
Price USD550-USD700
Packaging Details Packed in veneer case
Delivery Time 15 working days after received your payment
Payment Terms L/C, T/T, Western Union, Alipay,Wechat,Credit Card
Supply Ability 10000pcs/month
Product Details
Product Name Hollow Shaft Motor Application Pressure Washer Machine
Power Range 22KW/30HP V.& Hz 220/380V 50Hz
Flange Size 87/61mm Hollow Shaft D. 24mm
Housing Die Cast Aluminum Insulation Class F Or H
Protection IP55 Or IP65 Bearing Two Bearings
Highlight

Hollow Shaft AC Motor 22kW

,

Three Phase 380V 1500 RPM Motor

,

Waterproof Foot Mount Motor
Leave a Message
Product Description
Product Overview: ZOZHI 2.2kW Hollow Shaft Induction Motor

The ZOZHI 2.2kW Hollow Shaft Induction Motor is a three-phase asynchronous squirrel cage motor engineered for direct coupling with high-pressure water pumps. Featuring a foot mount, 1500 RPM nominal speed, IE1 efficiency, and IP54 waterproof protection, this motor operates on 380V at 50Hz or 60Hz. Its hollow shaft design eliminates the need for belts or couplings, significantly reducing machine footprint and improving reliability for pressure cleaners and washing plants.

Key Specifications
  • Model Series: HS Series Asynchronous Electric Hollow Shaft Motor
  • Power Output: 2.2kW (3 HP) — also available in 2-pole, 4-pole, and 6-pole configurations
  • Supply Voltage: 220V / 380V, three-phase
  • Speed: 1500 RPM nominal (2-pole: 2820 RPM)
  • Hollow Shaft: Female shaft with 24mm outer diameter
  • Mounting Dimensions: M/M 87/61mm
  • Flange Type: B34 face flange
  • IEC Frame: 160
  • Housing Material: Aluminum
  • Protection: IP54 waterproof
  • Efficiency Class: IE1 (IE2/IE3 available on request)
Applications & Direct Coupling Advantages

The direct coupling between the hollow shaft motor and high-pressure pump makes this motor ideal for pressure cleaners and washing plants. This configuration significantly reduces the machine's overall size and provides a reliable, cost-efficient solution. Our wide range of flanges and shafts are suitable for direct coupling with most pumps on the market.

HS Series hollow shaft motor directly coupled to a high-pressure pump in a pressure cleaning system
Key Advantages
  • High-Efficiency Motor: High-standard materials with 100% output performance
  • Proven Reliability: Excellent customer feedback and satisfaction
  • Customization Options: OEM & ODM services available
  • Direct Manufacturer: 24-hour online technical support
  • Extended Warranty: 3 years comprehensive coverage
  • Fast Delivery: 7-day shipment for stock materials
Related Products
Hollow shaft three phase motor

Hollow Shaft Motor Three Phase

Hollow shaft single phase motor

Hollow Shaft Motor Single Phase

Solid shaft three phase motor

Solid Shaft Motor 3 Phase

Solid shaft mono phase motor

Solid Shaft Motor Mono Phase

AC induction single-phase motor with solid shaft

Solid Shaft AC Induction Single-Phase Motor

Electric centrifugal switch for single phase motor

Electric Centrifugal Switch for Single Phase Motor

Manufacturing Facility
Manufacturing facility for electric motors with production lines and assembly stations
Customer Feedback

View customer feedback and reviews for hollow shaft motors

Customer feedback and reviews for hollow shaft motors
Technical Data: Three-Phase Hollow Shaft Motor 400V 50Hz (IE1/IE2/IE3)
FRAME POWER (kW) POWER (HP) RPM COS φ (P.F.) EFF.% VOLT (V) AMPERE (A)
HS90L1-22.2328200.86784004.9
HS90L2-23428200.86784006.6
HS90L3-23.7528200.80834008.6
HS100L1-23428400.83814007
HS100L2-245.528500.86824008.5
HS100M1-245.528300.84824009.4
HS112M2-25.57.528400.858340011.7
HS132S1-25.57.528900.868440011.6
HS132S2-27.51029000.868440015.4
HS132M1-2111529200.888640021.8
HS132M2-2152029200.888640029.3
HS160M1-2152029200.878840028
HS160M2-218.52529200.878940034
HS160M3-2223029200.8789.240041
Installation Dimensions
Hollow shaft motor installation dimension diagram showing flange and frame measurements
FRAME FLANGE M FLANGE N FLANGE S A AC B H HC L K
90L75/8790/617/9140175125902202709.5
100L75/8790/617/916019614010024031511
112M75/8790/617/919022014013227533011
132S8761921625414013232037012
132M8761921625417813232040912
160M8761925431021016041049814.5
Warranty & Certification

3-year warranty from shipped on board date. During the guarantee period, we provide free replacement for problems caused by production quality or materials, excluding damage from incorrect operation. Cost-effective spare parts available after warranty expiration.

Quality certification for electric motors including ISO and safety standards
Frequently Asked Questions

What's the MOQ?

A trial sample order is acceptable.

Are you a factory or trading company?

We are the manufacturer with over 15 years of experience in motor production.

Can you accept using our logo?

Yes, we provide OEM services for custom branding.

How can I get the sample?

We typically recommend express shipping for samples.

What's the warranty period?

3 years from the shipped on board date.

What are your terms of payment?

30% advance payment, balance due before shipment.
