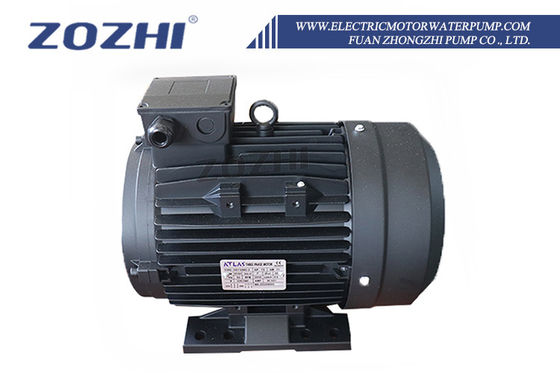

2.2KW 3HP Hollow Shaft AC Motor Three Phase 380V 50HZ 1500 RPM Waterproof Foot Mount Electric Drive HS100L1-4
| Place of Origin | FUAN CHINA |
|---|---|
| Brand Name | ZOZHI |
| Certification | CE,ISO |
| Model Number | HS160L3-4 |
| Minimum Order Quantity | 1pc |
| Price | USD550-USD700 |
| Packaging Details | Packed in veneer case |
| Delivery Time | 15 working days after received your payment |
| Payment Terms | L/C, T/T, Western Union, Alipay,Wechat,Credit Card |
| Supply Ability | 10000pcs/month |
Product Details
| Product Name | Hollow Shaft Motor | Application | Pressure Washer Machine |
|---|---|---|---|
| Power Range | 22KW/30HP | V.& Hz | 220/380V 50Hz |
| Flange Size | 87/61mm | Hollow Shaft D. | 24mm |
| Housing | Die Cast Aluminum | Insulation Class | F Or H |
| Protection | IP55 Or IP65 | Bearing | Two Bearings |
| Highlight | Hollow Shaft AC Motor 2.2KW,Three Phase 380V 1500 RPM Motor,Waterproof Foot Mount Electric Motor |
||
Product Description
Product Overview
The HS100L1-4 is a 2.2kW (3HP) three-phase hollow shaft AC motor designed for direct coupling with high-pressure pumps in pressure washer and washing plant applications. Operating at 380V, 50Hz, 1500 RPM, this waterproof foot-mount electric drive delivers reliable, cost-efficient performance while significantly reducing overall machine size.
Built with premium materials and available in IE1, IE2, and IE3 efficiency classes, this hollow shaft motor ensures 100% output and long-term durability. A wide range of flanges and shaft options guarantees compatibility with most pumps on the market.
Technical Specifications
Power Rating: 2.2kW (3HP)
Supply Voltage: 380V / 440V
Frequency: 50Hz
Speed: 1500 RPM (4-Pole)
Shaft Type: Hollow Shaft, 24mm Outer Diameter
Mounting: B34 Face Flange / Foot Mount
IEC Frame: 100L
Material: Aluminum Housing
Efficiency Class: IE1 / IE2 / IE3 Available
Protection: Waterproof Design
Application
The direct coupling between the motor and high-pressure pump makes this hollow shaft motor ideal for pressure cleaners and industrial washing plants. This configuration significantly reduces the machine's overall footprint and provides a reliable, cost-efficient solution. Our extensive range of flanges and shafts ensures compatibility with most pumps on the market.
Key Advantages
- High-efficiency IE2 motor with premium materials for 100% output
- Proven reliability with excellent customer feedback
- Custom OEM & ODM services available
- Direct manufacturer with 24-hour online support
- 3-year comprehensive warranty
- 7-day shipment for stock materials
Related Products
Manufacturing Facility
Customer Feedback
Technical Data
Three-Phase Hollow Shaft Motor 400V 50Hz (IE1 / IE2 / IE3)
| FRAME | POWER (kW) | POWER (HP) | RPM | COS φ (P.F.) | EFF. % | VOLT (V) | AMPERE (A) |
|---|---|---|---|---|---|---|---|
| HS90L1-2 | 2.2 | 3 | 2820 | 0.86 | 78 | 400 | 4.9 |
| HS90L2-2 | 3 | 4 | 2820 | 0.86 | 78 | 400 | 6.6 |
| HS90L3-2 | 3.7 | 5 | 2820 | 0.80 | 83 | 400 | 8.6 |
| HS100L1-2 | 3 | 4 | 2840 | 0.83 | 81 | 400 | 7 |
| HS100L2-2 | 4 | 5.5 | 2850 | 0.86 | 82 | 400 | 8.5 |
| HS100M1-2 | 4 | 5.5 | 2830 | 0.84 | 82 | 400 | 9.4 |
| HS112M2-2 | 5.5 | 7.5 | 2840 | 0.85 | 83 | 400 | 11.7 |
| HS132S1-2 | 5.5 | 7.5 | 2890 | 0.86 | 84 | 400 | 11.6 |
| HS132S2-2 | 7.5 | 10 | 2900 | 0.86 | 84 | 400 | 15.4 |
| HS132M1-2 | 11 | 15 | 2920 | 0.88 | 86 | 400 | 21.8 |
| HS132M2-2 | 15 | 20 | 2920 | 0.88 | 86 | 400 | 29.3 |
| HS160M1-2 | 15 | 20 | 2920 | 0.87 | 88 | 400 | 28 |
| HS160M2-2 | 18.5 | 25 | 2920 | 0.87 | 89 | 400 | 34 |
| HS160M3-2 | 22 | 30 | 2920 | 0.87 | 89.2 | 400 | 41 |
Installation Dimensions
| FRAME | FLANGE M | FLANGE N | FLANGE S | FRAME A | FRAME AC | FRAME B | FRAME H | FRAME HC | FRAME L | FRAME K |
|---|---|---|---|---|---|---|---|---|---|---|
| 90L | 75/87 | 90/61 | 7/9 | 140 | 175 | 125 | 90 | 220 | 270 | 9.5 |
| 100L | 75/87 | 90/61 | 7/9 | 160 | 196 | 140 | 100 | 240 | 315 | 11 |
| 112M | 75/87 | 90/61 | 7/9 | 190 | 220 | 140 | 132 | 275 | 330 | 11 |
| 132S | 87 | 61 | 9 | 216 | 254 | 140 | 132 | 320 | 370 | 12 |
| 132M | 87 | 61 | 9 | 216 | 254 | 178 | 132 | 320 | 409 | 12 |
| 160M | 87 | 61 | 9 | 254 | 310 | 210 | 160 | 410 | 498 | 14.5 |
Warranty
3-Year Guarantee
All motors are covered by a 3-year guarantee from shipped on board date. During the guarantee period, we provide free replacement parts for problems caused by production or material quality issues, excluding damage from incorrect customer operation. After expiration, we continue to provide cost-effective spare parts for maintenance.
Certification
Frequently Asked Questions
What's the MOQ?
A trial sample order is acceptable.
Are you a factory or trading company?
We are a manufacturer with over 15 years of experience in motor production.
Can you accept using our logo?
Yes, we provide OEM services.
How can I get the sample?
We typically suggest express delivery for samples.
What's the warranty period?
3 years from shipped on board date.
What are your terms of payment?
30% advance payment, balance before shipment.
