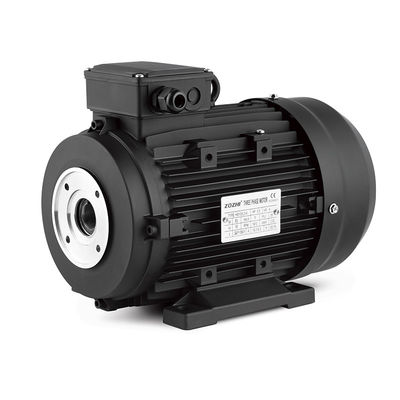

ZOZHI MS Series Three Phase Asynchronous AC Motor 380V 5.5kW 1500 RPM Foot Mount Waterproof 50/60Hz
| Place of Origin | FUAN CHINA |
|---|---|
| Brand Name | ZOZHI |
| Certification | CE,ISO |
| Model Number | HS160L3-4 |
| Minimum Order Quantity | 1pc |
| Price | USD550-USD700 |
| Packaging Details | Packed in veneer case |
| Delivery Time | 15 working days after received your payment |
| Payment Terms | L/C, T/T, Western Union, Alipay,Wechat,Credit Card |
| Supply Ability | 10000pcs/month |
Product Details
| Product Name | Hollow Shaft Motor | Application | Pressure Washer Machine |
|---|---|---|---|
| Power Range | 22KW/30HP | V.& Hz | 220/380V 50Hz |
| Flange Size | 87/61mm | Hollow Shaft D. | 24mm |
| Housing | Die Cast Aluminum | Insulation Class | F Or H |
| Protection | IP55 Or IP65 | Bearing | Two Bearings |
| Highlight | Three Phase Asynchronous AC Motor 380V,5.5kW 1500 RPM Foot Mount Motor,Waterproof 50/60Hz AC Motor |
||
Product Description
Product Overview: ZOZHI MS Series Three Phase Asynchronous AC Motor
The ZOZHI MS Series Three Phase Asynchronous AC Motor is a high-efficiency, waterproof electric motor engineered for demanding industrial applications. With a rated power of 5.5kW and 1500 RPM, this foot-mounted motor delivers reliable performance for conveyor systems, automated storage equipment, and material transport solutions. Designed for 380V supply at 50/60Hz, it combines robust construction with energy-efficient operation.
Key Specifications
- Model: HS Series Asynchronous Electric 5.5kW Hollow Shaft Motor
- Configurations: 2-pole, 4-pole, and 6-pole options available
- Supply Voltage: 220V / 380V
- Power Output: 30Hp / 22kW (peak configuration)
- Speed: 1400 RPM
- Female Shaft: 24mm outer diameter
- Mounting Dimensions: M/M 87/61mm
- Flange Type: B34 Face Flange
- IEC Frame: 160
- Housing Material: Aluminum
Applications & Direct Coupling Advantages
The direct coupling between the motor and high-pressure pump makes this hollow shaft motor ideal for pressure cleaners and washing plants. This configuration significantly reduces the machine's overall size while providing a reliable and cost-efficient solution. A wide range of flanges and shafts are available for direct coupling with most pumps on the market.
Key Advantages
- High-Efficiency Motor: High-standard materials with 100% output
- Popular Motor: Consistently receives positive customer feedback
- OEM & ODM: Comprehensive customized services available
- Direct Manufacturer: 24-hour online support
- 3 Years Warranty: Minimal after-service requirements
- 7 Days Shipment: Stock materials ensure fast delivery
Related Products
Manufacturing Facility
Customer Feedback
Technical Data: Three-Phase Hollow Shaft Motor 400V 50Hz (IE1/IE2/IE3)
| FRAME | POWER (kW) | RPM | COS φ | EFF.% | VOLT (V) | AMPERE (A) |
|---|---|---|---|---|---|---|
| HS90L1-2 | 2.2 | 2820 | 0.86 | 78 | 400 | 4.9 |
| HS90L2-2 | 3 | 2820 | 0.86 | 78 | 400 | 6.6 |
| HS90L3-2 | 3.7 | 2820 | 0.80 | 83 | 400 | 8.6 |
| HS100L1-2 | 3 | 2840 | 0.83 | 81 | 400 | 7 |
| HS100L2-2 | 4 | 2850 | 0.86 | 82 | 400 | 8.5 |
| HS100M1-2 | 4 | 2830 | 0.84 | 82 | 400 | 9.4 |
| HS112M2-2 | 5.5 | 2840 | 0.85 | 83 | 400 | 11.7 |
| HS132S1-2 | 5.5 | 2890 | 0.86 | 84 | 400 | 11.6 |
| HS132S2-2 | 7.5 | 2900 | 0.86 | 84 | 400 | 15.4 |
| HS132M1-2 | 11 | 2920 | 0.88 | 86 | 400 | 21.8 |
| HS132M2-2 | 15 | 2920 | 0.88 | 86 | 400 | 29.3 |
| HS160M1-2 | 15 | 2920 | 0.87 | 88 | 400 | 28 |
| HS160M2-2 | 18.5 | 2920 | 0.87 | 89 | 400 | 34 |
| HS160M3-2 | 22 | 2920 | 0.87 | 89.2 | 400 | 41 |
Installation Dimensions
| FRAME | FLANGE | FRAME DIMENSIONS |
|---|---|---|
| 90L | 75/87 | 90/61 |
| 100L | 75/87 | 90/61 |
| 112M | 75/87 | 90/61 |
| 132S | 87 | 61 |
| 132M | 87 | 61 |
| 160M | 87 | 61 |
Warranty & Certification
This motor is covered by a 3-year warranty from the shipped on board date. During the guarantee period, we provide free replacement for problems caused by production or material quality, excluding damage from incorrect operation. Cost-effective spare parts are available after warranty expiration.
Frequently Asked Questions
Q: What is the MOQ?
A: A trial sample order is acceptable.
Q: Are you a factory or trading company?
A: We are a manufacturer with over 15 years of experience in motor production.
Q: Can you accept using our logo?
A: Yes, we provide OEM services.
Q: How can I get the sample?
A: We typically suggest express delivery for samples.
Q: What is the warranty period?
A: 3 years from shipped on board date.
Q: What are your terms of payment?
A: 30% advance payment, balance before shipment.
