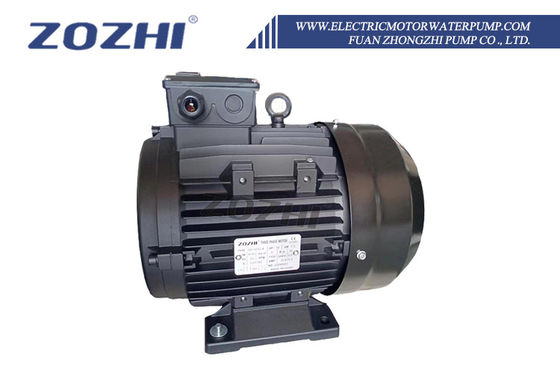

ZOZHI 2.2KW Three Phase Hollow Shaft Induction Motor 380V Asynchronous Squirrel Cage Electric Motor IE1 Waterproof 50Hz 60Hz
| Place of Origin | FUAN CHINA |
|---|---|
| Brand Name | ZOZHI |
| Certification | CE,ISO |
| Model Number | HS160L3-4 |
| Minimum Order Quantity | 1pc |
| Price | USD550-USD700 |
| Packaging Details | Packed in veneer case |
| Delivery Time | 15 working days after received your payment |
| Payment Terms | L/C, T/T, Western Union, Alipay,Wechat,Credit Card |
| Supply Ability | 10000pcs/month |
Product Details
| Product Name | Hollow Shaft Motor | Application | Pressure Washer Machine |
|---|---|---|---|
| Power Range | 22KW/30HP | V.& Hz | 220/380V 50Hz |
| Flange Size | 87/61mm | Hollow Shaft D. | 24mm |
| Housing | Die Cast Aluminum | Insulation Class | F Or H |
| Protection | IP55 Or IP65 | Bearing | Two Bearings |
| Highlight | 2.2KW hollow shaft induction motor,380V three phase squirrel cage motor,IE1 waterproof 50Hz 60Hz motor |
||
Product Description
ZOZHI 2.2KW Three Phase Hollow Shaft Induction Motor — 380V Asynchronous Squirrel Cage Electric Motor, IE1 Waterproof, 50Hz/60Hz
The ZOZHI HS Series three-phase hollow shaft induction motor is an energy-saving, waterproof, high-efficiency AC asynchronous motor designed for direct coupling with high-pressure water pumps. Featuring IP54 protection and a B34 face flange mount, this squirrel cage electric motor delivers reliable performance in demanding industrial environments. Available in 2-pole, 4-pole, and 6-pole configurations with supply voltages of 220V/380V and 50Hz/60Hz frequency compatibility.
Key Specifications
Series: HS Series Asynchronous Electric Motor
Pole Configurations: 2-pole, 4-pole, 6-pole
Supply Voltage: 220V / 380V
Power Output: 30Hp / 22kW
Speed: 1400 RPM
Female Shaft: 24mm Outer Diameter
Mounting Dimensions: M/M 87/61mm
Flange Type: B34 Face Flange
IEC Frame: 160
Housing Material: Aluminum
Protection Class: IP54 Waterproof
Efficiency Class: IE1
Applications
The direct coupling between the hollow shaft motor and high-pressure pump makes this motor ideal for pressure cleaners and washing plants. This configuration significantly reduces the machine's overall size and provides a reliable, cost-efficient solution. Our wide range of flanges and shafts are suitable for direct coupling with most pumps on the market.
Key Advantages
- High-Efficiency Motor: High-standard materials with 100% output performance
- Proven Reliability: Excellent customer feedback and satisfaction
- Customization Options: OEM & ODM services available
- Direct Manufacturer: 24-hour online technical support
- Extended Warranty: 3 years comprehensive coverage
- Fast Delivery: 7-day shipment for stock materials
Related Products
Manufacturing Facility
Customer Feedback
Technical Data — Three-Phase Hollow Shaft Motor 400V 50Hz (IE1/IE2/IE3)
| FRAME | POWER (K.W.) | POWER (HP) | RPM | COS φ (P.F.) | EFF.% | VOLT (V) | AMPERE (A) |
|---|---|---|---|---|---|---|---|
| HS90L1-2 | 2.2 | 3 | 2820 | 0.86 | 78 | 400 | 4.9 |
| HS90L2-2 | 3 | 4 | 2820 | 0.86 | 78 | 400 | 6.6 |
| HS90L3-2 | 3.7 | 5 | 2820 | 0.80 | 83 | 400 | 8.6 |
| HS100L1-2 | 3 | 4 | 2840 | 0.83 | 81 | 400 | 7 |
| HS100L2-2 | 4 | 5.5 | 2850 | 0.86 | 82 | 400 | 8.5 |
| HS100M1-2 | 4 | 5.5 | 2830 | 0.84 | 82 | 400 | 9.4 |
| HS112M2-2 | 5.5 | 7.5 | 2840 | 0.85 | 83 | 400 | 11.7 |
| HS132S1-2 | 5.5 | 7.5 | 2890 | 0.86 | 84 | 400 | 11.6 |
| HS132S2-2 | 7.5 | 10 | 2900 | 0.86 | 84 | 400 | 15.4 |
| HS132M1-2 | 11 | 15 | 2920 | 0.88 | 86 | 400 | 21.8 |
| HS132M2-2 | 15 | 20 | 2920 | 0.88 | 86 | 400 | 29.3 |
| HS160M1-2 | 15 | 20 | 2920 | 0.87 | 88 | 400 | 28 |
| HS160M2-2 | 18.5 | 25 | 2920 | 0.87 | 89 | 400 | 34 |
| HS160M3-2 | 22 | 30 | 2920 | 0.87 | 89.2 | 400 | 41 |
Installation Dimensions
| FRAME | FLANGE M | FLANGE N | FLANGE S | A | AC | B | H | HC | L | K |
|---|---|---|---|---|---|---|---|---|---|---|
| 90L | 75/87 | 90/61 | 7/9 | 140 | 175 | 125 | 90 | 220 | 270 | 9.5 |
| 100L | 75/87 | 90/61 | 7/9 | 160 | 196 | 140 | 100 | 240 | 315 | 11 |
| 112M | 75/87 | 90/61 | 7/9 | 190 | 220 | 140 | 132 | 275 | 330 | 11 |
| 132S | 87 | 61 | 9 | 216 | 254 | 140 | 132 | 320 | 370 | 12 |
| 132M | 87 | 61 | 9 | 216 | 254 | 178 | 132 | 320 | 409 | 12 |
| 160M | 87 | 61 | 9 | 254 | 310 | 210 | 160 | 410 | 498 | 14.5 |
Warranty & Certification
3-year warranty from shipped on board date. During the guarantee period, we provide free replacement for problems caused by production quality or materials, excluding damage from incorrect operation. Cost-effective spare parts available after warranty expiration.
Frequently Asked Questions
What's the MOQ?
A trial sample order is acceptable.
Are you a factory or trading company?
We are the manufacturer with over 15 years of experience in motor production.
Can you accept using our logo?
Yes, we provide OEM services for custom branding.
How can I get the sample?
We typically recommend express shipping for samples.
What's the warranty period?
3 years from the shipped on board date.
What are your terms of payment?
30% advance payment, balance due before shipment.
