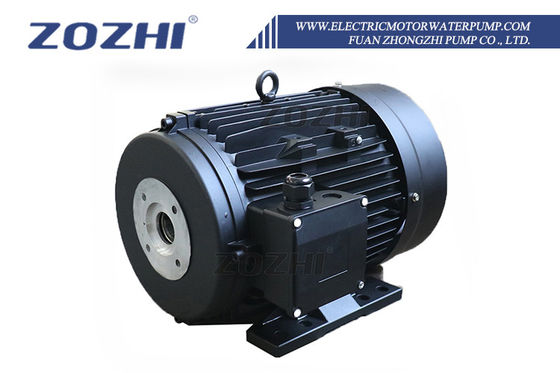

ZOZHI 2.2KW Hollow Shaft Induction Motor 380V Three Phase Asynchronous Squirrel Cage Foot Mount 1500 RPM IE1 Waterproof 50Hz 60Hz
| Place of Origin | FUAN CHINA |
|---|---|
| Brand Name | ZOZHI |
| Certification | CE,ISO |
| Model Number | HS160L3-4 |
| Minimum Order Quantity | 1pc |
| Price | USD550-USD700 |
| Packaging Details | Packed in veneer case |
| Delivery Time | 15 working days after received your payment |
| Payment Terms | L/C, T/T, Western Union, Alipay,Wechat,Credit Card |
| Supply Ability | 10000pcs/month |
Product Details
| Product Name | Hollow Shaft Motor | Application | Pressure Washer Machine |
|---|---|---|---|
| Power Range | 22KW/30HP | V.& Hz | 220/380V 50Hz |
| Flange Size | 87/61mm | Hollow Shaft D. | 24mm |
| Housing | Die Cast Aluminum | Insulation Class | F Or H |
| Protection | IP55 Or IP65 | Bearing | Two Bearings |
| Highlight | 2.2KW hollow shaft induction motor,380V three phase squirrel cage motor,1500 RPM foot mount motor |
||
Product Description
Product Overview: ZOZHI 2.2kW Hollow Shaft Induction Motor
The ZOZHI 2.2kW Hollow Shaft Induction Motor is a three-phase asynchronous squirrel cage motor designed for direct coupling with high-pressure water pumps. Featuring a foot mount, 1500 RPM nominal speed, IE1 efficiency, and IP54 waterproof protection, this motor operates on 380V at 50Hz or 60Hz. Its hollow shaft design eliminates the need for belts or couplings, significantly reducing machine footprint and improving reliability for pressure cleaners and washing plants.
Key Specifications
- Model Series: HS Series Asynchronous Electric Hollow Shaft Motor
- Power Output: 2.2kW (3 HP) — also available in 2-pole, 4-pole, and 6-pole configurations
- Supply Voltage: 220V / 380V, three-phase
- Speed: 1500 RPM nominal (2-pole: 2820 RPM)
- Hollow Shaft: Female shaft with 24mm outer diameter
- Mounting Dimensions: M/M 87/61mm
- Flange Type: B34 face flange
- IEC Frame: 160
- Housing Material: Aluminum
- Protection: IP54 waterproof
- Efficiency Class: IE1 (IE2/IE3 available on request)
Applications & Direct Coupling Advantages
The direct coupling between the hollow shaft motor and high-pressure pump makes this motor ideal for pressure cleaners and washing plants. This configuration significantly reduces the machine's overall size and provides a reliable, cost-efficient solution. Our wide range of flanges and shafts are suitable for direct coupling with most pumps on the market.
Key Advantages
- High-Efficiency Motor: High-standard materials with 100% output performance
- Proven Reliability: Excellent customer feedback and satisfaction
- Customization Options: OEM & ODM services available
- Direct Manufacturer: 24-hour online technical support
- Extended Warranty: 3 years comprehensive coverage
- Fast Delivery: 7-day shipment for stock materials
Related Products
Manufacturing Facility
Customer Feedback
View customer feedback and reviews for hollow shaft motors
Technical Data: Three-Phase Hollow Shaft Motor 400V 50Hz (IE1/IE2/IE3)
| FRAME | POWER (kW) | POWER (HP) | RPM | COS φ (P.F.) | EFF.% | VOLT (V) | AMPERE (A) |
|---|---|---|---|---|---|---|---|
| HS90L1-2 | 2.2 | 3 | 2820 | 0.86 | 78 | 400 | 4.9 |
| HS90L2-2 | 3 | 4 | 2820 | 0.86 | 78 | 400 | 6.6 |
| HS90L3-2 | 3.7 | 5 | 2820 | 0.80 | 83 | 400 | 8.6 |
| HS100L1-2 | 3 | 4 | 2840 | 0.83 | 81 | 400 | 7 |
| HS100L2-2 | 4 | 5.5 | 2850 | 0.86 | 82 | 400 | 8.5 |
| HS100M1-2 | 4 | 5.5 | 2830 | 0.84 | 82 | 400 | 9.4 |
| HS112M2-2 | 5.5 | 7.5 | 2840 | 0.85 | 83 | 400 | 11.7 |
| HS132S1-2 | 5.5 | 7.5 | 2890 | 0.86 | 84 | 400 | 11.6 |
| HS132S2-2 | 7.5 | 10 | 2900 | 0.86 | 84 | 400 | 15.4 |
| HS132M1-2 | 11 | 15 | 2920 | 0.88 | 86 | 400 | 21.8 |
| HS132M2-2 | 15 | 20 | 2920 | 0.88 | 86 | 400 | 29.3 |
| HS160M1-2 | 15 | 20 | 2920 | 0.87 | 88 | 400 | 28 |
| HS160M2-2 | 18.5 | 25 | 2920 | 0.87 | 89 | 400 | 34 |
| HS160M3-2 | 22 | 30 | 2920 | 0.87 | 89.2 | 400 | 41 |
Installation Dimensions
| FRAME | FLANGE M | FLANGE N | FLANGE S | A | AC | B | H | HC | L | K |
|---|---|---|---|---|---|---|---|---|---|---|
| 90L | 75/87 | 90/61 | 7/9 | 140 | 175 | 125 | 90 | 220 | 270 | 9.5 |
| 100L | 75/87 | 90/61 | 7/9 | 160 | 196 | 140 | 100 | 240 | 315 | 11 |
| 112M | 75/87 | 90/61 | 7/9 | 190 | 220 | 140 | 132 | 275 | 330 | 11 |
| 132S | 87 | 61 | 9 | 216 | 254 | 140 | 132 | 320 | 370 | 12 |
| 132M | 87 | 61 | 9 | 216 | 254 | 178 | 132 | 320 | 409 | 12 |
| 160M | 87 | 61 | 9 | 254 | 310 | 210 | 160 | 410 | 498 | 14.5 |
Warranty & Certification
3-year warranty from shipped on board date. During the guarantee period, we provide free replacement for problems caused by production quality or materials, excluding damage from incorrect operation. Cost-effective spare parts available after warranty expiration.
Frequently Asked Questions
What's the MOQ?
A trial sample order is acceptable.
Are you a factory or trading company?
We are the manufacturer with over 15 years of experience in motor production.
Can you accept using our logo?
Yes, we provide OEM services for custom branding.
How can I get the sample?
We typically recommend express shipping for samples.
What's the warranty period?
3 years from the shipped on board date.
What are your terms of payment?
30% advance payment, balance due before shipment.
