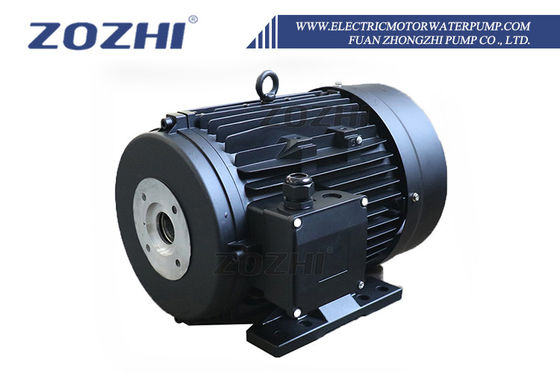

5.5kw Hollow Shaft Motor 2 Pole 4 Pole Asynchronous Electric Motor 380v 440v Flange Mount Ideal for High Pressure Pump

  • 5.5kw Hollow Shaft Motor 2 Pole 4 Pole Asynchronous Electric Motor 380v 440v Flange Mount Ideal for High Pressure Pump
  • 5.5kw Hollow Shaft Motor 2 Pole 4 Pole Asynchronous Electric Motor 380v 440v Flange Mount Ideal for High Pressure Pump
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number HS160L3-4
Minimum Order Quantity 1pc
Price USD550-USD700
Packaging Details Packed in veneer case
Delivery Time 15 working days after received your payment
Payment Terms L/C, T/T, Western Union, Alipay,Wechat,Credit Card
Supply Ability 10000pcs/month
Product Details
Product Name Hollow Shaft Motor Application Pressure Washer Machine
Power Range 22KW/30HP V.& Hz 220/380V 50Hz
Flange Size 87/61mm Hollow Shaft D. 24mm
Housing Die Cast Aluminum Insulation Class F Or H
Protection IP55 Or IP65 Bearing Two Bearings
Highlight

5.5kw hollow shaft motor 380v

,

hollow shaft motor 2 pole

,

asynchronous electric motor for high pressure pump
Leave a Message
Product Description
5.5kW Hollow Shaft Motor for High Pressure Pumps
HS Series 3-phase asynchronous electric motor with hollow shaft design, available in 2-pole, 4-pole, and 6-pole configurations. Specifically engineered for direct coupling with high-pressure pumps to reduce machine footprint while delivering reliable, cost-efficient operation.
Technical Specifications
Power Supply: 220V/380V/440V
Power Rating: 5.5kW (7.5HP) - 22kW (30HP) available
Speed: 1400 RPM (4-pole)
Female Shaft: 24mm Outer Diameter
Mounting: M/M: 87/61mm
Flange: B34 Face Flange
IEC Frame: 160
Material: Aluminum Construction
Applications
Ideal for pressure cleaners and industrial washing plants. The direct coupling configuration between motor and high-pressure pump significantly reduces overall machine size while providing reliable, cost-efficient operation. Compatible with most pumps on the market through our wide range of available flanges and shafts.
Industrial motor integrated with pressure cleaning system
Key Advantages
  • High Efficiency: Premium materials ensuring 100% power output
  • Proven Reliability: Excellent customer feedback and field performance
  • Customization: Comprehensive OEM & ODM services available
  • Direct Manufacturer: 24-hour online technical support
  • 3-Year Warranty: Minimal after-service requirements
  • Fast Delivery: 7-day shipment from stock materials
Related Products
Hollow Shaft Three Phase Motor
Hollow Shaft Motor - Three Phase
Hollow Shaft Single Phase Motor
Hollow Shaft Motor - Single Phase
Solid Shaft Three Phase Motor
Solid Shaft Motor - 3 Phase
Solid Shaft Mono Phase Motor
Solid Shaft Motor - Mono Phase
AC Induction Single-Phase Motor
Solid Shaft AC Induction Single-Phase Motor
Electric Centrifugal Switch for Single Phase Motor
Electric Centrifugal Switch for Single Phase Motor
Manufacturing Capability
Modern motor manufacturing facility with advanced equipment
Technical Data - Three-Phase Hollow Shaft Motor 400V 50Hz
FRAME POWER K.W. POWER HP RPM COS φ EFF.% VOLT V AMPERE A
HS90L1-22.2328200.86784004.9
HS90L2-23428200.86784006.6
HS90L3-23.7528200.80834008.6
HS100L1-23428400.83814007
HS100L2-245.528500.86824008.5
HS100M1-245.528300.84824009.4
HS112M2-25.57.528400.858340011.7
HS132S1-25.57.528900.868440011.6
HS132S2-27.51029000.868440015.4
HS132M1-2111529200.888640021.8
HS132M2-2152029200.888640029.3
HS160M1-2152029200.878840028
HS160M2-218.52529200.878940034
HS160M3-2223029200.8789.240041
Installation Dimensions
Motor installation dimension diagram with detailed measurements
FRAME FLANGE M FLANGE N FLANGE S FRAME A FRAME AC FRAME B FRAME H FRAME HC FRAME L FRAME K
90L75/8790/617/9140175125902202709.5
100L75/8790/617/916019614010024031511
112M75/8790/617/919022014013227533011
132S8761921625414013232037012
132M8761921625417813232040912
160M8761925431021016041049814.5
Warranty & Support
3-year guarantee from shipped on board date. During the guarantee period, we provide free replacement of easy-damaged spare parts for problems caused by production quality or raw materials. Excludes damage from incorrect customer operation. After expiration, cost-effective spare parts remain available for maintenance.
Quality Certifications
Industry certifications and quality standards compliance
Frequently Asked Questions
What's the MOQ?
Trial sample orders are acceptable.

Are you a factory or trading company?
We are the manufacturer with over 15 years of motor expertise.

Can you accept using our logo?
Yes, we provide comprehensive OEM services.

How can I get the sample?
We typically recommend express delivery for samples.

What's the warranty period?
3 years from shipped on board date.

What are your terms of payment?
30% advance payment, balance before shipment.
