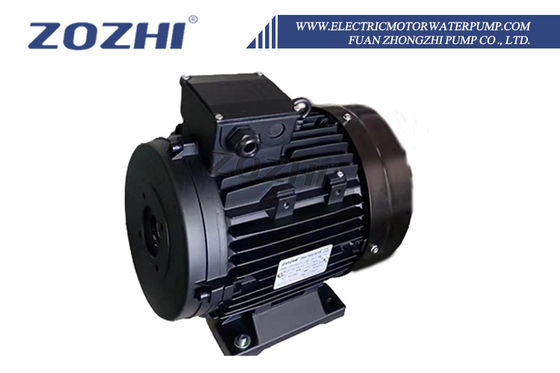

ZOZHI 5.5kw 3 Phase 380v 220V Electric Motor Three Phase Induction Motor With Hollow Shaft
| Place of Origin | FUAN CHINA |
|---|---|
| Brand Name | ZOZHI |
| Certification | CE,ISO |
| Model Number | HS160L3-4 |
| Minimum Order Quantity | 1pc |
| Price | USD550-USD700 |
| Packaging Details | Packed in veneer case |
| Delivery Time | 15 working days after received your payment |
| Payment Terms | L/C, T/T, Western Union, Alipay,Wechat,Credit Card |
| Supply Ability | 10000pcs/month |
Product Details
| Product Name | Hollow Shaft Motor | Application | Pressure Washer Machine |
|---|---|---|---|
| Power Range | 22KW/30HP | V.& Hz | 220/380V 50Hz |
| Flange Size | 87/61mm | Hollow Shaft D. | 24mm |
| Housing | Die Cast Aluminum | Insulation Class | F Or H |
| Protection | IP55 Or IP65 | Bearing | Two Bearings |
| Highlight | 5.5kw three phase induction motor,380v hollow shaft electric motor,220v three phase motor with hollow shaft |
||
Product Description
ZOZHI 5.5kW 3 Phase 380V/220V Hollow Shaft Electric Motor
Product Overview
HS Series High-Efficiency Hollow Shaft Motor designed for continuous operation in elevators, escalators, automated guided vehicles, and high-pressure pump applications. Features IE2 efficiency standards with flange mounting for direct coupling applications.
Specifications
- Model: HS Series Asynchronous Electric 5.5kW Hollow Shaft Motor
- Configurations: Available in 2-pole, 4-pole, and 6-pole configurations
- Supply Voltage: 220V/380V
- Power: 30HP/22kW
- RPM: 1400
- Female Shaft: 24mm (Outer Diameter)
- M/M: 87/61mm
- Flange: B34 Face Flange
- IEC Frame: 160
- Material: Aluminum
Applications
The direct coupling between the motor and high-pressure pump makes this motor ideal for pressure cleaners and washing plants. This configuration significantly reduces the machine's overall size and provides a reliable, cost-efficient solution. Our wide range of flanges and shafts are suitable for direct coupling with most pumps on the market.
Key Advantages
- High-Efficiency Motor with 100% output using high-standard materials
- Popular motor design with excellent customer feedback
- OEM & ODM customized services available
- Direct manufacturer with 24-hour online support
- 3-year comprehensive warranty
- 7-day shipment with stock materials
Related Products
Hollow Shaft Motor Three Phase
Hollow Shaft Motor Single Phase
Solid Shaft Motor 3 Phase
Solid Shaft Motor Mono Phase
Solid Shaft AC Induction Single-Phase Motor
Electric Centrifugal Switch for Single Phase Motor
Manufacturing Facility
Customer Feedback
Technical Data
Three-Phase Hollow Shaft Motor 400V 50Hz (IE1/IE2/IE3)
| FRAME | POWER | RPM | COS φ | EFF.% | VOLT | AMPERE | |
|---|---|---|---|---|---|---|---|
| K.W. | HP | P.F. | V | A | |||
| HS90L1-2 | 2.2 | 3 | 2820 | 0.86 | 78 | 400 | 4.9 |
| HS90L2-2 | 3 | 4 | 2820 | 0.86 | 78 | 400 | 6.6 |
| HS90L3-2 | 3.7 | 5 | 2820 | 0.80 | 83 | 400 | 8.6 |
| HS100L1-2 | 3 | 4 | 2840 | 0.83 | 81 | 400 | 7 |
| HS100L2-2 | 4 | 5.5 | 2850 | 0.86 | 82 | 400 | 8.5 |
| HS100M1-2 | 4 | 5.5 | 2830 | 0.84 | 82 | 400 | 9.4 |
| HS112M2-2 | 5.5 | 7.5 | 2840 | 0.85 | 83 | 400 | 11.7 |
| HS132S1-2 | 5.5 | 7.5 | 2890 | 0.86 | 84 | 400 | 11.6 |
| HS132S2-2 | 7.5 | 10 | 2900 | 0.86 | 84 | 400 | 15.4 |
| HS132M1-2 | 11 | 15 | 2920 | 0.88 | 86 | 400 | 21.8 |
| HS132M2-2 | 15 | 20 | 2920 | 0.88 | 86 | 400 | 29.3 |
| HS160M1-2 | 15 | 20 | 2920 | 0.87 | 88 | 400 | 28 |
| HS160M2-2 | 18.5 | 25 | 2920 | 0.87 | 89 | 400 | 34 |
| HS160M3-2 | 22 | 30 | 2920 | 0.87 | 89.2 | 400 | 41 |
Installation Dimensions
| FRAME | FLANGE | FRAME | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| M | N | S | A | AC | B | H | HC | L | K | |
| 90L | 75/87 | 90/61 | 7/9 | 140 | 175 | 125 | 90 | 220 | 270 | 9.5 |
| 100L | 75/87 | 90/61 | 7/9 | 160 | 196 | 140 | 100 | 240 | 315 | 11 |
| 112M | 75/87 | 90/61 | 7/9 | 190 | 220 | 140 | 132 | 275 | 330 | 11 |
| 132S | 87 | 61 | 9 | 216 | 254 | 140 | 132 | 320 | 370 | 12 |
| 132M | 87 | 61 | 9 | 216 | 254 | 178 | 132 | 320 | 409 | 12 |
| 160M | 87 | 61 | 9 | 254 | 310 | 210 | 160 | 410 | 498 | 14.5 |
Warranty & Support
3-year guarantee from shipped on board date. During the guarantee period, we provide free replacement for spare parts damaged due to production or material quality issues (excluding damage caused by incorrect customer operation). After warranty expiration, we continue to provide cost-effective spare parts for maintenance.
Quality Certification
Frequently Asked Questions
- What's the MOQ? A trial sample order is acceptable.
- Are you a factory or trading company? We are a manufacturer with over 15 years of experience in motor production.
- Can you accept using our logo? Yes, we provide OEM services.
- How can I get the sample? We typically suggest express delivery for samples.
- What's the warranty period? 3 years from shipped on board date.
- What are your terms of payment? 30% advance payment, balance before shipment.
